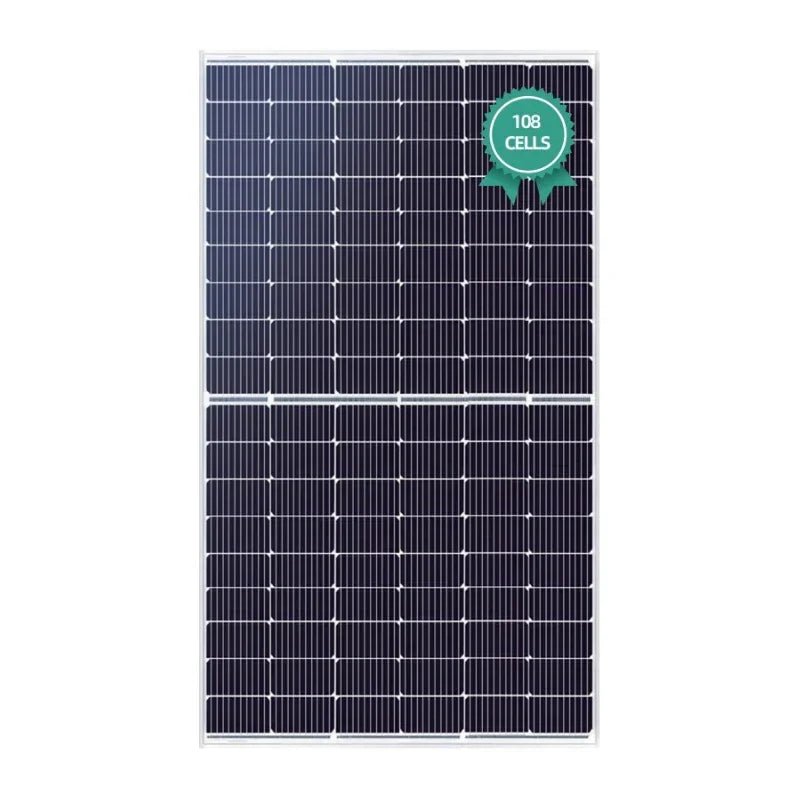

Phono Solar 440W Draco Series N-Type Bifacial Solar Panel (36 per pallet) PS440M8GFH-18/VNHB

Phonosolar 440W Draco Series 108 1/2 Cells Black Bifacial N Type Mono Black 30mm Frame Module (36 per pallet)

The Phono Solar 440W N-Type Bifacial module is a high-performance solar panel designed to deliver strong energy output, long-term reliability, and excellent durability in real-world conditions.

Built with advanced N-Type TOPCon cell technology, this panel produces 440 watts of power with an impressive 22.53% efficiency rating. Its bifacial design allows it to capture sunlight from both the front and the rear side, generating up to 30% additional energy when installed over reflective surfaces such as light-colored roofs, concrete, or ground-mount systems.

Stronger Performance Over Time

Unlike conventional panels, this N-Type module experiences:

• Zero Light-Induced Degradation (LID)

• Excellent resistance to Potential-Induced Degradation (PID)

• Less than 1% power loss in the first year

• Only 0.4% annual degradation over 30 years

This means more consistent energy production and better long-term return on investment.

Built for Harsh Environments

The dual-glass construction uses 1.6mm tempered glass on both sides, providing added strength and protection against:

• Heavy snow loads

• Strong winds

• High humidity

• Dust and coastal conditions

A 30mm anodized aluminum frame and an IP68-rated junction box ensure reliable operation in demanding installations.

Excellent Temperature Performance

With a low temperature coefficient (-0.29%/°C), the panel maintains stable energy output even in hot climates, making it suitable for residential, commercial, and utility-scale projects.

Technical Overview

• Model: PS440M8GF-18/VNH

• Rated Power: 440W

• Efficiency: 22.53%

• Power Tolerance: 0 ~ +3%

• 108 N-Type Monocrystalline Cells

• Bifaciality: 80% ±5%

• Maximum System Voltage: 1500V DC

• Dimensions: 67.8 × 44.6 × 1.18 inches

• Weight: 46.3 lbs

Ideal Applications

This panel is well-suited for:

• Residential rooftop systems

• Commercial rooftops

• Ground-mount installations

• Building-Integrated PV (BIPV)

• Coastal or high-humidity regions

Certifications

Certified to IEC 61215 and IEC 61730 standards, and manufactured under ISO 9001, ISO 14001, and ISO 45001 quality systems.

The Phono Solar 440W N-Type Bifacial panel combines high efficiency, extra energy from bifacial gain, and durable dual-glass construction — making it a reliable choice for long-term solar performance.
