– 1000 Watt-hours of electricity per dayοΌ5-6 hours of direct sunlight
– 10-year workmanship warranty, 25-year 80% output warranty.
– 9 bus-bars and PERC cell technology optimize overall efficiency.
– Half-cut cells and bypass diodes enhance accidental shading tolerance.
– Durable design ensures long-lasting use in challenging environments.
– Pre-drilled holes facilitate easy installation.
Reliable Electricity Output Performance
Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.
Advanced Solar Cells for Enhanced Efficiency
Renogy’s Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.

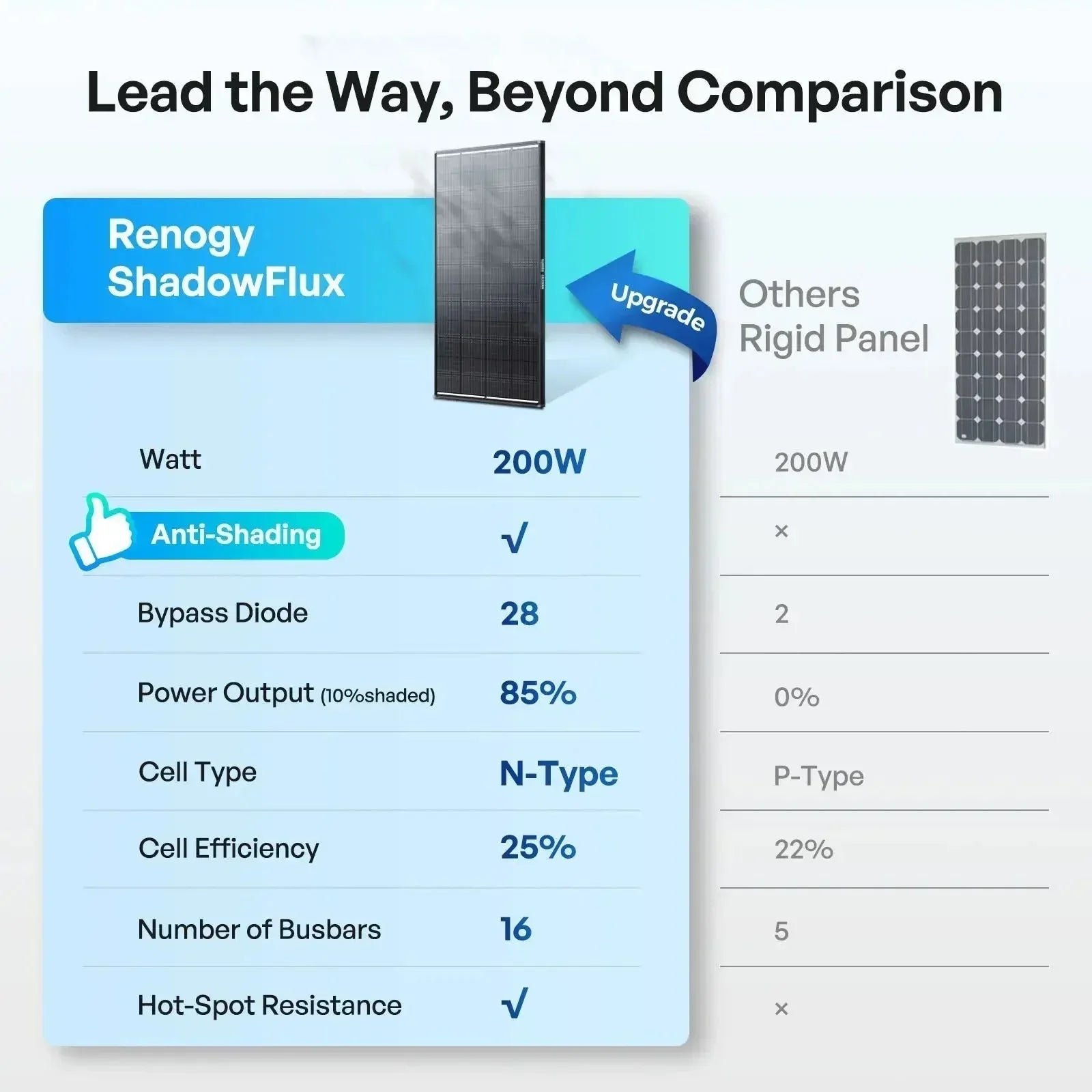

Consistent Solar Conversion under Accidental Shading
Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.
Β
Premium Quality
With superior construction, the panel is designed to withstand challenging environments, ensuring durable and long-lasting use.
Powerful Performance
Its exceptional capabilities in extreme weather ensures a remarkable performance for years to come.
Proven Reliability
Various tests guarantee a reliable and certified quality for dependable electricity output.

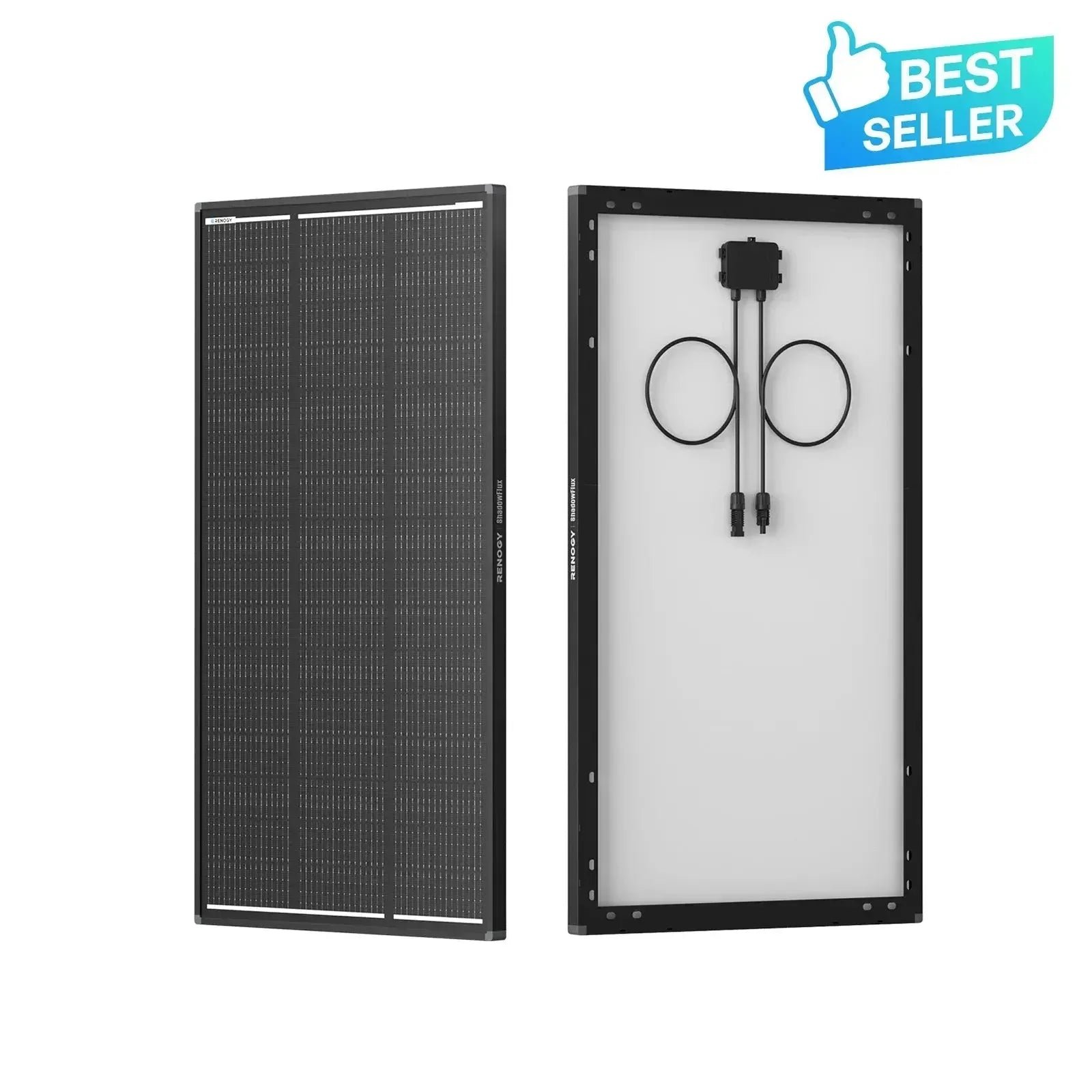

Pre-drilled holes for fast mounting and securing
It has pre-drilled holes on the back of the panel, which are also compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.
Sturdy and Reliable Packaging
Renogy panels are protected with extra thick corrugated cardboard and foam L brackets on all 4 corners.
Get an Answer within 24 Hours
We offer real-time professional sales and technical support in versatile ways to ensure your question is answered within one day.
Β
Β
| Specifications | Β |
|---|---|
| Max Power at STC:Β 200W | Open Circuit Voltage:Β 23V |
| Short Circuit Current:Β 11.05A | Optimum Operating Voltage:Β 19.2 V |
| Optimum Operating Current:Β 10.42 A | Operating Temperature:Β Β -40Β°F~194Β°FΒ / -40β~90β |
| Maximum System Voltage:Β 600 VDC UL | Maximum Series Fuse Rating:Β 20A |
| Output Cable:Β 13 AWG 2.6 ft (0.9m) long | Dimensions:Β 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm |
| Weight:Β 26.46 lb (12 kg) |
Solar Cells:Β 68 Cells (4*17)Β |
| Junction Box:Β IP65 | Connectors:Β Solar Connectors |
| Module Efficiency:Β 19.2% | Frame:Β Β Anodized Aluminium Alloy |
| Maximum Series Fuse Rating:Β 15A | Β |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate,Β 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
