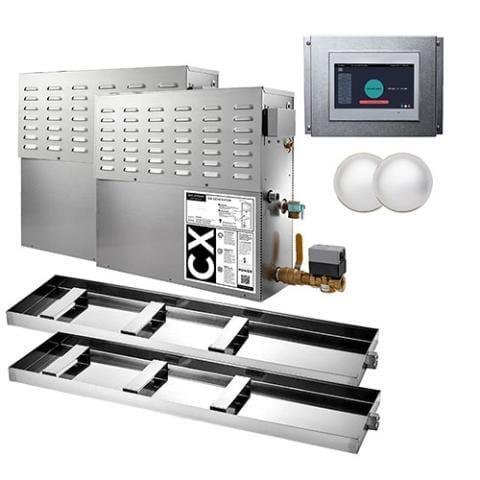

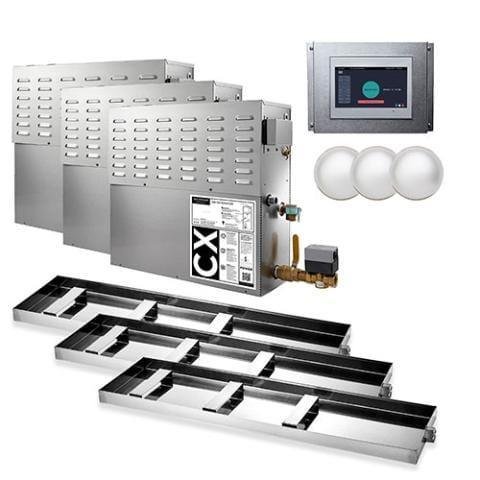

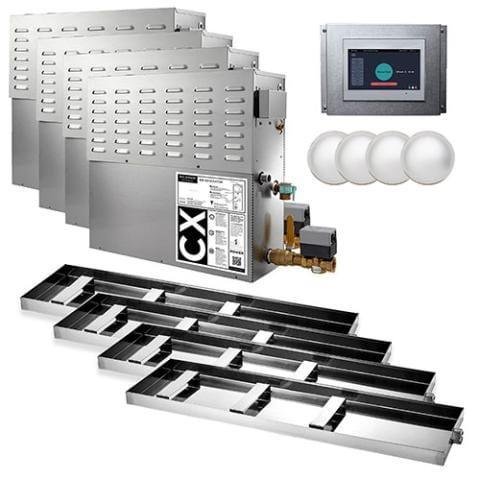

Mr.Steam CX Generator Package CX1250 thru CX5000 Health Club Steam Shower Generator Package
Description
The new CX Generator system is next generation steam power. Now, big things come in an impeccably designed, thoughtfully engineered, compact and concise unit. The CX Generator is innovation in action. Like an old main frame computer that took up an entire room but can now be held in a cell phone, the CX Generator is pure brawn, engineered for peak performance.
Features
CX Generator
- Industrial-grade, large diameter, serviceable heating element
- Electronic water-level control system
- Stainless steel jacket prolongs life
- Quieter than a pressurized system
- Program to preheat the steam room at the start of each day
- Internal temperature shut-off to prevent low water conditions and integral high water cut-off
- Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
- Compact size offers more flexibility with room design and straightforward installation
- All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
- Designed for commercial applications that require continuous or near continuous use so they are available to use all day
- Dimensions: 33.9″L x 7.9″W x 22″H (per Generator including factory-installed AutoFlush System)
CX Control
- 7” color touch screen control with menu driven user interface
- Easily set on/off time and view system status while the unit is running
- Controls multiple CX Generators in series
- Dimensions: 7.1″L x 1.6″W x 5.3″H
Commercial SteamHead
- Complete with polycarbonate Acrylic Shield
- Comes in a Polished Chrome finish
- No assembly of moving parts required
- Dimensions: 3.1”Diameter x 1.8”W

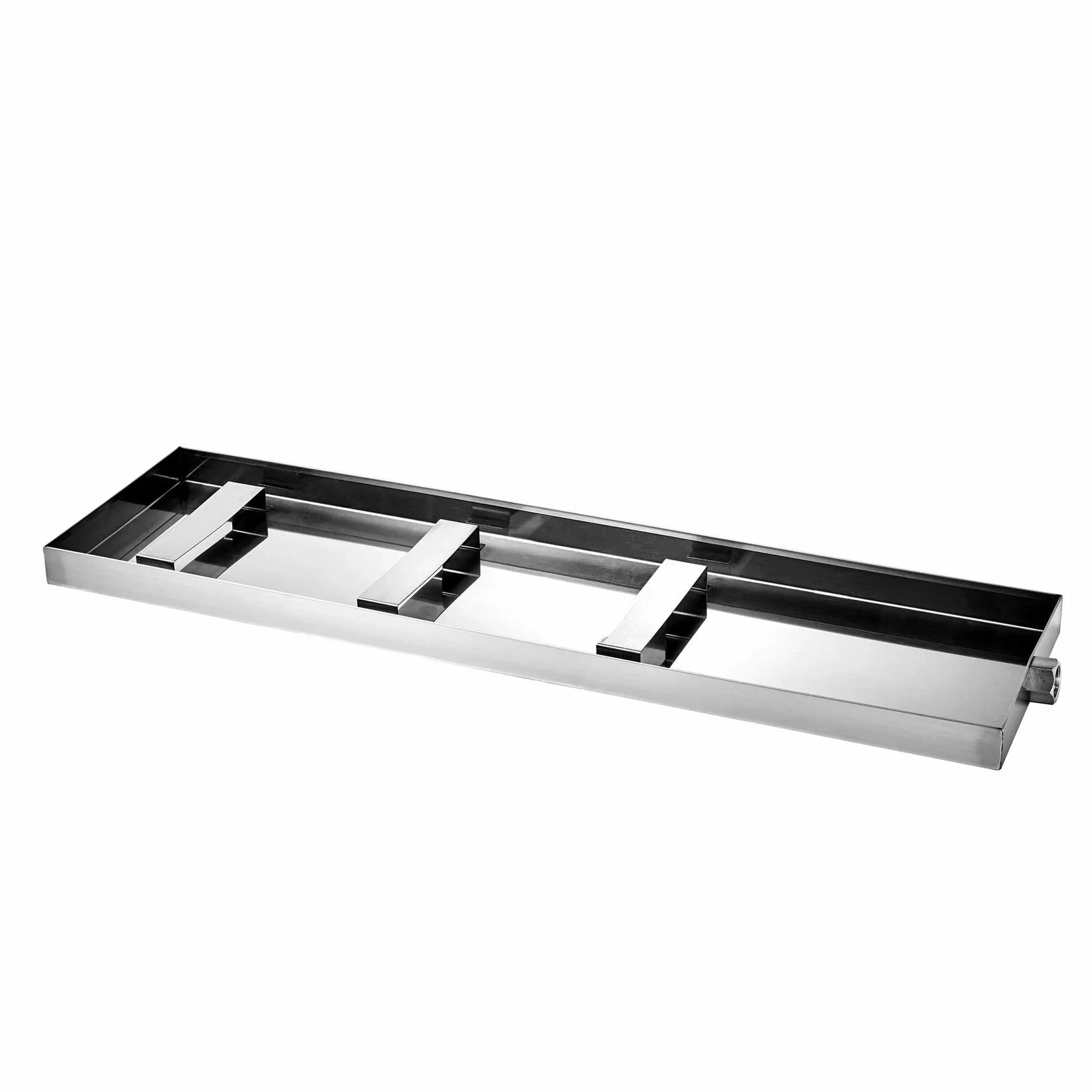

Condensation Pan
- Protects against potential water leaks
- Will trap and redirect the water to a predetermined area
- Goes on a solid level surface with steam generator placed inside
- Dimensions: 33″L x 1.5″W x 9″
Product Specifications
Mr.Steam CX Generator Package CX1250 thru CX5000 Health Club Steam Shower Generator Package Product Specifications
| Model | CX1250-CX5000 |
|---|---|
| Construction Material | Stainless Steel |
| Installation Type | Hardwired |
| Kilowatt Rating | 30kW-120kW |
| Wattage | 30000-120000 |
| Water Supply Connection | 3/8″ NPT |
| Drain Connection | 1″ NPT |
| Safety Valve Connection | 3/4″ NPT |
| Minimum Cubic Feet | 1001 |
| Maximum Cubic Feet | 5000 |
| Product Dimensions | 33.9″L x 7.9″W x 22″H (per Generator including factory-installed AutoFlush System) |
| Shipping Weight | 60 lbs (per Generator) |
What’s in the box?
CX Generator
- CX Generators
- CX1250
- CX1600-CX2500 (2)
- CX3000 (3)
- CX5000 (4)
- Installation and Operation Manual
- 1-Year Limited Warranty
CX Control
- CX Control
- CX1250
- CX1600-CX2500
- CX3000
- CX5000
- 1-Year Limited Warranty
Commercial SteamHead
- Commercial SteamHeads
- CX1250
- CX1600-CX2500 (2)
- CX3000 (3)
- CX5000 (4)
- 1-Year Limited Warranty
Condensation Pan
- Condensation Pans
- CX1250
- CX1600-CX2500 (2)
- CX3000 (3)
- CX5000 (4)
- 1-Year Limited Warranty
Product Manual
Mr.Steam CX Generator Package CX1250 thru CX5000 Health Club Steam Shower Generator Package Product Manual
Installation Manual
Mr. Steam CX Generator Installation Manual
Mr. Steam Planning Guide
Technical Specifications
Mr. Steam CX Generator Technical Specifications
Product Warranty
Mr. Steam Product Warranty
Product FAQs
