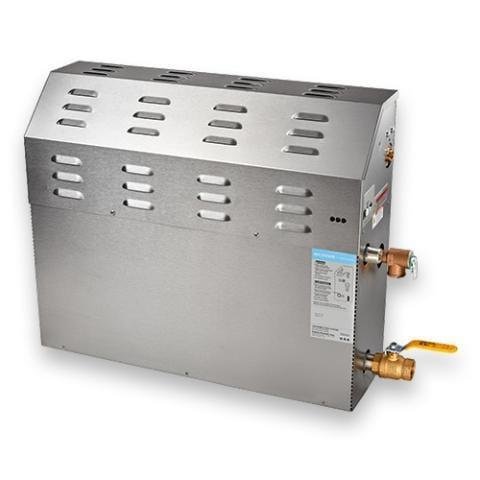

Mr.Steam MX4 MS MAX Series 20kW Steam Shower Generator
Description
Note: The Mr. Steam MX4E replaces the discontinued Mr. Steam MS SUPER 4E generator
Improving on the popular MS Super 4E, the MX4E is designed for home and day spa steam rooms up to 678 adjusted cubic feet (ACF). Required Control package sold separately.
The MS MX4E steam shower generator is constructed of durable stainless-steel throughout for years of safe, reliable, and efficient operation. The unit includes industrial-grade heating elements, a stainless-steel tank, ASME safety valve, electronic water-level control system, and a variety of other features.
Mr. Steam MX Series generators are engineered to provide the most consistent steam bathing experiences. The MX4E features the latest in steam bath technology and runs off an advanced microprocessor platform. The steam unit includes LED color indicators for easy-to-read self-diagnostics.
The MX4E generator features modular plug and play so that you may easily install steam shower accessories such as AromaTherapy, ChromaTherapy, and SteamLinx for a multisensory bathing experience.
The Mr. Steam MX4E 20kW steam generator is available in 208V and 240V single-phase (1PH) configurations. Mr. Steam MS-e Series generators are available in a variety of power ratings to best suit your needs.
The compact size of the generator allows the unit to be installed conveniently out of sight up to 60 feet away from the steam room. Typical installation locations include closets, vanities, and closets. The unit is perfect for any home steam shower kit.
The optional Express Steam feature is equipped with a built-in thermostat that maintains tank water temperature so that you may start steaming quickly.
The Mr. Steam MX4E generator requires the use of a Mr. Steam control or control package for operation. MS-e Series generators are compatible with all Mr. Steam controls and with the Steamlinx mobile app. Select the available control with features that best suit your bathing preference.
We recommend the available Mr. Steam AutoFlush Drain System with your MX4E steam shower unit. The Auto Drain automatically drains the generator tank after each use to help prevent sediment build-up and to ensure the best performance of the unit.
The MX4E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam MAX Series generators are US and Canadian UL listed and CE and NOM certified for your safety.
All Mr. Steam generators are designed, engineered, and crafted in America.
Features:
- For steam baths sized from 483 to 678 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
Includes:
- 20kW Steam bath generator, 27-5/8″ x 20-3/4″ x 7-7/8″
- Installation and operation manual
- Limited warranty
Product Specifications
Mr.Steam MX4 MS MAX Series 20kW Steam Shower Generator Product Specifications
| Model | MS MX4E |
|---|---|
| Minimum Adjusted Cubic Feet | 483 |
| Maximum Adjusted Cubic Feet | 678 |
| Shipping Weight (Lbs.) | 67 lbs |
| Kilowatt Rating (KW) | 20 KW |
| Electrical Specifications | (Refer to Installation Manual) |
| Water Supply Connection | 3/8″ NPT |
| Generator Steam Line Connection | 3/4″ NPT |
| Steam Head Connection | 1/2″ NPT |
| Drain Connection | 1″ NPT |
| Safety Relief Valve Connection | 3/4″ NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control “Rough In” Cut Out | 1″ |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30′, 8 Conductor, 24 AWG, Shielded Cable |
| Width | 27-5/8″ |
| Depth | 7-7/8″ |
| Height | 20-3/4″ |
Product Manual
Mr.Steam MX4 MS MAX Series 20kW Steam Shower Generator Product Manual
Installation & Operational Manual
Mr. Steam MX Series IOM.pdf
Specification Sheet
Mr. Steam MX Series Spec Sheet.pdf
Quick Set Up GuIde
Mr. Steam Quick Set up Guide.pdf
Product Warranty
MrSteam-Residential-Steambaths-Warranty-2023.pdf
Product FAQs
N/A
