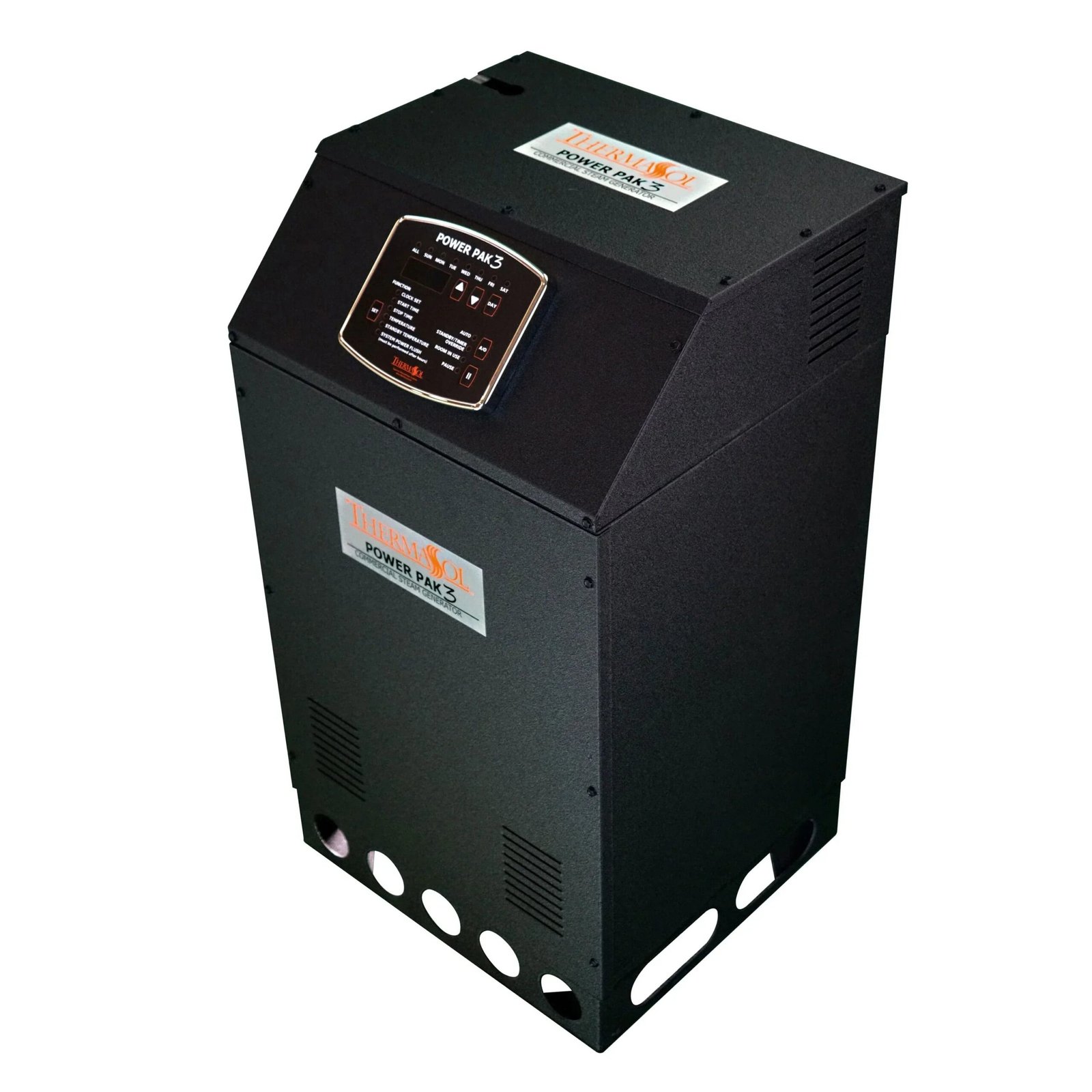

ThermaSol PowerPak Series III Commercial Steam Generator – 18SR-480
The ThermaSol PowerPak PP18SR is an 18kW small-room commercial steam shower generator designed for health club steam rooms up to 1000 cubic feet (CF). Thermasol has designed this with durability in mind by using a split tank design it enhances performance and lifespan.
This generator can be installed up to 50 feet from the steam room with no additional drain line required. The cleaning system uses the steam room drain making cleanup one less thing to worry about. Along with all access from front & top panel to give you ease with any service needed.
Includes
- PowerPak Series Generator
- Temperature Sensor & 50′ lead wire
- Polished Chrome Steam head
- Digital Timer & M8 cable
- Warranty
Features
- Delivered fully assembled
- Split tank design
- Can be located up to 50 feet from steam room
- No additional drain line required
- Stainless steel tank
- Corrosion resistance Incoloy heating elements
- All access from and top panel
- 18 month parts and labor warranty
Specifications
| Specification | Details |
|---|---|
| Model | PP18SR-480 |
| Input Voltage | 480VAC, 3-Phase |
| Kilowatt Rating | 18 kW |
| Maximum Amperage | 22 AMPS |
| Overcurrent Protection Size | 30 AMPS |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1″ NPT |
| Safety Valve | 3/4″ NPT |
| Electrical Connection | Hardwired |
Assembly and Maintenance
Warranty
GENERATORS
PRO Series, AF Series, and SSM Series Generators manufactured from June 1, 2007 – current
No warranty of any kind, expressed or implied is provided for PRO Series, AF Series and SSM Series Generators installed or used in any non-residential setting.
“In-Home” Limited Warranty
ThermaSol extends to the original purchaser a 2-year limited “In-Home” warranty to repair or replace (at its discretion) PRO Series generator parts found to have manufacturing defects, and to provide the necessary labor. 2-year limited “In-Home” warranty to repair or replace (at its discretion) AF Series and SSM Series generator parts found to have manufacturing defects, and to provide the necessary labor. After the “In-Home” Limited Warranty expires, the Lifetime – Factory Limited Warranty applies.
Lifetime – Factory Limited Warranty
ThermaSol will replace any defective parts for the life of the product and will cover the labor at the factory. The customer is responsible for the removal/installation and shipping to and from our factory in Round Rock, TX. ThermaSol guarantees all parts to be free from manufacturing defects in material and workmanship under normal use when installed in a residence only.
EXCLUSIONS
These warranties will be terminated by ThermaSol for the following reasons:
1. Improper installation, such as installation that fails to observe National/Local Plumbing and/or Electrical codes.
2. Use of a residential unit in a non-residential or commercial application, including a hotel.
3. Service to equipment by unauthorized personnel.
4. Installation that does not permit proper access for service.
5. Non-payment of repairs not covered under warranty.
6. Modification to any part of the unit.
7. Use of non-ThermaSol repair parts.
8. Alteration or removal of product serial number.
LIMITATIONS
1. ThermaSol will not be liable in any way for any indirect, special, incidental, exemplary, or consequential damages resulting from the sale, delivery, installation or use of its products. Users are responsible for suitability of the products for their application. Damage resulting from improper specification or application or other operating conditions beyond ThermaSol’s control is not under warranty.
2. ThermaSol will not exercise reasonable efforts in rendering service under these warranties, but shall not be liable for any damage arising out of delays; these warranties only cover the repair and/or replacement of ThermaSol product as specified by the warranty.
3. ThermaSol does not guarantee that a local service person will be available for in-home services. Unit may have to be removed and reinstalled at owner’s expense. It is the responsibility of the buyer to file a claim with the carrier/carriers for any product that has shipping damage to or from ThermaSol. An EVA (Evaluation Number) must be obtained from the factory and used on any correspondence or packages sent to the factory.
