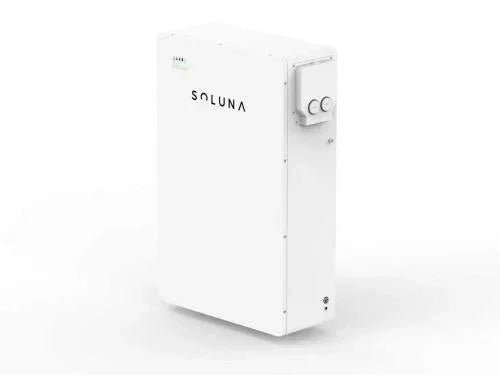

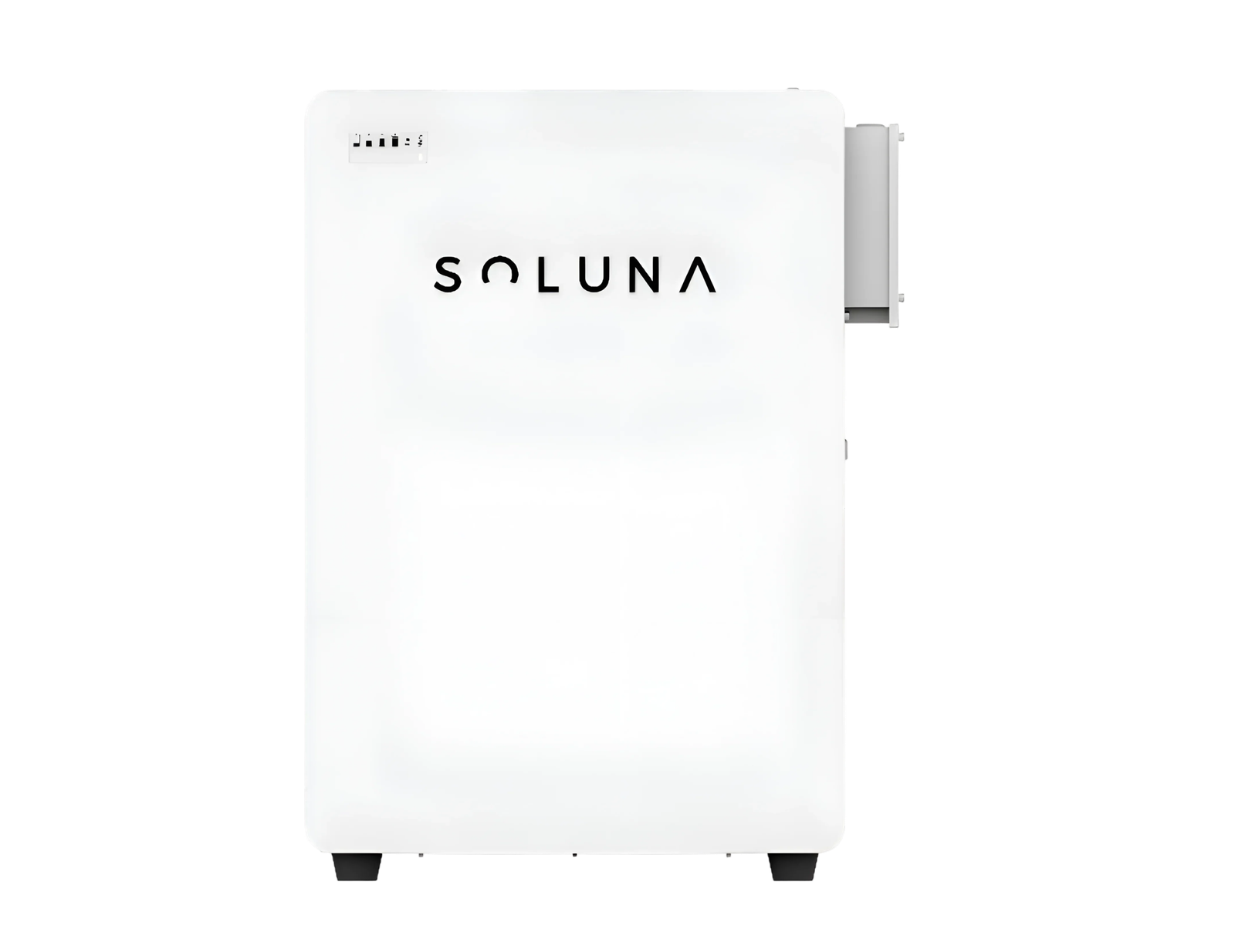

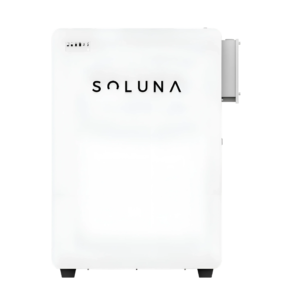

Soluna Venus 16K-20 LV Pack (IP65)
Soluna Venus 16K Pack LV is a battery solution ideal for residential and small commercial energy storage applications.
The model is adopted by the latest LiFePO4 technology with an intelligent BMS integrated in the fault protection for energy security, offering a capacity of 16kWhwhich can be installed in parallel up to 30 batteries allowing 480kWh of total storage.
With a 10-year warranty and 8000 cycle life, the Soluna Venus 16K Pack LV is a flexible, reliable and high performance battery storage solution.
PHYSICAL CHARACTERISTICS
-
- Height (mm): 850
- Width (mm): 545
- Depth (mm): 220
- Weight (kg): 127
- Installation: Floor-stand, Wall-mounted
-
OPERATING CONDITIONS
- Operating temperature (°C): -10 to 50
- Operating temperature (recommended) (°C): 15 to 30
- Storage temperature (recommended) (°C): -20 to 60
- Humidity conditions (%): 5 to 95
- Altitude (m): Max 2,000
- Cooling strategy: Natural convection
-
RELIABILITY AND CERTIFICATION
- Certification: TBD
- Transportation: UN38.3
- Ingress protection rating: IP 65
-
WARRANTY
- Product and performance: 10-year warranty
- Download Datasheet
