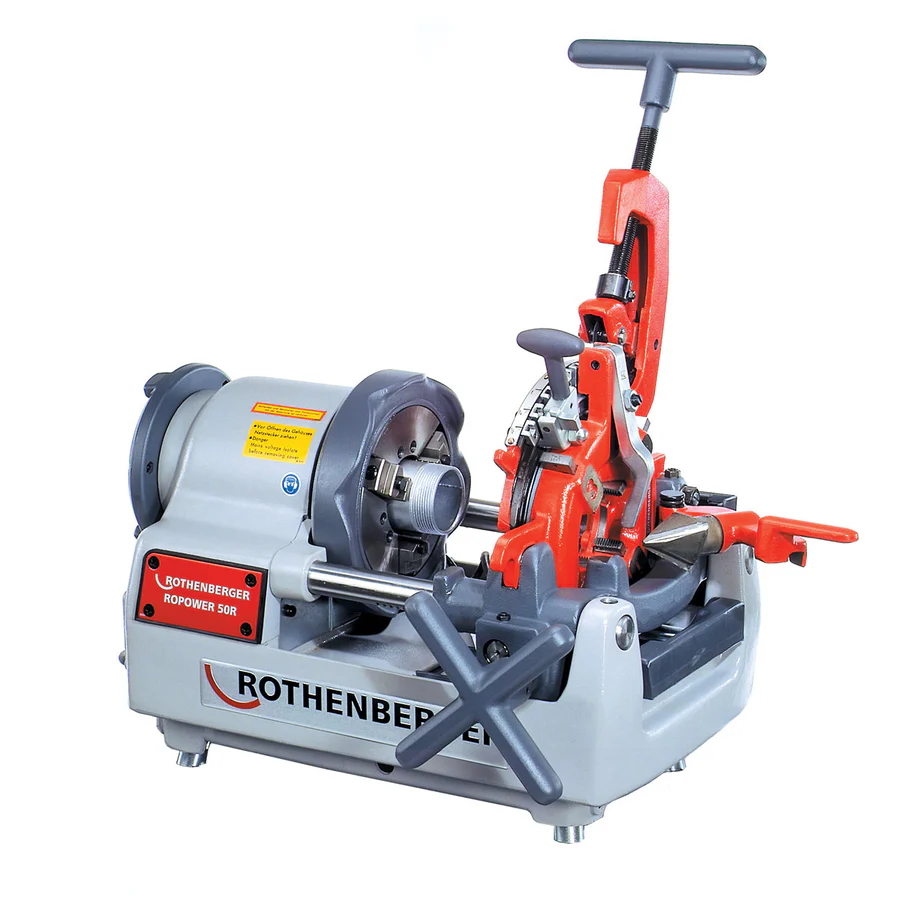

Rothenberger 63004 Description
Rothenberger’s portable 2″ threading machines offer fast and steady, precivison threading, cutting, de-burring, and grooving. The powerful 750-watt (1 HP) motor provides strong turning power with consisten torque for swift, effortless production of accurate, standard pope and bolt threads. The optional foldable, wheeled workbench makes transport easy, wether on site or in the workshop (Rothenberger 00230, Sold seperately). The SUPERTRONIC 2SE uses quick-change dies with a ball detent feature that makes aligning replacement dies in the die head fast and easy. The 2SE die head and dies are compatible with the SUPERTRONIC 4SE threading machine.
Rothenberger 63004 Features
- Tool / guide sled propulsion via turnstile – Finely Controlled Propulsion

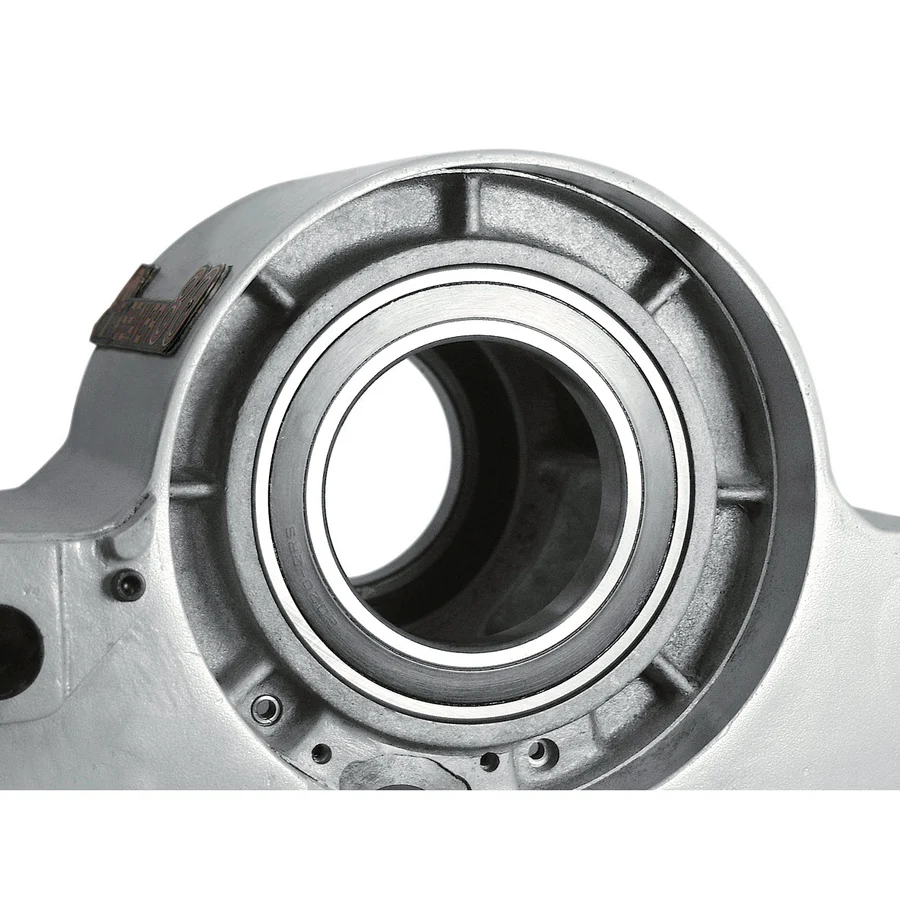

- Working spindle with closed bearings on both sides – Low Wear and precise guiding
- Dual-sided tool guide sled – Precise guiding of the die head
- Internal de-burring, snap in, 3-blade – Burr-free work
- Smooth action impact hammer chuck with maximal clamping force – No pipe slippage
- Modular system concept – Universal die head adaptor, optional in standard or automatic models
- Large shavings collection trough made of plastic – Easy to clean
- Sturdy oil pump with high flow power and adjustable fluid quantities, filter system integrated oil feed – Optimal lubrication and cooling

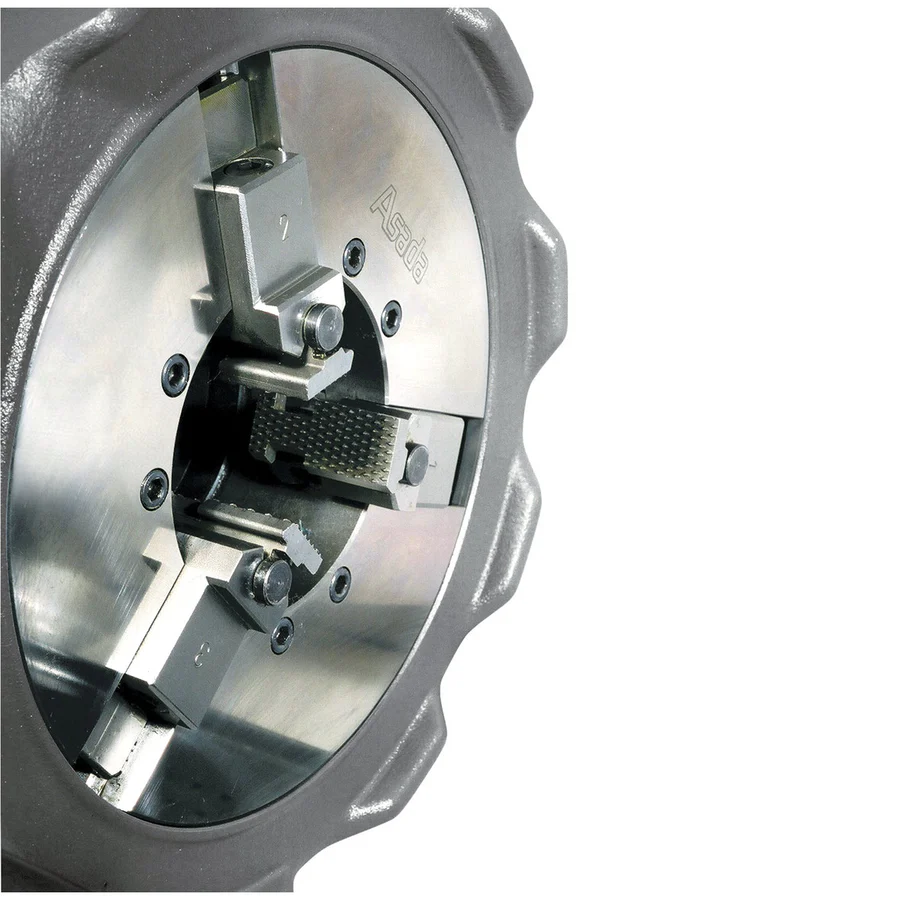

- Self-centering rear chuck – Axial alignment of the pipe
- Motor is double insulated for increased safety.
- Stable high torque motor provides constant power
- Offset spindle lubrication: Easy to maintain
- Geared oil pump with filter system and adjustable fluid level ensures constant oil flow
- Large plastic chip collection tray is easy to clean
- Machine slightly angled: Reduced oil consumption, oul moistening in pipe interior is avoided
- Folding wheeled stand sold seperately (Rothenberger 000230)
Rothenberger 63004 Specifications
| NPT Diameter | 1/4″ – 2″ Capacity |
| Motor Strength | 750 Watts (1 HP) |
| Speed | 40 RPM (No Load) |
| Dimensions | 21″ x 17″ x 13″ (L x W x H) |
