Ridgid 49298 Description

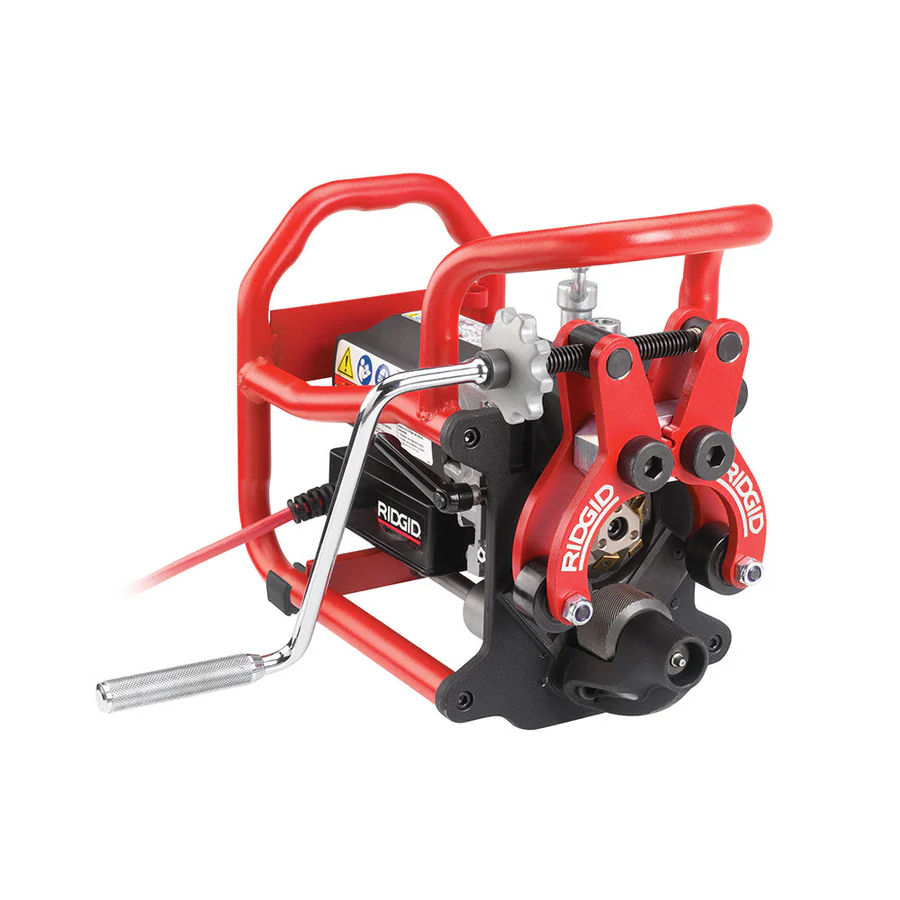

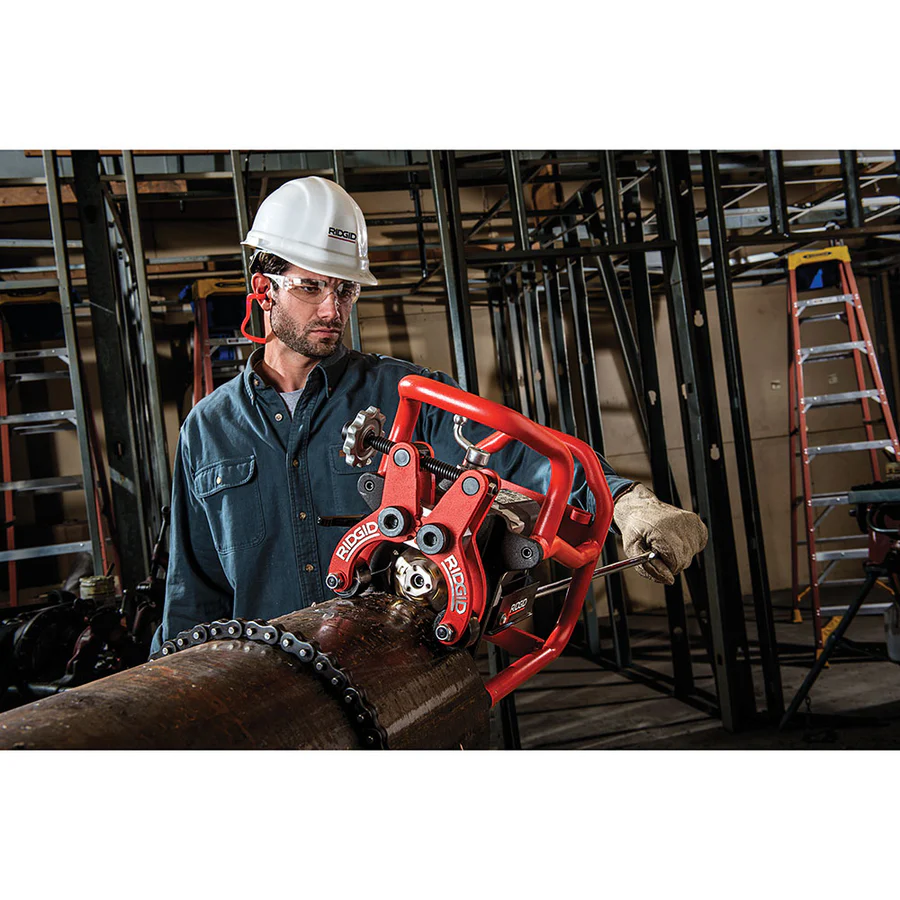

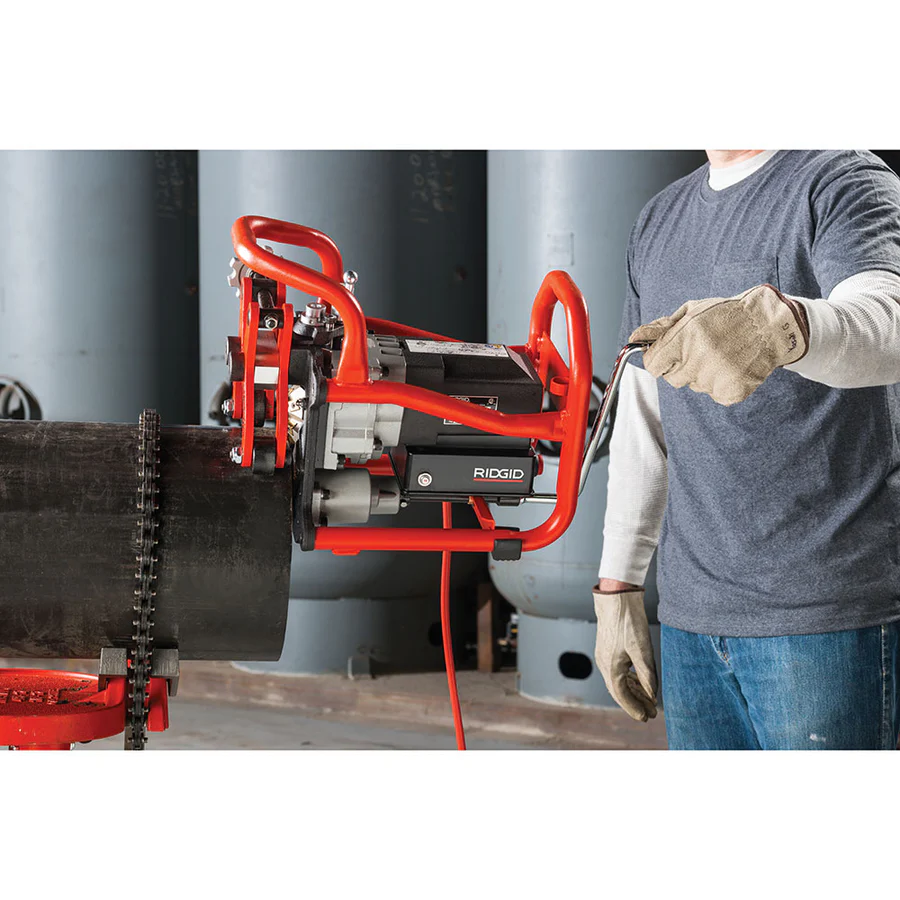

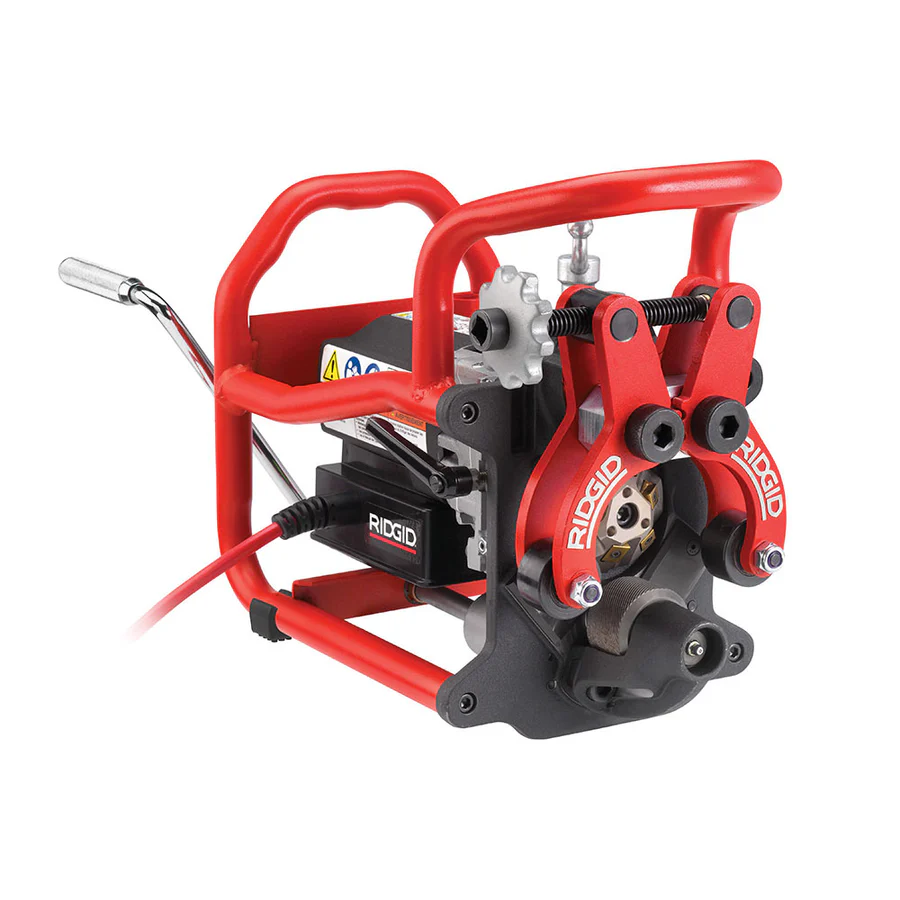

The B-500 Transportable Pipe Beveller produces high quality bevels in less than two minutes without flames or sparks. The compact design quickly mounts to pipe 4” and up with a maximum wall thickness of 1/2”, and creates consistent bevels in a single pass.
Ridgid 49298 Features
- Set-up And Bevel 12″ Diameter Schedule 40 Pipe In Under 2 Minutes!
- Pipe Is Cool To Touch Immediately Following Bevelling
- Accurate Bevel Angle Around Diameter Of The Pipe Allows For Optimal Number Of Cover Passes
- Adjustable Land Width From 0″ to 3/16″ To Fit Welders’ Requirements
- Produces A Machined Finish Due To 6 Replaceable Cutter Inserts Working Simultaneously
- Fast To Set-up And Operate

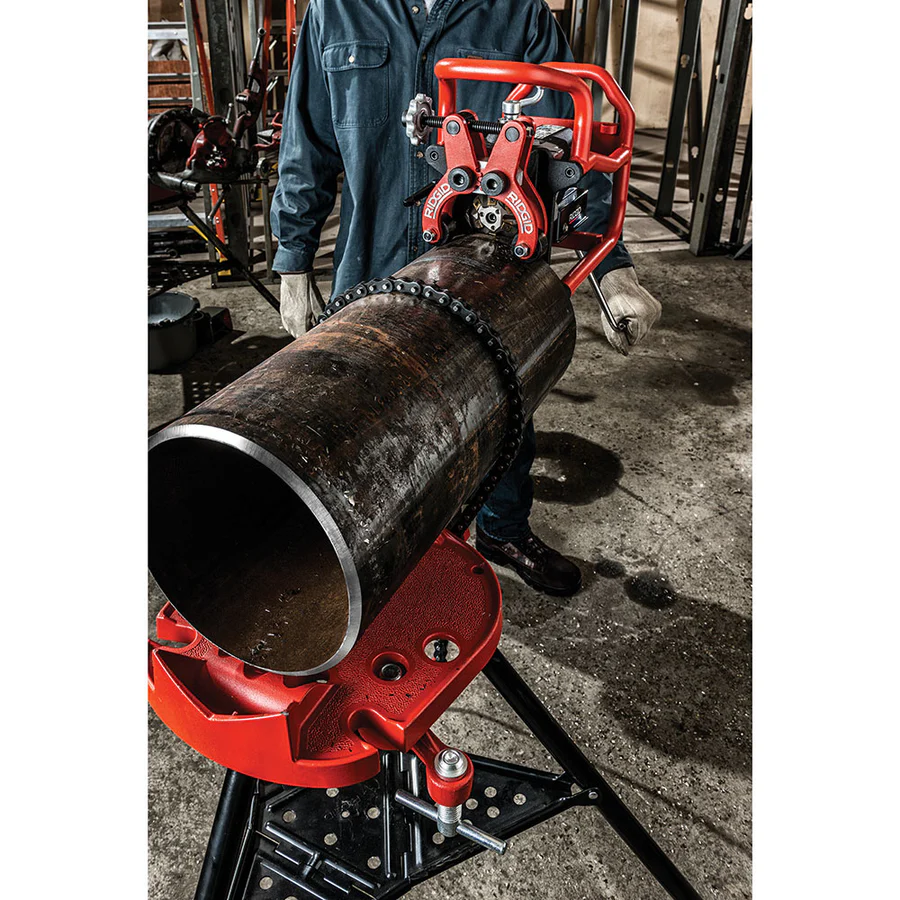

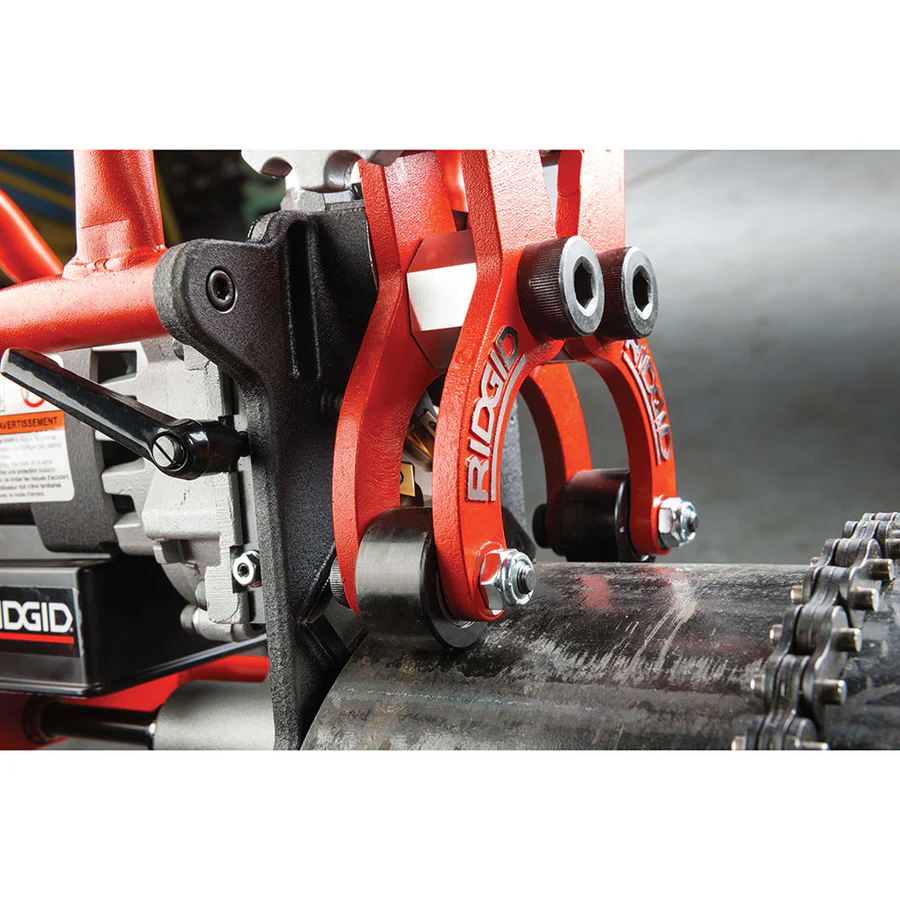

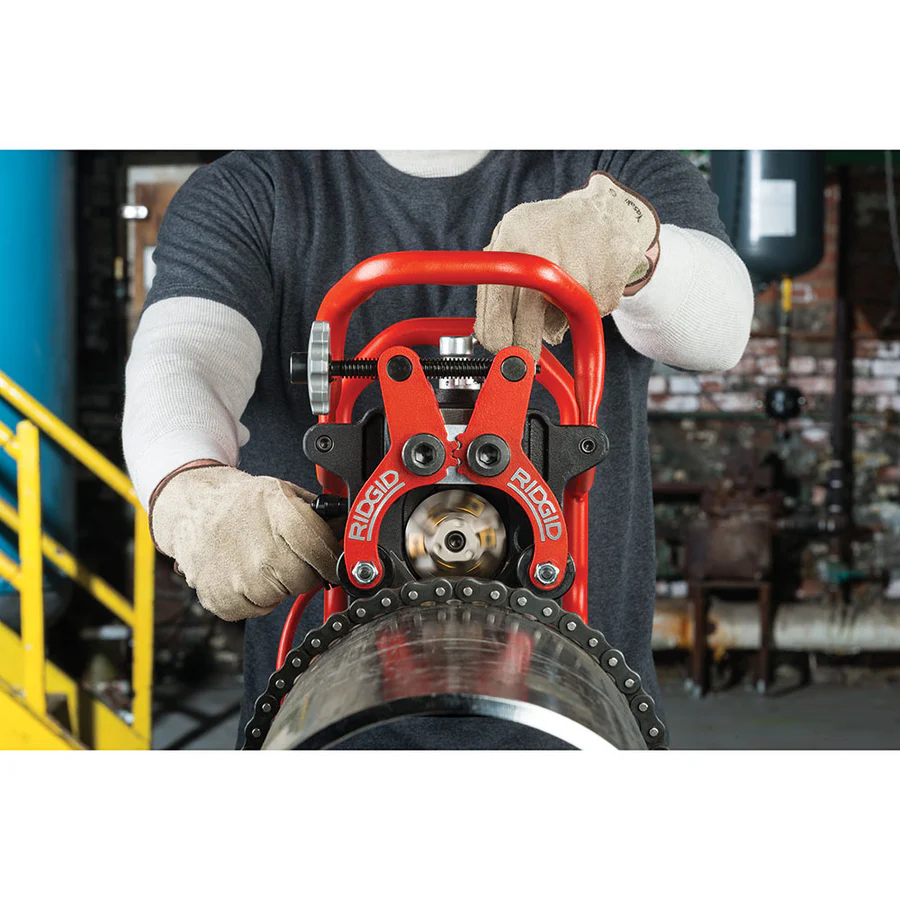

- Patent-Pending Clamp System Firmly Secures Tool To The Pipe
- Speed Monitoring With LED Indicators For Optimal Cutter Performance
- Spark Free Operation
Ridgid 49298 Specifications
| Capacity | 4″ Pipe and Larger, Flat Plate |
| Pipe Wall/Plate Thickness | Min 0.188 (4.8 mm)/Max 0.50 (12.7 mm) |
| Bevel Angles | 37.5 Degree (Standard – Included); 30 Degrees and 45 Degrees (with Optional Cutter Heads) |
| Cutter Head | Rated for Most & Stainless Steel |
| Weight | 52.5lbs (23.8 kg) Tool Weight |
| Size | 15.8 in. (401 mm) L x 11.5in (292 mm) W x 13.3in (338 mm) H |
| Land Width | 0″ – 3/16″ (4.8 mm) in approximately 1/32″ (0.8 mm) increments |
| Motor Type | Universal Single Phase |
| Motor Rating | 1.2 HP, 115V, 50/60Hz |
| Amps | 13A (115V) |
| Operating Speed | (No Load) 950 RPM (115V) |
| Body | Steel Frame |
| Standard Equipment | Beveller, Manual Crank Handle, 37 1/2° Cutter Head, 6 – 4 Edged Inserts, Torque Driver, and Screws |
