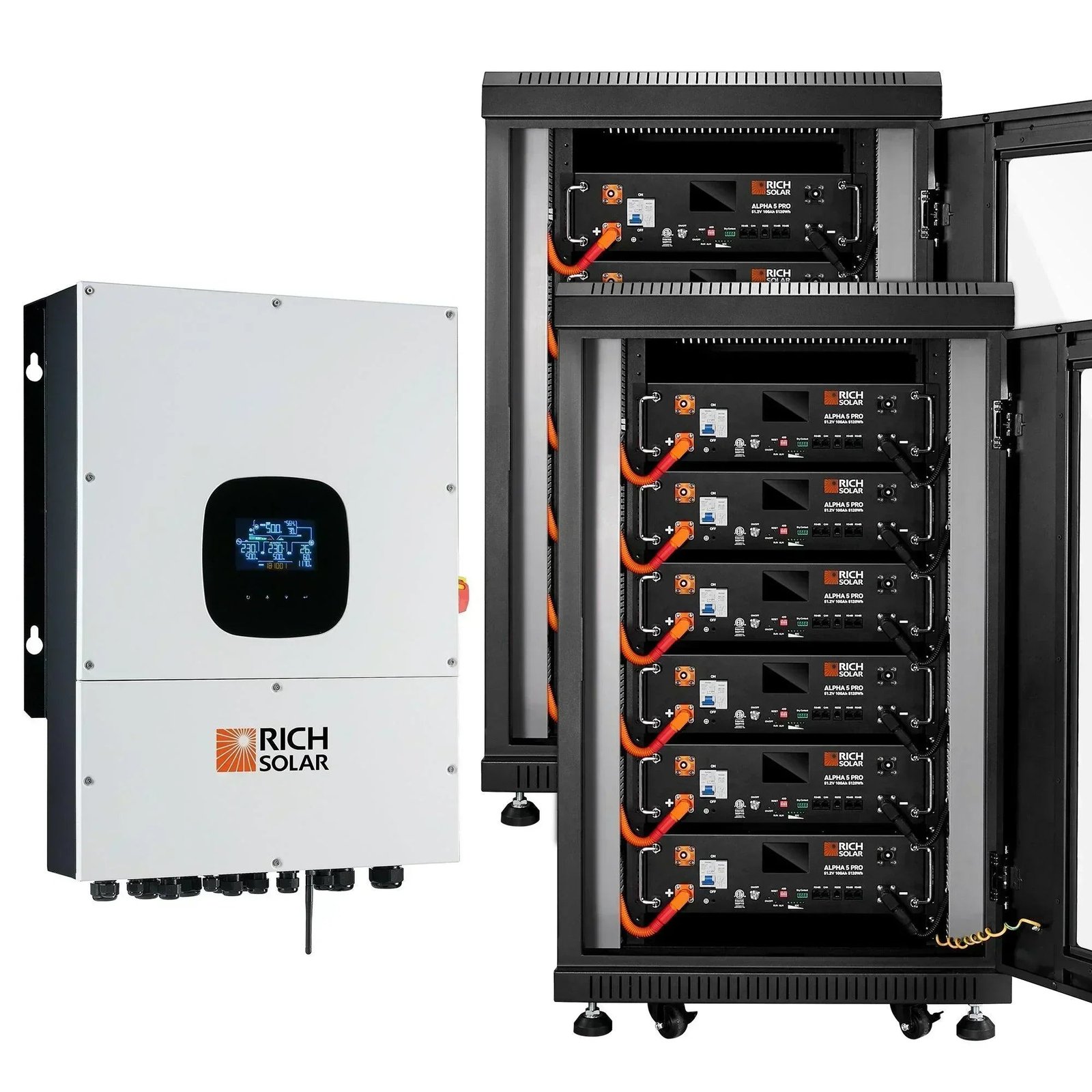

NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]
This kit includes:
- 1 x NOVA 12K PV Hybrid Inverter 12000W PV Input | 10000W Output | 48V 120/240V Split Phase (RS-H12K)
- 12 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)
- 2 x Free Battery Rack
-

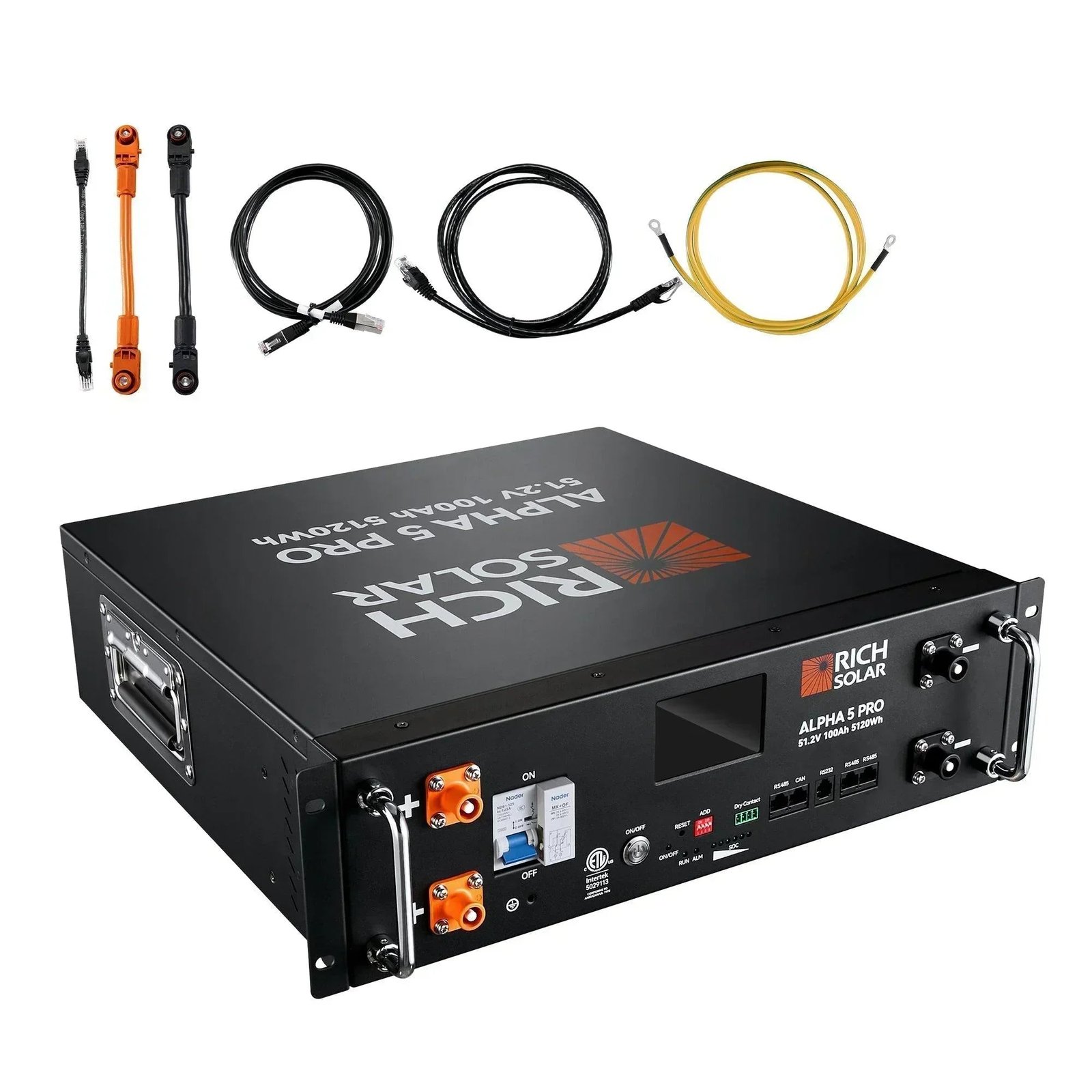

ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery
Features:
- Certification: UL1973, UL9540A, FCC
- 7,000 Deep Cycles Life
- 5120 Watt Hours Energy
- 100A Continuous Charge Current
- Compatible with multiple brands of inverters
- Low maintenance
- Over charging or discharging protection
- Overcurrent & short circuit protection
- Parallel up to 15 Batteries
- Connect in Parallel for Larger Capacity
- With Sophisticated Battery Management System (BMS)
- 10 Years Lifespan
Warranty:
- *10-Year Warranty
Specifications:
Electrical Specifications
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Minimum Capacity: 99.5Ah
- Nominal Capacity: 5120Wh
Operating Specifications
- Charging Voltage: 56V
- Discharging Cutoff Voltage: 44.8V
- Maximum Charging Current: 100A
- Continuous Charge Current: 100A
- Maximum Discharge Current: 100A
Physical Specifications
- Battery Dimensions: 17.7″L x 17.8″W x 5.2″H
- Battery Weight: 99.2 lb

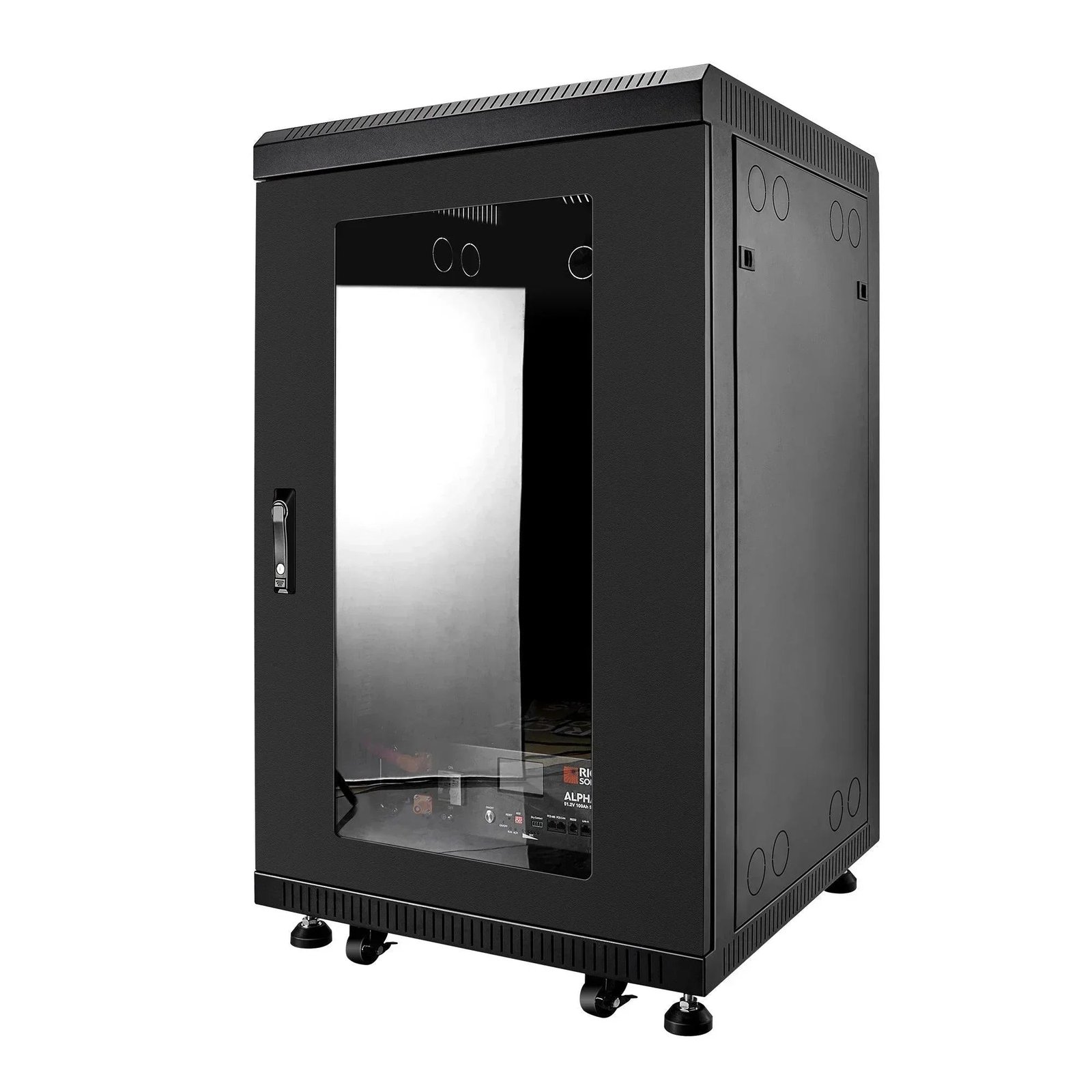

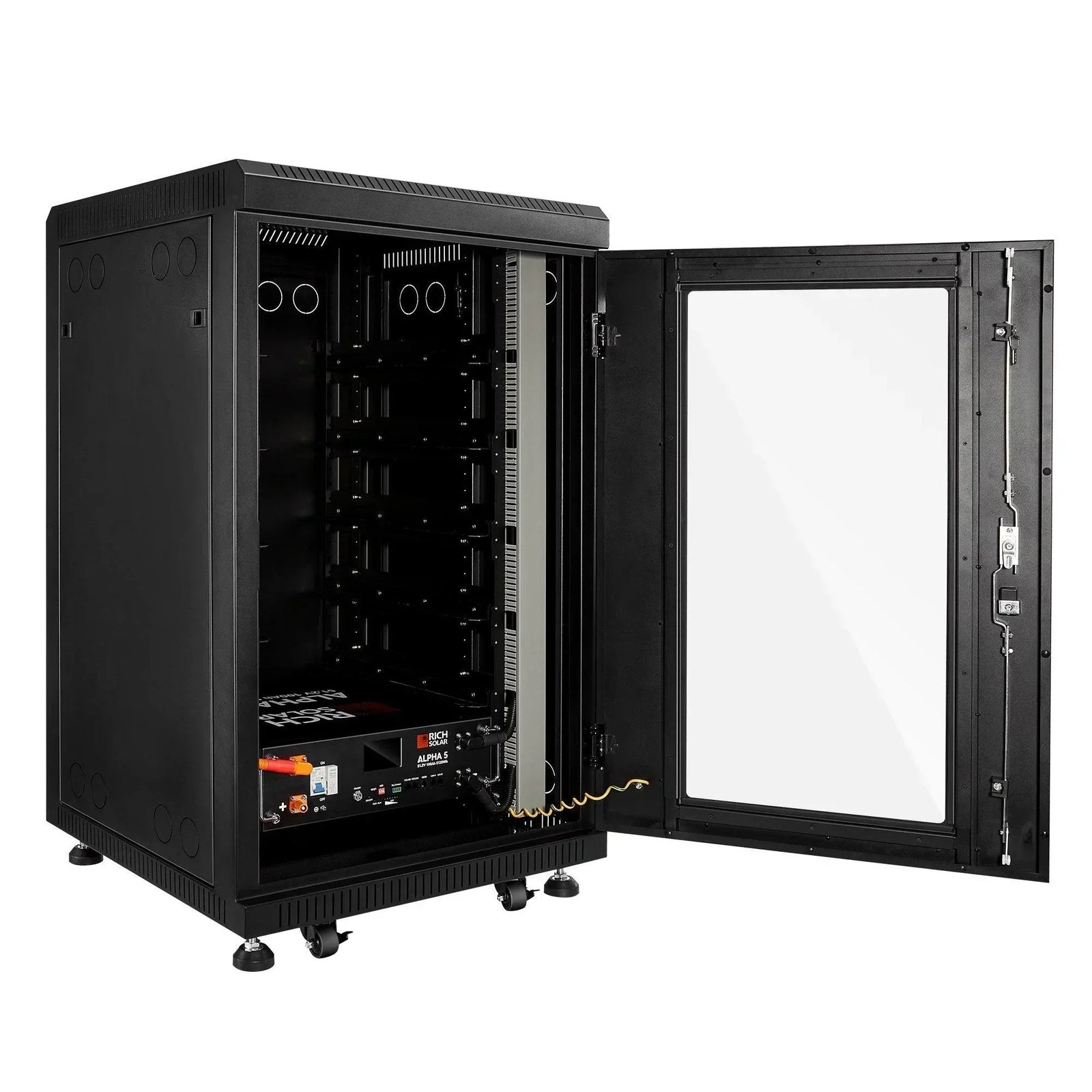

- Server Rack Dimensions: 27.5″L x 27.5″W x 44.1″H (Doesn’t include the height of wheels)
- Server Rack Weight: 196.2 lb
BMS Operation
- Operation Voltage: 43.2~58.4V
- Maximum Charging Current: 100A
- Maximum Discharging Current: 100A
- Maximum Charge Voltage (CC/CV): 57.6V
- Overcharge Protection Voltage (Battery): 58.4V
- Overcharge Protection Release Voltage (Battery): 54V
- Over Discharge Protection Voltage (Battery): 43.2V
- Over Discharge Protection Release Voltage (Battery): 47.2V
- Over Discharge Primary Charge Overcurrent Protection Value: 110A
- First Stage Charge Over Current Delay: 1s
- Primary Discharge Overcurrent Protection Value: 110A
- Primary Discharge Overcurrent Protection Delay: 1s
- Secondary Discharge Overcurrent Protection Value: 150A
- Secondary Discharge Overcurrent Protection Delay: 500ms
Temperature Performance
- Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
- Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
- Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
- Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)
Others
- Certification: UL1973, UL9540A, FCC
- Max. Expansion: 15 pcs in parallel
- Communication Ports: RS485/RS232/CAN
- Warranty: 10 Years Manufacturer Defect

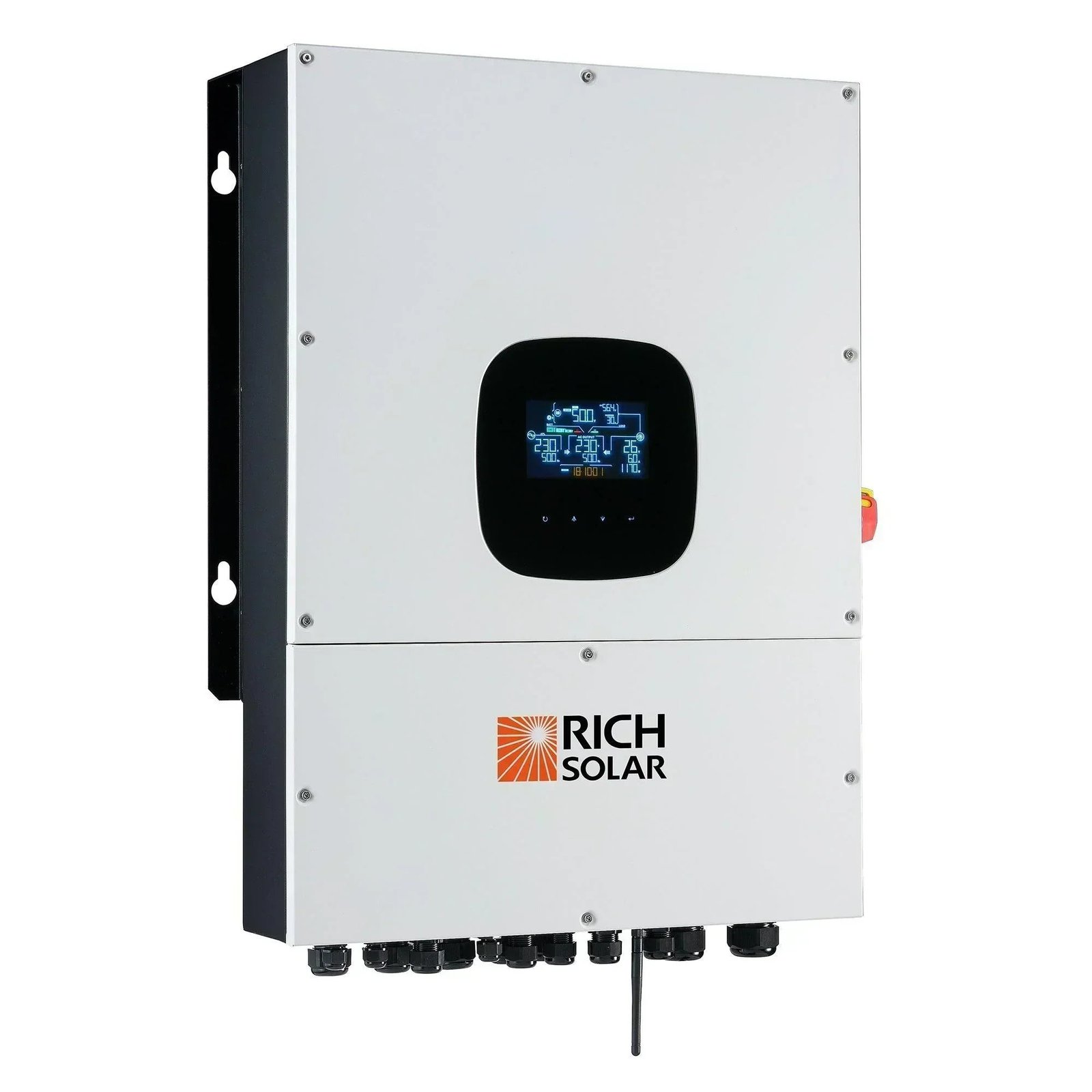

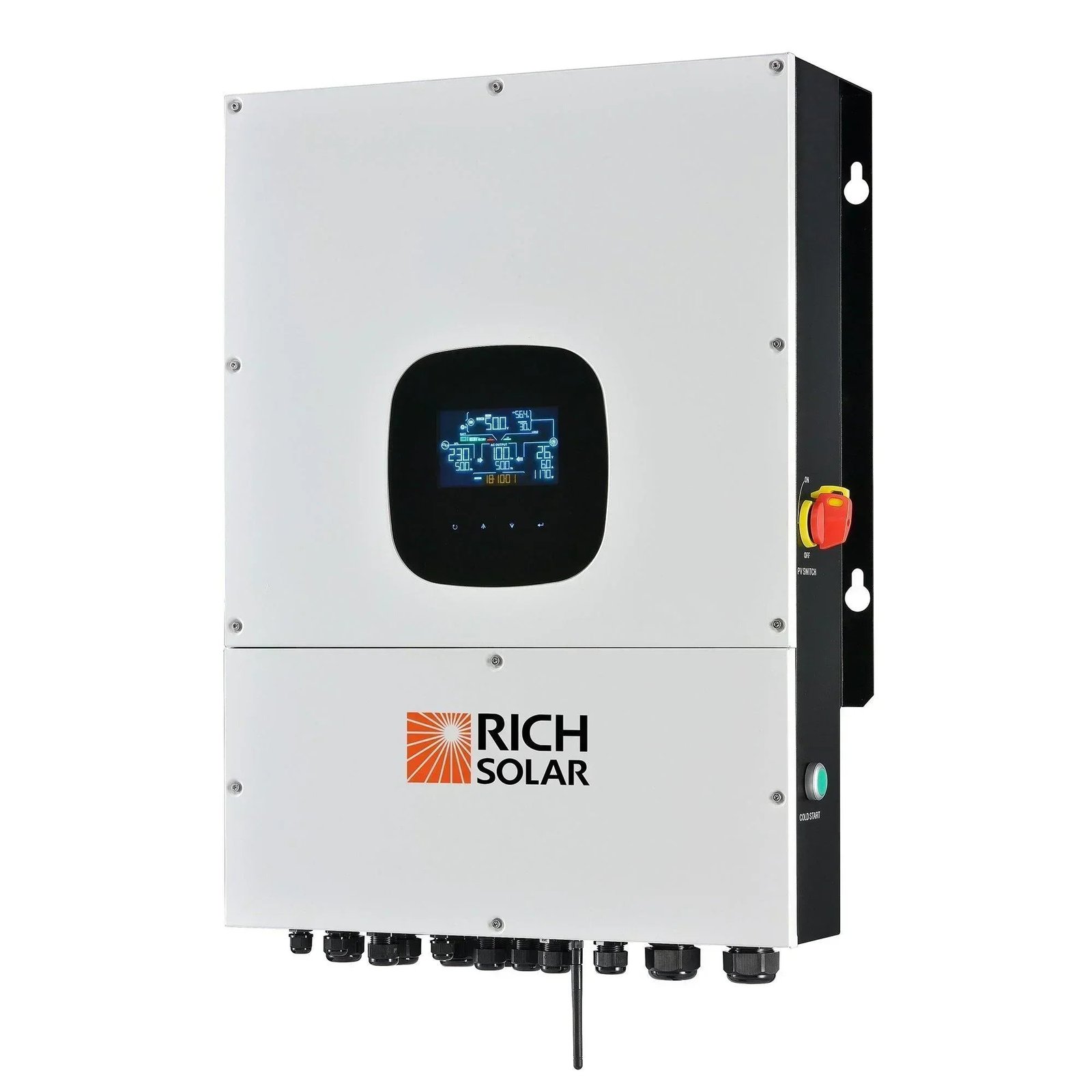

NOVA 12K PV Hybrid Inverter 12000W PV Input
Features:
- Support multiple input & output – Split phase 120/240VAC Split phase, 120V/208V Split phase
- Door-type cable compartment.
- Built-in 300A DC breaker and 60A AC breaker.
- Built-in AC coupled function.
- Built-in Wi-Fi for mobile monitoring (APP is available).
- Accepts second input power source, generator input compatible.
- Built-in arc fault detection (AFD) and rapid shutdown (RSD).
- External CT sensor to guarantee 100% self-consumption.
- Built-in communication port for BMS (RS485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units.
- Idle Consumption: -150W (±10%)
Specifications:
Input
- Maximum PV Input Power:12000W
- Maximum DC Voltage:600VDC
- Start-up Voltage/Initial Feeding Voltage:125VDC/160VDC
- MPPT Voltage Range:120VDC-550VDC
- Number of MPPT Trackers/Maximum Input Current:2/18A
Input
- Rated Output Power:10000VA/10000W
- Nominal Output Voltage:120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output Voltage Range:105.5–132VAC per phase
- Nominal Output Current:41.5A per phase
-
Battery
- Battery DC Voltage Range:40–62VDC/48VDC
- Maximum Solar Charging Current:200A
- Maximum AC Charging Current:200A
- Maximum Charging Current:200A
Operating Environment
- Operating Temperature Range:-13°F to 140°F(>113°F derating)
- Protection Degree:IP65
- Communication Port:RS232, RS485, Wi-Fi, USB
Physical
- Dimension (LxWxH):8.5×20.3×28.1in/215.5x515x715mm
- Net Weight:99.2lb/45kg
Certificate
- Certificate:UL1741SA, UL1741SB, CSA 22.2.107.1, CEC
