MEGA 550 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified
The MEGA 550 solar panel maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With 550W and 24V energy generation, the MEGA 550 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it able to withstand any environment it’s put in.
Features
- 10-busbar solar cell configuration
- TOPCON technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables (Solar Connectors) work in series or parallel
- Excellent low-light performance on cloudy days, mornings, and evenings
- Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
- Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications, on-grid solar system)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25-year output warranty
- 10-year manufacturer warranty
BUILT-IN COMPONENTS
- 550 watt solar panel
- Panel leads (pair): 2 feet each
- IP68-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Maximum Power(PMAX) | 550W |
| Maximum Power Voltage(VMP) | 41.96 V |
| Maximum Power Current(IMP) | 13.11 A |
| Open Circuit Voltage(VOC) |
49.90 V
|
| Short Circuit Current(ISC) | 14.00 A |
| Module Efficient η m (%) | 21.3% |
| Max Series Fuse Rating | 30 A |
| Weight | 73.19 lb (33.2 kg) |

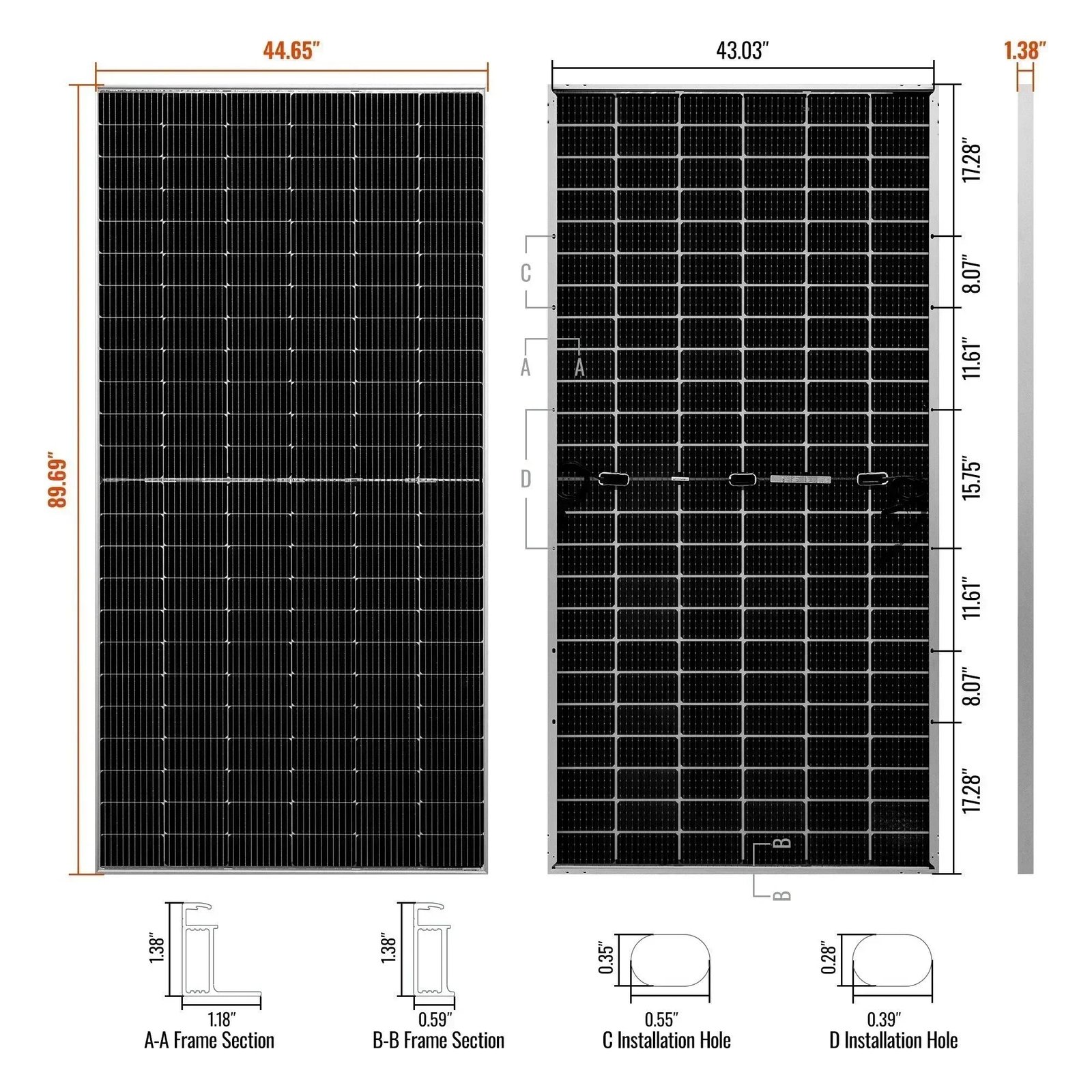

| Dimensions | 89.69 × 44.65 × 1.38 in |
