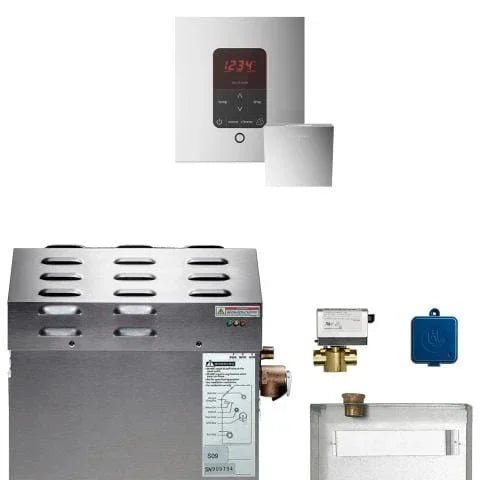

MS Butler 5kW Steam Shower Generator Package with iTempoPlus Control in Square, Polished Chrome
Description
This all-in-one, ready to install package gives you everything you need to create your own fully functional steam shower system at home, and at a substantial discount. The MSButler® Package features the iTempoPlus® Control. The elegant design and easy-to-use interface of our classic steam shower control features easy-to-read LED display, precise temperature and SteamShower duration and the ability to control optional Chroma72 mood lighting and AromaSteam systems. It also allows you to program preferred settings for two different users.
Features:
- 60 minute automatic cutoff, low voltage board, designed for easy access safe service
- Designed to save water and energy. Uses less than two gallons of water vs 40 gallons for an ordinary bath
- Easily install spa therapy accessories or components such as AromaTherapy, ChromaTherapy®, Steamlinx, and more
- Exclusive micro processor operating system is the brains of our intelligent steam generator
- Free from defects in materials and craftsmanship for its lifetime. Mr.Steam® will repair or replace (at its option) a Generator which fails to conform to this warranty
- Installs in areas such as a cabinet, closet, under a sealed bench or in an insulated attic
- LED indicators to help you troubleshoot any connection and maintenance challenges
- Naturally corrosion resistant, 100 percent recyclable Stainless Steel inside and out
- Reliable, industrial grade, and the industries largest copper heating element heats fast and is easy to remove and service
- US and Canadian UL listed, and CE and NoM certified for unsurpassed quality and safety
Include:
- MS 5kW Generator
- iTempoPlus Control Square, Polished Chrome
- MS Autoflush
- Condensation Pan
- Steamlinx WiFi Module
- Aroma Designer Steam head
- Installation and Operations Manual
- 2-Year Limited Warranty (Consumers Use)
Product Specifications
MS Butler 5kW Steam Shower Generator Package with iTempoPlus Control in Square, Polished Chrome Product Specifications
| Model | 05C1ADA0000 |
|---|---|
| Construction Material | Stainless Steel |
| Product dimensions | 32.5″L x 12.5″W x 21.5″H |
| Product weight | 42 lbs |
| Shipping dimensions | 33″L x 13″W x 22″H |
| Shipping weight | 42 lbs |
| Installation Type | Hardwired |
| Volts | 240 V |
| Watts | 5000 W |
| Control Screen Size | 2″ |
| Maximum Adjusted Cubic Feet | 71 cu. ft. |
| Kilowatt Rating (kW) | 5 kW |
| Minimum Time | 15 MIN |
| Maximum Time | 60 MIN |
| AMPS | 21 A |
| Water Supply Connection | 3/8″” NPT Water Inlet 1/2″” NPT Steam Outlet |
| Wire Gauge | 10 AWG |
| Generator Pipe Fitting + Tubing | 1/2 NPT & 3/8 NPT |
| Drain Connection | 1/2 NPT |
| Generator Phase | 1 PH |
| Generator Max Temperature | 113°F |
| Generator Line Fuse | 30 |
| Generator Fuel Type & Power | Electric |
Export Table Data
| Model | iTPLUS |
|---|---|
| Shipping Weight (Lbs.) | 4 lbs |
| DC Voltage | 5V DC |
| Steam Head Connection | 1/2″ NPT |
| Control “Rough In” Cut Out | 1″ |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30′, 8 Conductor, 24 AWG, Shielded Cable |
Export Table Data
| Model | MS 103867 |
|---|---|
| Shipping Weight | 4 lbs |
| Length | 25″ |
| Width | 9″ |
| Height | 1-1/2″ |
Export Table Data
| Model | STEAMLINX |
|---|---|
| Product dimensions | 3.75″L x 3.75″W x 2.5″H |
| Product weight | 1 lb |
| Shipping dimensions | 4.75″L x 4.75″W x 3.5″H |
| Shipping weight | 2 lbs |
| Ethernet Cable Length | 6′ |
| Installation type | Hardwired |
Export Table Data
| Model | 104040 |
|---|---|
| Construction material | Brass |
| Product dimensions | 3″L x 3″W x 1.5″H |
| Product weight | .9 lb |
| Shipping dimensions | |
| Length | 4″ |
| Width | 4″ |
| Height | 2.5″ |
| Shipping Weight | 1.9 lb |
Product Manual
MS Butler 5kW Steam Shower Generator Package with iTempoPlus Control in Square, Polished Chrome Product Manual
Installation & Operations Manual
MrSteam-Steambath-Generator-Systems-IOM-2023.pdf
Technical Specifications Sheet
MrSteam-Steambath-Generator-Systems-Tech-Sheet-2023.pdf
Product Warranty
MrSteam-Residential-Steambaths-Warranty-2023.pdf
