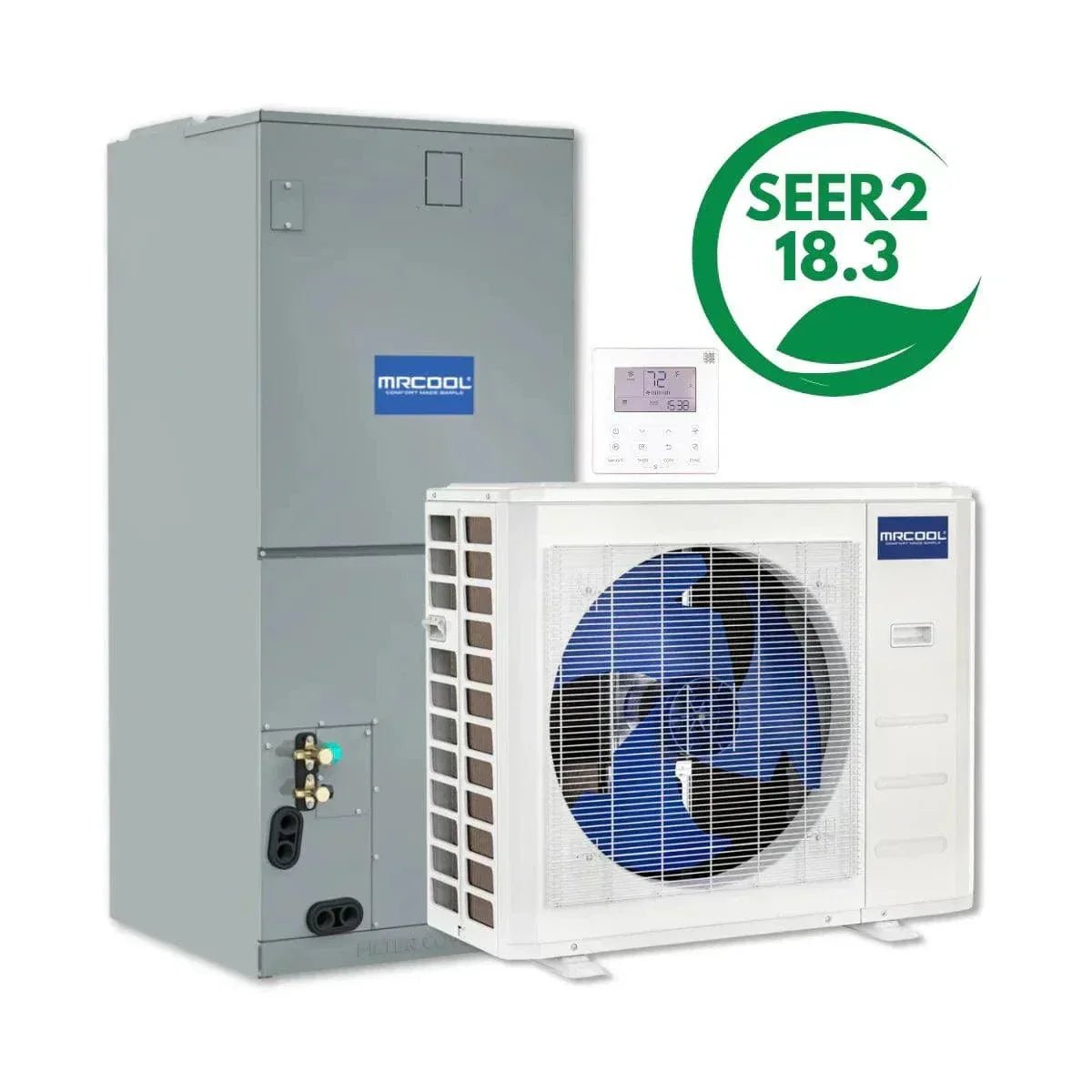

MRCOOL Hyper Heat 2nd Gen 24K 2 Ton Central Ducted System
The MRCOOL Hyper Heat 2nd Gen 24K BTU 2 Ton Central Ducted System is engineered for exceptional year-round comfort even in extreme climates. With advanced hyper heat technology, it provides efficient heating at temperatures as low as -22°F and powerful cooling up to 120°F. Designed for homes between 751–1,000 sq. ft., this system combines energy efficiency, quiet operation, and flexible installation to meet the demands of modern households.
Please note: This system is not a DIY installation and must be installed by a licensed HVAC technician.
MRCOOL Hyper Heat 2nd Gen 24K System Features
Hyper Heat Technology
Delivers reliable heating down to -22°F, making it ideal for cold climates.
High Efficiency
Achieves 18.3 SEER2, 11.7 EER2, and 10.0 HSPF2-4 ratings for outstanding energy savings.
Quiet Operation
Noise levels as low as 29 dB(A) on the air handler ensure whisper-quiet performance.
Flexible Installation
Supports vertical (upflow/downflow) or horizontal configurations, providing versatile setup options.
Compatible with Heat Kits
Offers support for 5kW, 8kW, 10kW, and 15kW add-on heat kits for additional heating capacity.
Applications
-
Cold climate homes – heating reliable down to -22°F
-
Medium-sized homes – perfect for 751–1,000 sq. ft. spaces
-
Year-round comfort – efficient cooling and heating in one system
-
Flexible ductwork setups – compatible with vertical or horizontal duct installs
What’s Included?
-
MRCOOL Hyper Heat 24K Condenser
-
MRCOOL Hyper Heat 24K Central Ducted Air Handler
-
User Manual
Warranty
-
10 Years Compressor
-
10 Years Parts
MRCOOL Hyper Heat 2nd Gen 24K Specifications

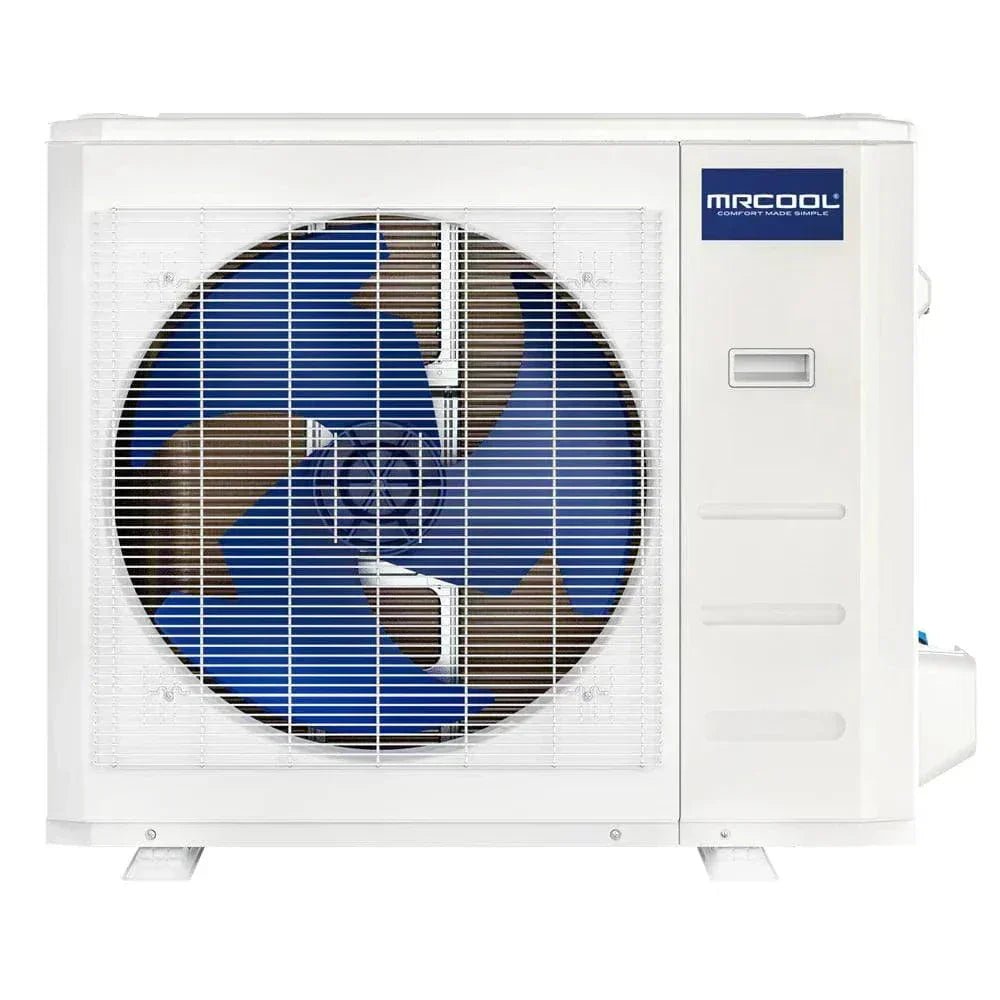

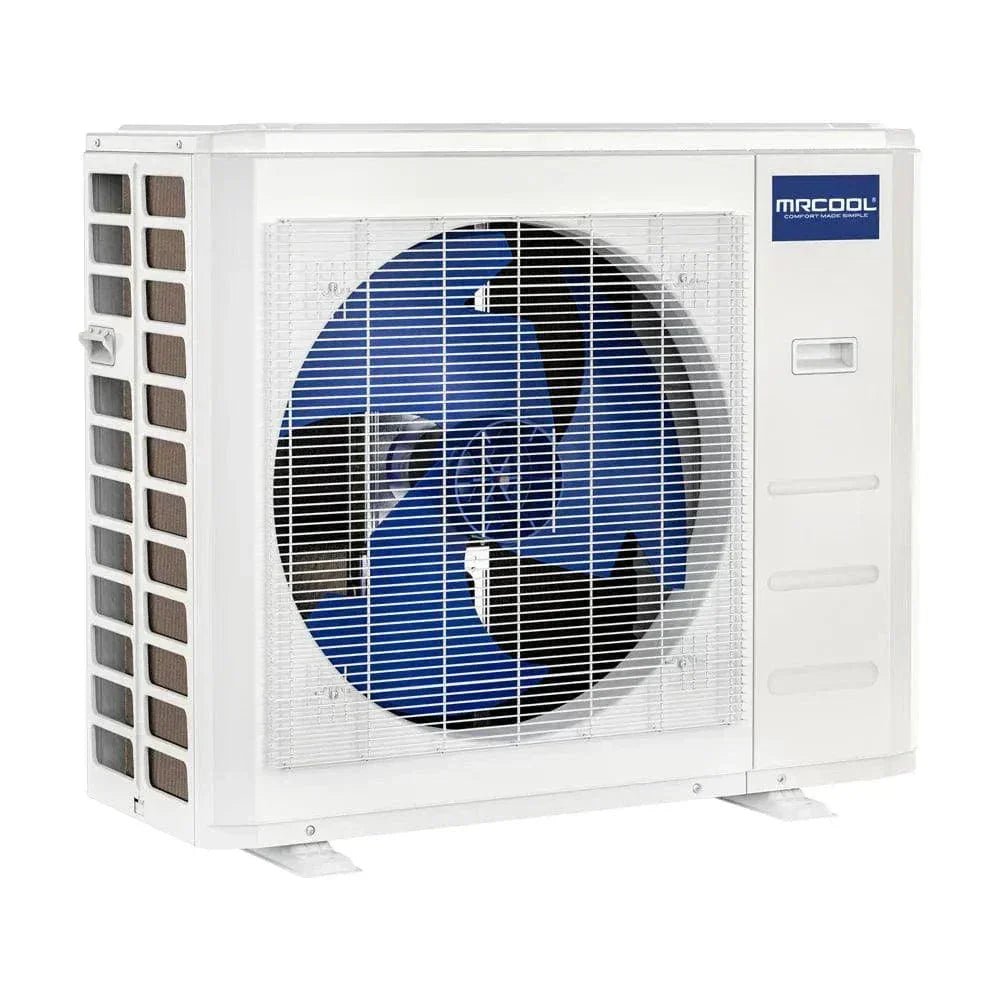

Condenser
| Dimensions | 35.04″ W x 13.46″ D x 26.50″ H |
| Weight | 102.29 lbs |
| Electrical Requirements | Requires a minimum of 208-230V/60Hz/19-20A (please check your home meets this electrical requirement prior to purchase) |
| Cooling Capacity | 23,000 BTU |
| Heating Capacity | 24,000 BTU |
| Outdoor Operating Temperature Range | -22 °F – 120°F |
| SEER2 | 18.3 |
| EER2 | 11.7 |
| HSPF2-4 | 10.0 |
| HSPF2-5 | 8.0 |
| Noise Level (Hi/Mi/Lo) | 60 db(A) |
| Refrigerant | R454B / 74.08 oz |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 3/4″ |
| Warranty | 10 Years Compressor, 10 Years Parts |

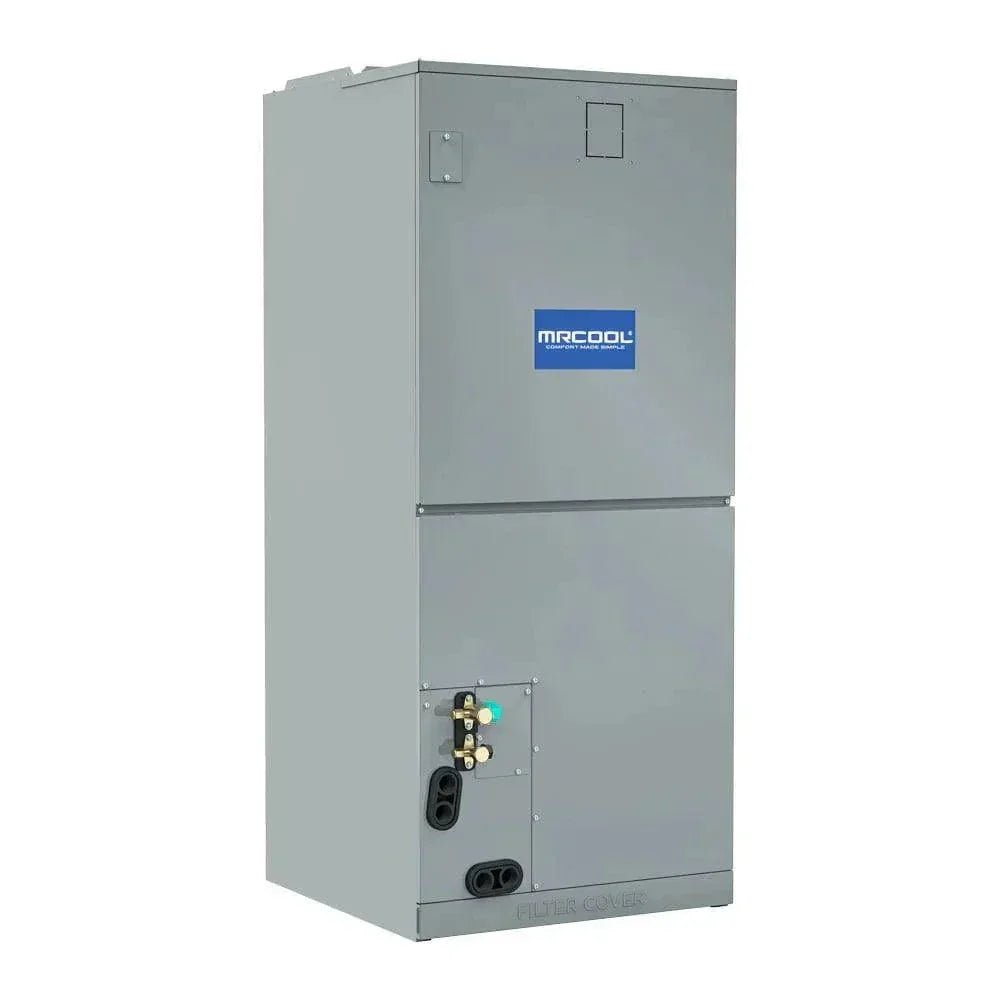

Air Handler
| Dimensions | 17.52″ W x 21.02″ D x 45.00″ H |
| Weight | 105.60 lbs |
| Electrical Requirements | Requires a minimum of 208-230V/60Hz/5.5/4.0-15A (please check your home meets this electrical requirement prior to purchase) |
| Mount Type | Vertical (Downflow or Upflow) Horizontal (Right or Left) |
| Cooling Capacity | 23,000 BTU |
| Heating Capacity | 24,000 BTU |
| Coverage Area | 751-1,000 square feet |
| SEER2 | 18.3 |
| EER2 | 11.7 |
| HSPF2-4 | 10.0 |
| HSPF2-5 | 8.0 |
| Noise Level (Turbo/Hi/Mi/Lo/Si) | N/A / 44 / 42 / 28 / N/A dB(A) |
| Airflow (TURBO/Hi/Mi/Lo) | 823 / 758 / 694 / 629 CFM |
| Refrigerant | R454B / 74.08 oz |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 3/4″ |
| Compatible Heat Kits |
5kW – MVPHK05 8kW – MVPHK08 10kW – MVPHK10 15kW – MVPHK10 |
| Warranty | 10 Years Parts |
Frequently-Asked Questions
Q: Can this system provide heat in very cold winters?
A: Yes, it delivers hyper heat performance down to -22°F.
Q: What size home is this system best for?
A: It covers homes between 751 and 1,000 sq. ft..
Q: Can it be installed horizontally in an attic space?
A: Yes, it supports both vertical and horizontal installation.
Q: Does this system include a heat kit?
A: No, but it is compatible with 5kW–15kW heat kits (sold separately).
Manual
-
MRCOOL Hyper Heat 2nd Gen 24K 2 Ton Central Ducted System Manual
