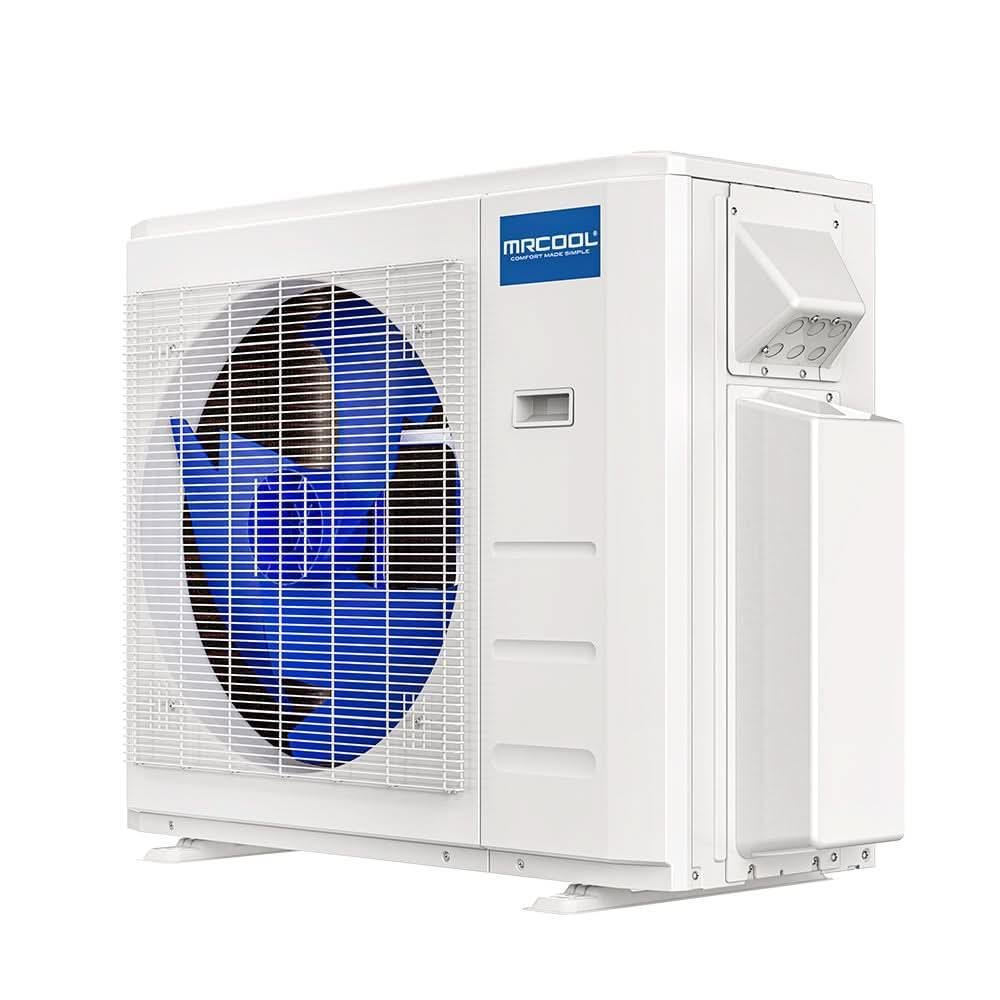

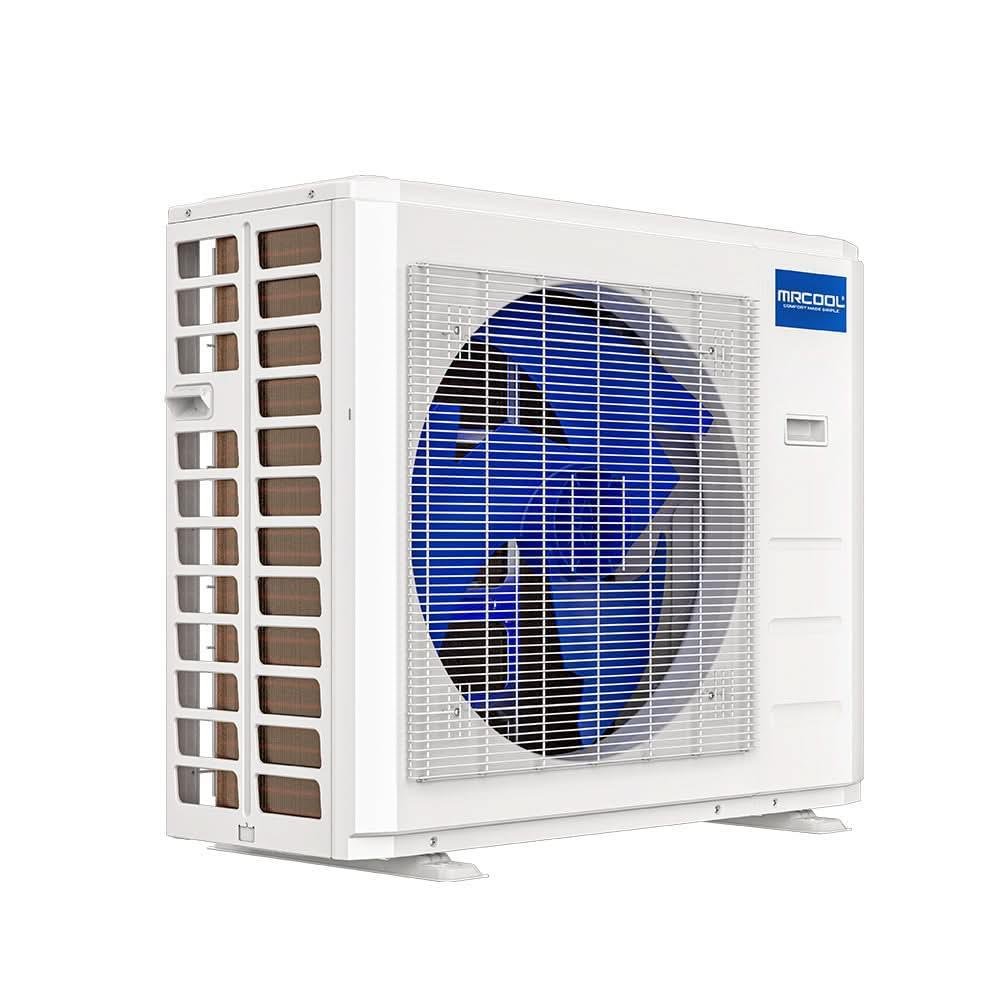

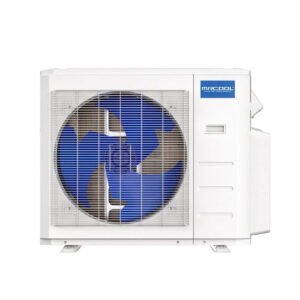

MRCOOL DIY 5th Gen 27,000 BTU 4-Zone Mini Split Condenser 230V | Condenser Only
The MRCOOL DIY 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser provides powerful and efficient heating and cooling for up to four zones. Designed with MRCOOL’s patented Quick Connect technology, this condenser allows homeowners to install the system without specialized HVAC tools or certification. With a coverage capacity of up to 1,125 sq. ft., it is the perfect choice for homes and small businesses looking for customizable comfort, energy efficiency, and quiet operation.
Please note: This condenser must be paired with MRCOOL DIY 5th Gen air handlers and Quick Connect line sets for full functionality.
MRCOOL DIY 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser 230V Features
Multi-Zone Flexibility
Supports up to 4 indoor air handlers, letting you control multiple rooms with one system.
Energy Efficient
With 23 SEER2 and 12 EER2 ratings, this condenser provides excellent energy savings.
Powerful Heating & Cooling
Delivers 27,000 BTUs of heating and cooling capacity, keeping your home comfortable year-round.
DIY Installation
Includes MRCOOL’s Quick Connect technology, eliminating the need for vacuum pumps or refrigerant charging.
Smart Home Ready
Wi-Fi enabled with compatibility for iOS, Android, Alexa, and Google Assistant for hands-free control.
Quiet Operation
Operates at 61 dB(A), minimizing outdoor noise while delivering reliable performance.
MRCOOL DIY 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser 230V Applications
- Homes – Ideal for multi-room comfort with independent zone control.
- Offices – Efficient solution for workspaces needing separate climate settings.
- Additions – Great for garages, basements, or home expansions.
- Small businesses – Energy-efficient comfort solution for shops or studios.
What’s Included
Everything you need is included with your product.
- 27,000 BTU 4-Zone Outdoor Condenser
- User Manual
Warranty
- 7 Years Compressor
- 5 Years Parts
MRCOOL Hyper Heat 48K Condenser Specifications
Dimensions & Weight
| Specifications | Details |
| Dimensions | 37.24″ W x 16.14″ D x 31.89″ H |
| Weight | 140.21 lbs |
Capacity & Performance
| Specifications | Details |
| Zone Capacity | 4 |
| Cooling Capacity | 26,000 BTU |
| SEER2 | 23 |
| EER2 | 12 |
| Heating Capacity | 26,000 BTU |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7 |
| Coverage Area | up to 1,125 sq. ft. |
| Outdoor Noise Level | 61 dB(A) |
| Outdoor Operating Temperature | Cooling: 5°F – 122°F | Heating: -13°F – 75°F |
Electrical Requirements
| Specifications | Details |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 25A |
| Min Circuit Ampacity | 23A |
Refrigerant & Piping
| Specifications | Details |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 84.66 oz |
| Liquid Line Size | 1/4″ |
| Suction Line Size | 3/8″ |
| Max Line Set Length | 221.4 ft. |
Features
| Specifications | Details |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
Certifications & Warranty
| Specifications | Details |
| Certifications | Energy Star Certified, UL Listed, ETL Listed, AHRI Certified |
| Warranty | 7 Years Compressor | 5 Years Parts |
Frequently-Asked Questions
How many air handlers can this condenser support?
This unit supports up to four indoor air handlers, with total capacity not exceeding 36,000 BTU.
Is this condenser pre-charged?
Yes, it comes pre-charged with refrigerant for use with all supported zones.
Can I install this without an HVAC technician?
Yes, this condenser is part of the DIY Multi-Zone line and is designed for tool-free installation when used with MRCOOL Quick Connect air handlers and line sets.
Manual
- MRCOOL DIY 5th Gen 27,000 BTU 4-Zone Mini Split Condenser 230V Manual
