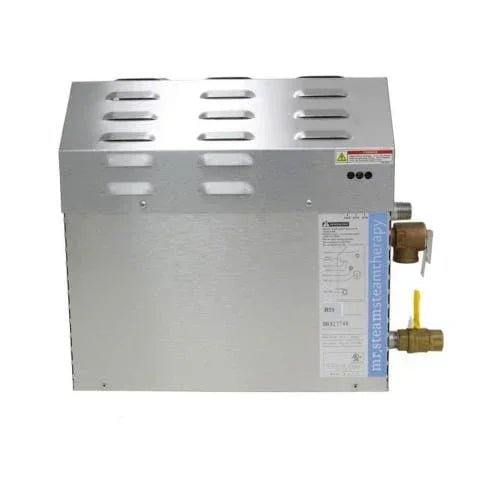

Mr.Steam MSSUPER2E MS-E Series 12kW Steam Shower Generator
Description
If you see a lower price on the Mr. Steam MS Super 2E steam generator, call us, and we’ll beat it, plus 10% of the difference!
The Mr. Steam MS Super 2E is designed for home steam rooms up to 411 adjusted cubic feet (ACF). Required control package sold separately.
The MS Super 2E steam shower generator is engineered for years of clean, reliable, efficient, and consistent operation. The unit features intelligent steam bath technology and runs off an advanced microprocessor operating platform, making it perfect for residential and smaller commercial applications.
With robotically welded stainless-steel throughout, the MS Super 2E provides long-lasting strength and durability. The steam unit is equipped with industrial-grade heating elements, a precision temperature probe, durable electronic components, LED color indicators, and a variety of other features.
The ultra-efficient MS Super 2E generator maintains a constant steam production by introducing just the right amount of water through a proprietary dispersal chamber. The unit uses less than two gallons of water during a typical 20-minute bathing session, making it both eco-conscious and economical.
The compact size of the MS Super 2E allows the steam shower unit to be installed up to 60 feet away from the steam shower enclosure, even on a different floor. Typical generator installation locations include cabinets, vanities, and closets.
The optional Express Steam feature includes a built-in thermostat that maintains water temperature so that you may start steaming in seconds.
The MS Super2E 12kW steam bath generator is available in 208V (MSSUPER2EB1) and 240V (MSSUPER2EC1) single-phase (1PH) configurations.
We recommend the available Mr. Steam Auto Flush Auto Drain System with your MS Super 2E to help prevent harmful mineral buildup and calcification of the heating elements and reservoir. The Auto Flush System automatically drains the generator tank two hours after each steam bathing session to ensure the optimal performance of the unit.
Mr. Steam residential steam generators require the use of a control or control package for operation. Select the available control with features that best suit your bathing preferences.
The MrSteam MS Super 2E generator carries a limited lifetime warranty and is fully serviceable. MS E-Series generators are made in America and are US and Canadian UL listed and CE and NOM certified for your safety.
Features:
- For steam baths sized from 340 to 411 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element

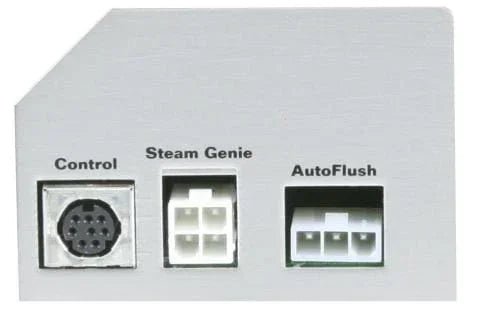

- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
Includes:
- 12kW Steam bath generator, 17″L x 7-7/8″W x 18-3/4″H
- Installation and operation manual
- Limited warranty
Product Specifications
Mr.Steam MSSUPER2E MS-E Series 12kW Steam Shower Generator Product Specifications
| Model | MS SUPER-2E |
|---|---|
| Minimum Adjusted Cubic Feet | 340 |
| Maximum Adjusted Cubic Feet | 411 |
| Shipping Weight (Lbs.) | 40 lbs |
| Kilowatt Rating (KW) | 12.0 KW |
| Electrical Specifications | (refer to Electrical chart) |
| Water Supply Connection | 3/8″ NPT |
| Generator Steam Line Connection | 1/2″ NPT |
| Steam Head Connection | 1/2″ NPT |
| Drain Connection | 1/2″ NPT |
| Safety Relief Valve Connection | 3/4″ NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control “Rough In” Cut Out | 1″ |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30′, 8 Conductor, 24 AWG, Shielded Cable |
| Width | 17″ |
| Depth | 7-7/8″ |
| Height | 18-1/2″ |
