Intellian s100N 1M HD Satellite TV Antenna In v100NX/t100N Matching Dome – Includes Multi-Switch Module [T4-107BT3]

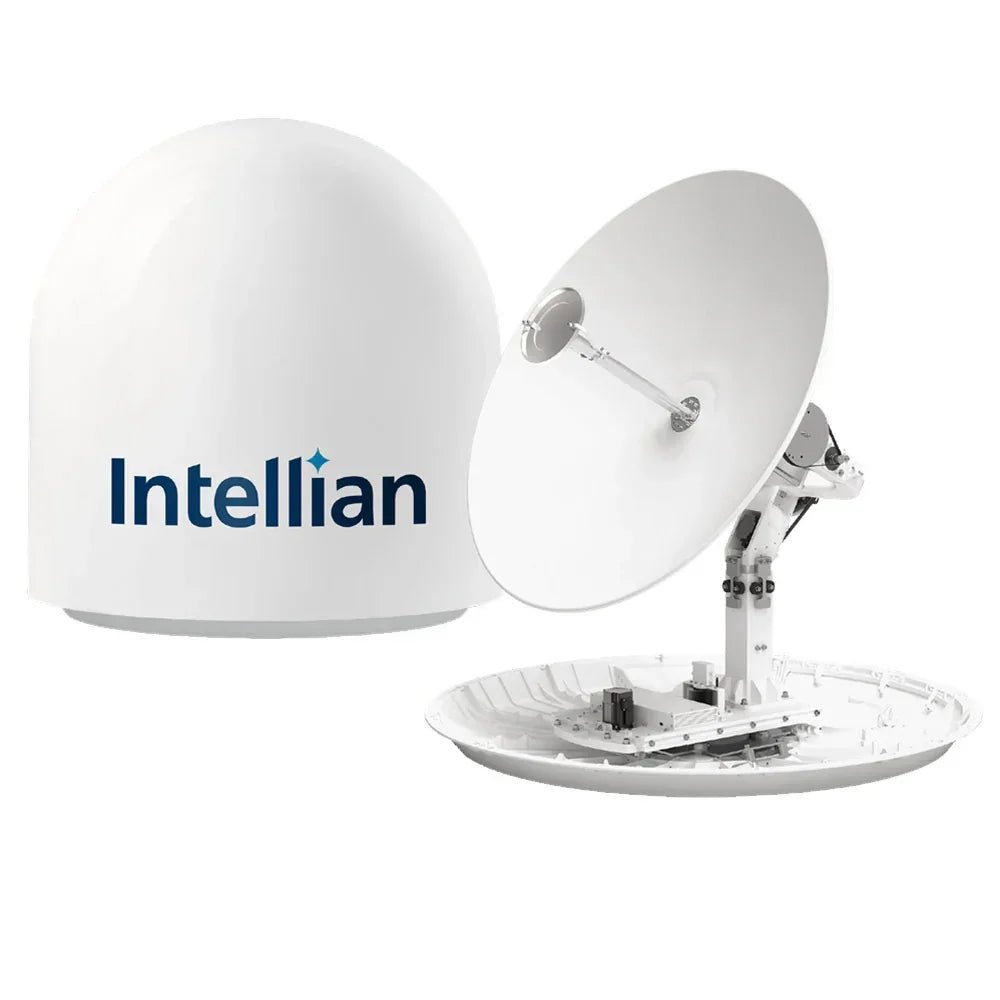

s100N 1M HD Satellite TV Antenna In v100NX/t100N Matching Dome – Includes Multi-Switch Module

1.09M (42.9 inches) reflector WorldView™ TV system with dedicated support for DIRECTV UHD.

The s100N provides outstanding performance with a 1m reflector and simultaneous DirecTV reception. Intellian’s WorldView™ Trio LNB™, with its triple feed horn, provides simultaneous reception of DIRECTV® satellites: two HD Ka-band (99°W/103°W) satellites and one Ku-band (101°W) satellite. The LNB receives Ku-band TV service worldwide, providing a complete HD entertainment experience at sea.

Features:

• Television, wherever you are: The user can select the desired TV programming from the enhanced satellite-tracking library of worldwide TV satellites, divided into geographical regions. A selection of TV satellites can be listed as favorites for quick access via AptusNTV or the ACU front panel. TV satellites can easily be added to the library via the AptusNTV dashboard.
• Unlimited azimuth range – With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes. The solution eliminates the wait for the antenna to unwrap the cable once its length is reached. Never again miss a goal or touchdown of your favorite team.
• Redesigned Quattro WLNB – The WLNB has a dedicated output for satellite tracking on all polarizations and (hi and low) frequency bands. The new satellite tracking tuner supports the latest DVB-S2X broadcast standard already being utilized by emerging satellite TV providers. The superior design of the s100N antenna ensures that performance and flexibility are increased with its Ku-Ka-band tuned radome and reflector.
• Matching dome solution – The s-Series antennas are fitted with radomes that match our NX Satellite Communication antennas for onboard aesthetics.
• NX-based antenna design – The pedestal, motor/encoder, and modular antenna control are based on the reliable NX (VSAT) platform. While the software is identical, the majority of the hardware on the TVRO t-s and s-series is spare parts that are interchangeable as well. Sharing common modules across Intellian’s TVRO series greatly reduces the number of spare parts required.
• AptusNTV – AptusNTV is the intuitive dashboard for the TVRO t- and s-series. The enhanced satellite tracking library and the 7-step installation wizard make the antenna easy to install, configure, and operate. The ACU has the option for Wi-Fi access to configure and operate the antenna from a PC, tablet, or smartphone.

Technical Specifications:

• Radome Dimensions – 54.3″ (D) x 57.4″ (H)
• Reflector Diameter – 42.9″
• Weight – 231.5lbs
• Azimuth Range – Unlimited
• Elevation Range – -15° – +115°
• Cross-Level Range – ±42°
• Rx Frequency – Ku-Band: 10.7 12.75 GHz, Ka-Band: 18.3 18.8/19.7 20.2 GHz
• LNB Type – Trio WorldView Programmable
• EIRP – Ku-Band: 42.0 dBw (min.), Ka-Band: 45.0 dBw (min.)
• Polarization – Ku-Band: Linear & Circular, Ka-Band: Circular
• Stabilization Accuracy – 0.2° max in the presence of specified ship motions
• Ship Motion (@ 6 seconds) – Roll ±25°, Pitch ±15°, Yaw ±8°. Turning Rate: Up to 10°/sec²

Specifications:

• Antenna Dish Diameter: 54.3″
• Dome Weight (lbs): 231.5lbs
