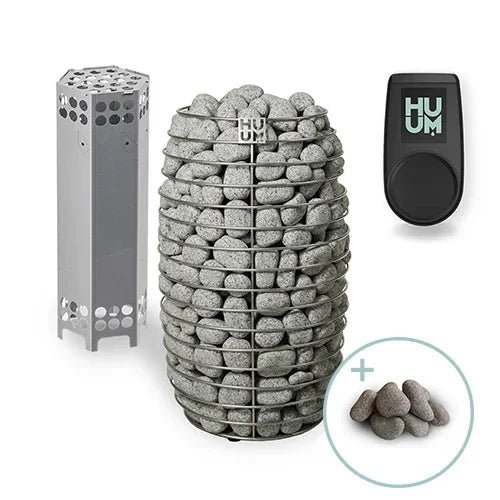

HUUM HIVE Mini 10.5STU Pkg, 10.5kW Sauna Heater Package
This HUUM Hive Mini sauna heater package comes complete with the slimmer designed HIVE Mini 10.5kW sauna heater, UKU control (WiFi optional), and sauna stones – everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 706 cubic feet (CF).
Features
HIVE Mini 10.5kW Sauna Heater
- Elegant design
- 240V/1PH operation
- For sauna rooms from 353 to 706 cu. ft.
- 330 pound stone capacity
- Direct contact between stones and heating elements
- More exposed stones create a longer and milder heat
- Stainless steel construction
- Stainless steel, industrial quality heating elements
- Floor model with adjustable legs
- Designed, engineered, and made in Estonia
- Dimensions: 18.1″ Diameter (460mm) x 29.5″ H (750mm)
- SGS Listed
- Limited 5-year warranty (excluding elements)
UKU
- Sleek Black control display panel
- Multiple Color Options available (additional charges apply)
- Settable on/off, time, temperature, and delay
- Settable temperature range of 104-230F
- Delayed start up to 48hrs in advance

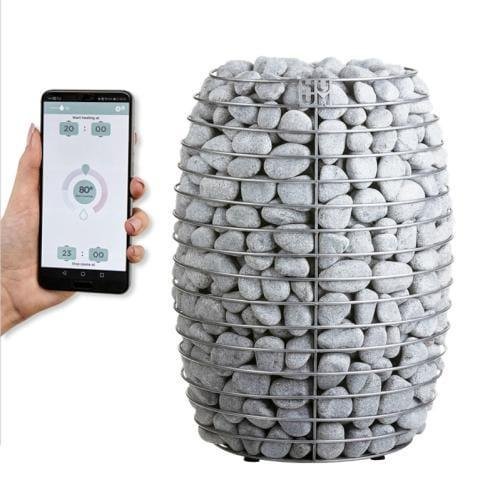

- Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
- 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
- Inside/outside sauna room installation
- Optional smart heating setting
- Available decorative control display panels
- Displays set temperature and room temperature
- Temperature sensor
- Door sensor to keep the heat inside the room
- Remotely located main control module
- Connects to lights and ventilation
- Overheat protection
- Child safety lock
- Control Console Dimensions: 2.2″W (55mm) x 0.9″D (22mm) x 4.1″H (105mm)
- Main Control Module Dimensions: 3.5″W (90mm) x 2.3″D (58mm) x 5.6″H (142mm)
Stones 24
- Olivine diabase sauna stones
- Rounded shape to complement heater design
- Durable with high-heat capacity
- Stones range from 2″ to 4″ (5-10 cm)
Product Specifications
HUUM HIVE Mini 10.5STU Pkg, 10.5kW Sauna Heater Package Product Specifications
| Model | HIVE Mini 10.5STU Pkg |
|---|
| Hive Mini 10.5 | |
|---|---|
| Kilowatt Rating | 10.5kW |
| Minimum Cubic Feet | 353 CF |
| Maximum Cubic Feet | 706 CF |
| Heater Weight | 35.3 lbs |
| Shipping Weight with Sauna Stones | 365.3 lbs |
| 240V, Single Phase Amperage | 43.75 Amps |
| Elements Required | 3 |
| Circuit Breaker | 50 |
| Wire Size AWG | 6 |
| Diameter | 18.11″ |
| Height | 29.5″ |
| UKU | |
|---|---|
| Minimum Temperature Setting | 104 F |
| Maximum Temperature Setting | 230 F |
| Shipping Weight | 20 lbs |
| Console Dimensions | |
| Width | 2.2″ (55mm) |
| Depth | 0.9″ (22mm) |
| Height | 4.1″ (105mm) |
| Main Module Dimensions | |
| Width | 3.5″ (90mm) |
| Depth | 2.3″ (58mm) |
| Height | 5.6″ (142mm) |
| Display Panel Cable | |
| Length | 9.8 ft |
| AWG | 22 |
| Temp Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
| Door Sensor Cable | |
| Length | 16.4 ft |
| AWG | 24 |
Product Manual
HUUM HIVE Mini 10.5STU Pkg, 10.5kW Sauna Heater Package Product Manual
Huum HIVE Installation and Operation Manual
HIVE Specs.pdf
Huum UKU Installation and Operation Manual
Huum HIVE Spec Sheet
Huum UKU Install Diagram
HUUM Stone Requirements 242302.pdf
