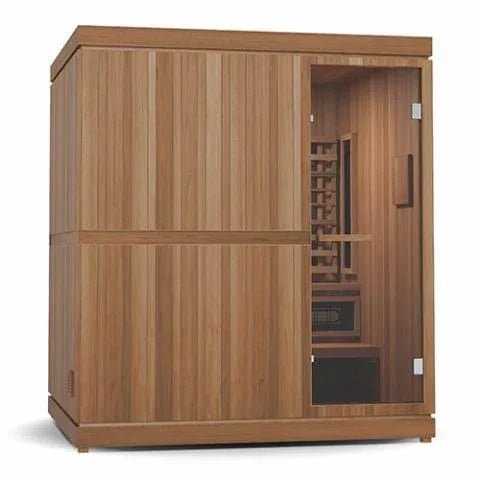

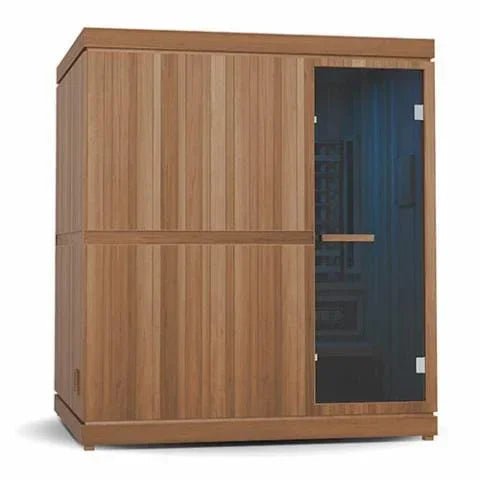

Finnmark Designs FD-5 Trinity XL Infrared & Steam Sauna | 4 Person

Finnmark Designs FD-5 Trinity XL Infrared & Steam Sauna | 4 Person

The Trinity Combination Sauna is the only sauna available that combines Finnmark’s UL listed Spectrum Plus infrared heaters combined with a traditional sauna heater that uses vulcanite sauna stones to radiate and even heat and allow you to splash a ladle of water onto the rocks for steam. True medical grade Spectrum Red Light™ Therapy rounds out this multi-dimensional home wellness system.

Don’t compromise! Finnmark’s FD-5 Trinity is the only combination sauna with true UL listed infrared heater panels together with a traditional sauna heater. Furthermore, the IR panels, red light therapy. Get all the benefits of infrared combined with traditional rocks with steam.

Get hot fast! The only IR heaters that have passed the rigorous tests from Underwriter Laboratories used in tandem with a traditional steam sauna stove. Short wave far-infrared penetrates muscles, joints, and makes you sweat 25 times more than carbon panel heaters.

The traditional 240V/1PH 4.5kW sauna heater lets you splash some water onto the rocks for a luxurious steam sauna experience. Reap the benefits and the intensity only offered by a steam sauna.

Red light therapy is a type of phototherapy that uses low-level light wavelengths to penetrate the skin and stimulate the production of collagen and other proteins, which can lead to numerous potential health benefits. It’s a perfect enhancement to your sauna wellness ritual.

Features

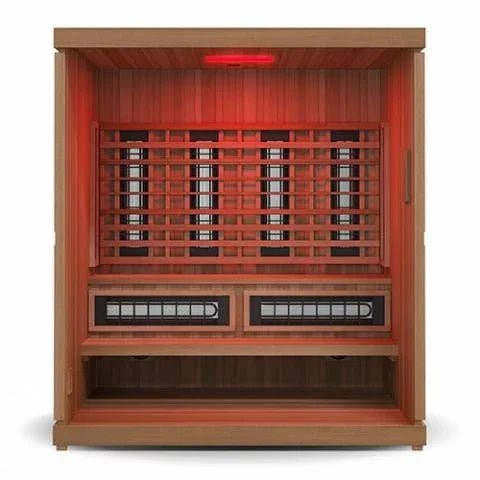

• Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.

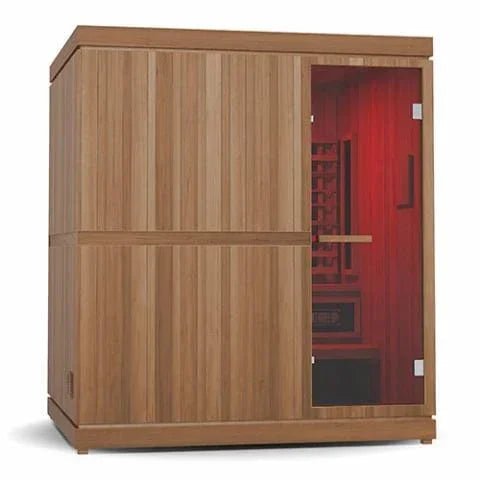

• Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
• Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
• Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Designs full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.

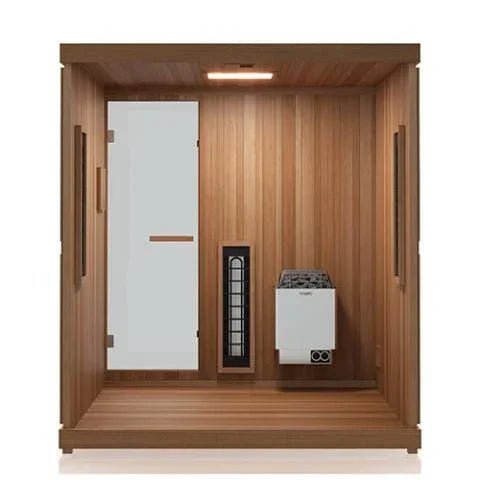

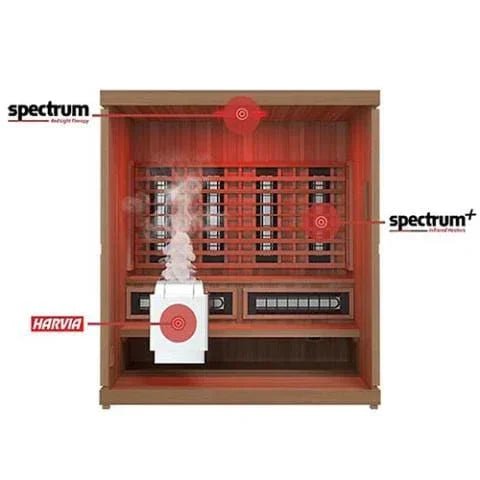

• 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
• Built-in LCD touchscreen controller with Bluetooth audio.
• Audio with 6″ HiFi marine grade speakers, 8mm tempered glass for the ultimate thermal retention.
• Extra large two-tier bench system
• Low EMF sauna tested by a NASA award winning testing facility.
• High Emissivity infrared heaters

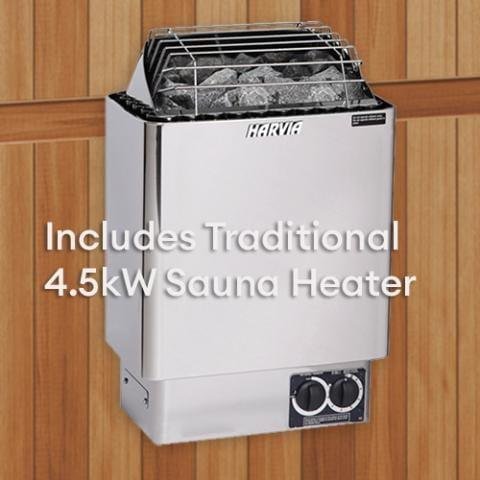

Harvia KIP Series 4.5KW Sauna Heater

• Wall-mounted
• Stainless steel construction
• 4.5kW
• For sauna rooms from 100 to 210 cu. ft.
• Requires a minimum of 50lbs of stones (1 box-AC3000)
  • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• Requires wall-mounted time/temperature control
• Available in 240V/1PH operation or 208V/3Ph operation
• Industrial grade, serviceable heating elements
• Exceptionally large rock capacity
• UL listed
• Direct rock-to-heating element contact
• Designed, engineered, and made in Finland
• Dimensions: 16″W (406mm) x 11″D (279mm) x 24″H (609mm)
• 2-Year Warranty (Consumer Use)
  • Manufacturer’s Note: Sauna heater stones are significant to the unit’s safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.

Health Benefits

• The technology of the Spectrum Plus incoloy heaters warms your core body temperature, producing a cleaner, healthier sweat while lowering blood pressure, and maintaining heart health.
• The natural heat produced by the Spectrum Plus heaters is designed to achieve a more controlled hot climate much like a traditional sauna without the unbearable heat temperatures. This deeper penetration through sweating goes beyond the muscle and fat rather than a traditional or hot air sauna.  As a result, you’re able to work up the best possible sweat in the least amount of time.
• Spectrum Plus heaters remove 17% more toxins such as cholesterol, fat-soluble toxins, toxic heavy metals, sulfuric acid, sodium, ammonia and uric acid.
• Full Spectrum Sauna combination of long-wave Spectrum Carbon 360 infrared panels with UL-listed short-wave Spectrum Plus™ infrared panels. This combination provides higher temperatures, full body coverage, deeper penetration, and better experience than any other sauna.
• Reap the benefits of a more natural pain relief remedy with every infrared sauna session.
• Athletes can appreciate a faster muscle recovery with increased blood flow to the muscles, delivering more concentrated oxygen and creating more energy to heal.

Product Specifications

Finnmark FD-5 Trinity XL Infrared & Steam Sauna Product Specifications

What’s in the box?

• Bottom Panel
• Top Panel
• Back Panel
• Front Panel
• Left Panel
• Right Panel
• Glass Door
• Bench Support
• Bench Top
• Heater Cable
• Floor Cable
• Screws
• Power Supply Unit
• Power Cable
• Interior Heater Connections with Wood Cover
• Door Handle (2 Screws)
• Infrared Sauna Heater Panels
• Harvia KIP Series 4.5kW Sauna Heater
• 1 Box of the Harvia AC3000 0-10cm sauna stones (29 lbs)
  • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• Medical Grade LED Red light therapy at 650nm plus color chromotherapy
• V2 LCD Controller 5″ touchscreen controller with Bluetooth
• ETL Certification
• Limited Warranty

Specifications

• Electrical Requirements: (requires two 240V circuits)

  • Harvia KIP 4.5kW Traditional Heater: 240V/1PH/18.8A hard-wired with 10AWG wire and 30A circuit breaker
  • Infrared/Lighting/Control: 240V/1PH/15A NEMA 6-15 plug
  • Power Cord Length: ~9′ long
  • Infrared will operate in conjunction with traditional heater up to 170F

• IR Watts: 2700W
• IR Emissivity: .997
• Maximum Temperature: IR 170° F | Traditional 190° F
• External Materials: Thermo-Aspen
• Interior Materials: Western Canadian Cedar

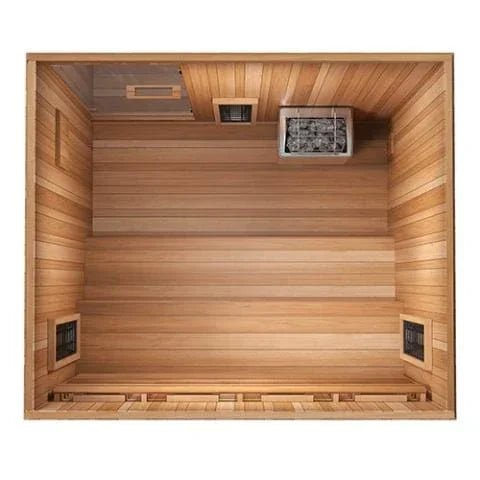

• Interior Dimensions: 71″W x 57.5″D x 75.5″H
• Bench Dimensions: 71″ x 22″ (top bench) and 16″ (bottom bench)
• Exterior Dimensions: 75″W x 64″D x 83″H (recommended to have 2-3″ of space around the sides and top of the sauna for airflow in and out)
• Room Volume: 130 cu ft
• Door Dimensions: 23 5/8″W x 68 7/8″H
• Glass Thickness: 8mm W/Gasket
• Product Weight: 575 lbs
• Shipping Dimensions: 36″W x 52″H x 80″D
• Shipping Weight: 654 lbs W/48 lb Pallet
