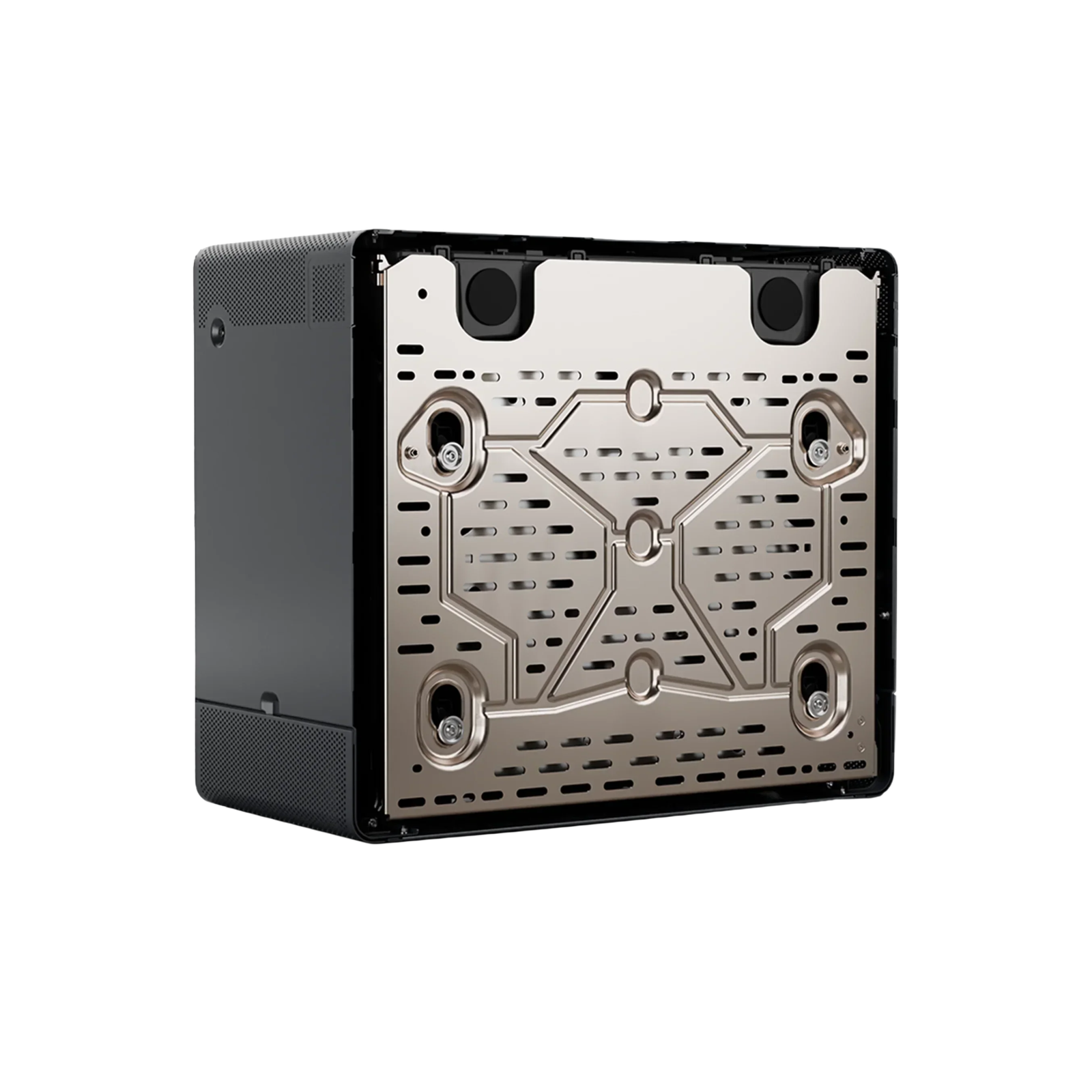

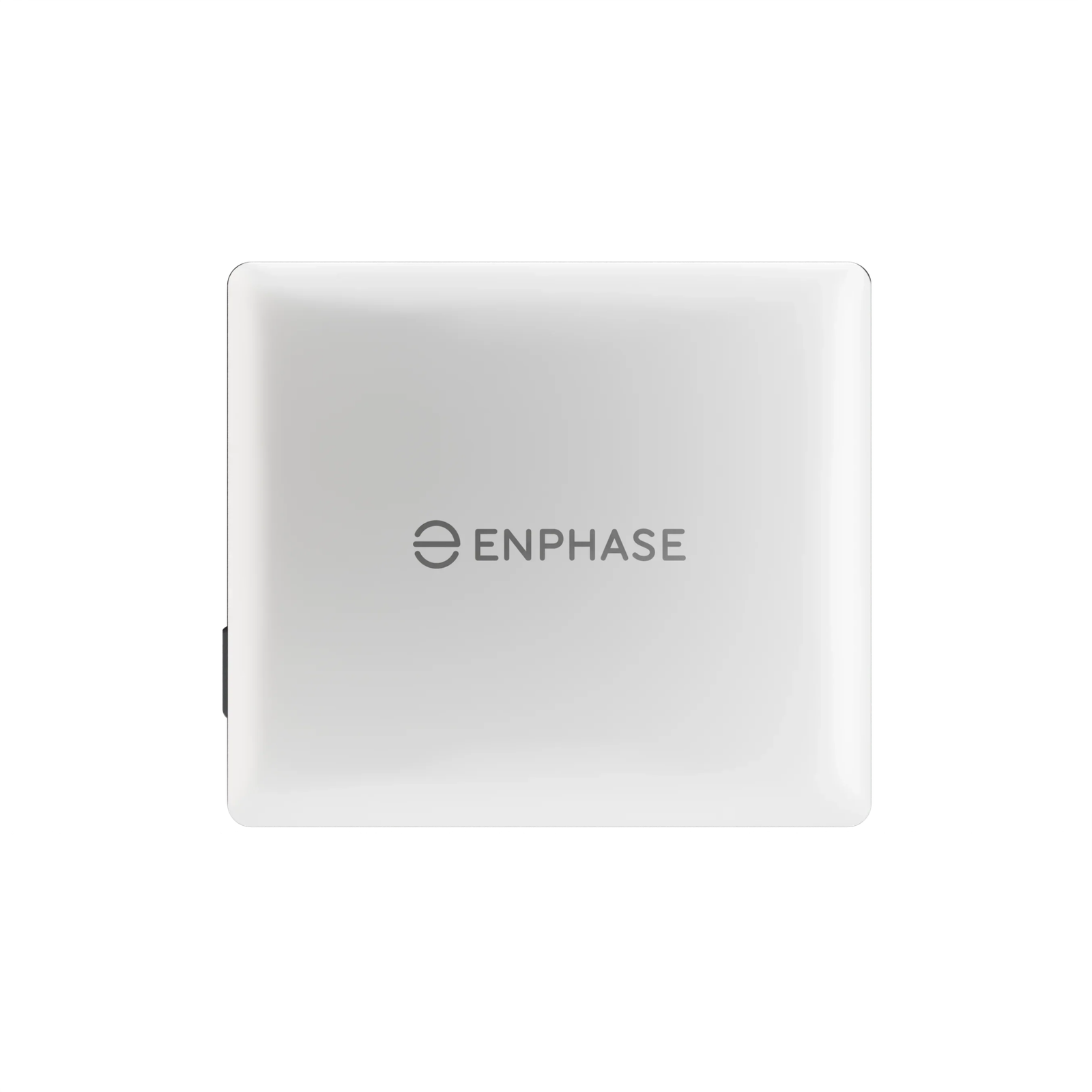

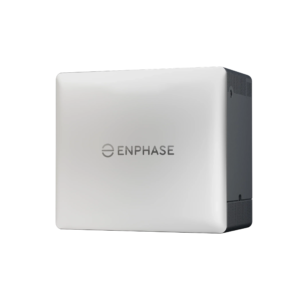

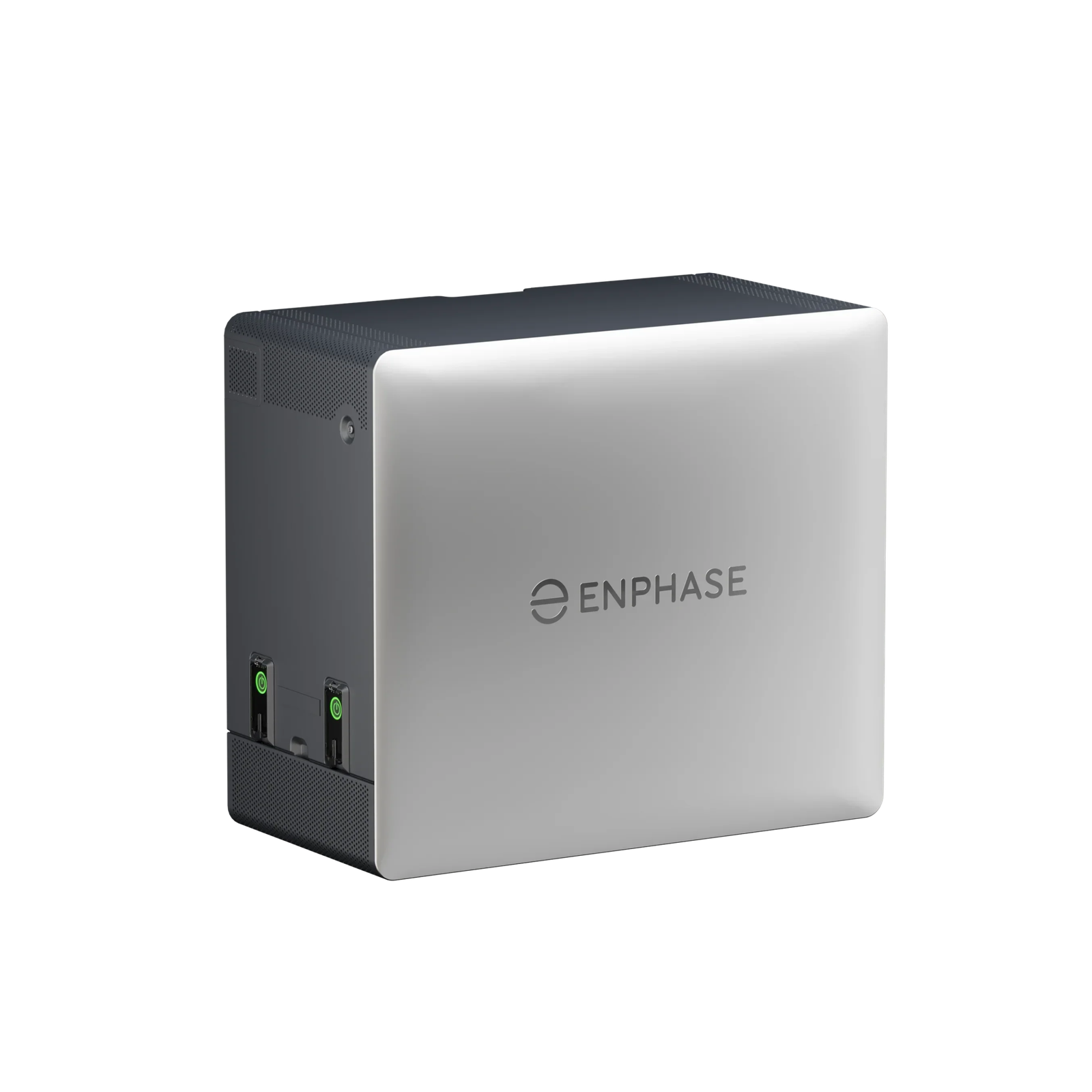

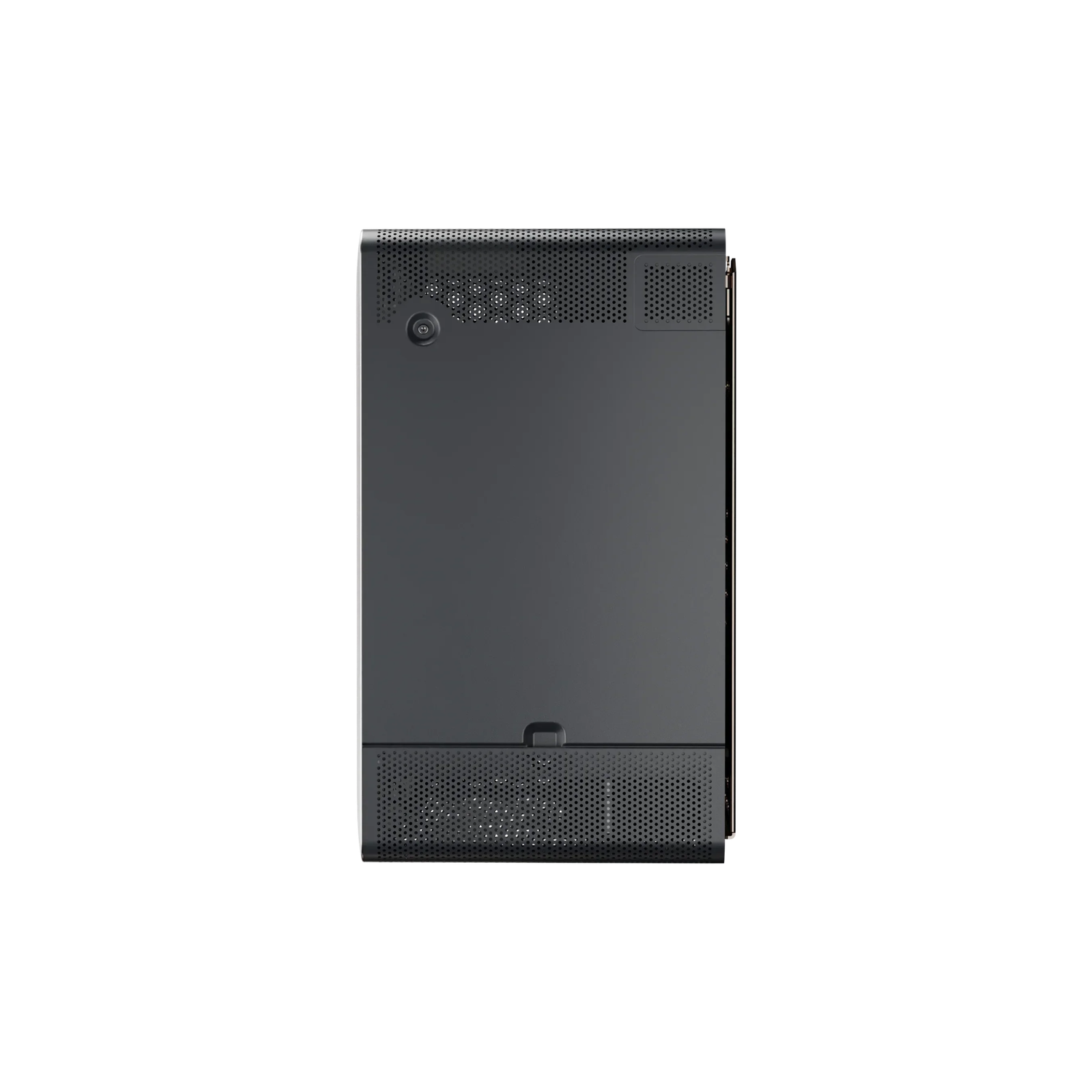

Enphase IQ Battery 10C 10kWh LFP AC Coupled Home Battery IQBATTERY-10C-1P-NA
**Includes: Two 5kWh battery units (part #: B05-C01-US00-1-3), one mounting bracket, & one Enphase ID Cover (part #: B10C-NC-0708-O)**
The Enphase IQ Battery 10C is a 10kWh lithium iron phosphate (LFP) AC-coupled home battery with built-in IQ8 microinverters. Designed for backup and self-consumption, it delivers 7.08kVA of continuous power and supports demanding loads like HVACs and pool pumps. With UL 9540A safety certification, natural convection cooling, and modular scalability, the IQ Battery 10C ensures safe, reliable, and flexible storage for homes and small businesses.
Built with cobalt-free lithium iron phosphate (LFP) cells, the IQ Battery 10C offers enhanced thermal stability and longevity. Each system includes four embedded IQ8 microinverters, eliminating the need for neutral-forming transformers and allowing 120V/240V split-phase backup capability.
Key Features:
- Powerful Performance: The IQBATTERY-10C-1P-NA boasts a total usable energy capacity of 10 kWh and delivers an impressive 7.08 kW of continuous power, making it capable of supporting heavy loads like HVAC units and pool pumps. It can provide peak power of up to 14.16 kVA, ensuring you’ll have the energy needed during high-demand periods.
- Safety and Reliability: Constructed with lithium iron phosphate (LFP) chemistry, which is cobalt-free, the battery is UL 9540A certified for safety and performance. This technology ensures longevity and minimizes risks associated with battery storage.
- Efficient Design: Featuring a compact design that requires less wall space, the IQ Battery 10C offers double the capacity of previous models. Its passive cooling system with no moving parts contributes to enhanced reliability.
- Flexible Installation: The system supports versatile installation options, including wall brackets and floor pedestal mounts. Thanks to its distributed architecture, even if one microinverter encounters an issue, power will continue to flow seamlessly, keeping your home powered and essentials protected.
- Modular Architecture: The IQ Battery 10C offers easy scalability, allowing homeowners to start with a single unit and expand their energy storage capacity as their needs evolve.
- User-Friendly: Homeowners can monitor and control their energy usage remotely via the Enphase App, while field-replaceable components make maintenance straightforward.
Specifications:
– Power Rating: 7.08 kVA
– Energy Capacity: 10 kWh
– DC Round-Trip Efficiency: 96%
– AC Round-Trip Efficiency: 90%
– Depth: 14.4 inches
– Width: 28 inches
– Height: 24.5 inches
– Total Weight: 317 lbs (144 kg)
– Lifting Weight: 126 lbs (57 kg)
What’s Included:
– 2x 5kWh IQ battery units
– 1x IQ Battery 10C battery cover
– 1x Wall mounting bracket
Battery
| Total capacity | 10.0 kWh |
| Usable capacity | 10.0 kWh |
| DC round-trip efficiency | 96% |
| Nominal DC voltage | 76.8 V |
| Maximum DC voltage | 86.4 V |
| Ambient operating temperature range (charging) | -4°F to 122°F) (-20°C to 50°C) non-condensing |
| Ambient operating temperature range (discharging) | -4°F to 131°F (-20°C to 55°C) non-condensing |
| Optimum operating temperature range | 32°F to 86°F (0°C to 30°C) |
| Chemistry | Lithium iron phosphate (LFP) |
Mechanical
| Dimensions | 24.5″ x 28″ x 14.4″ 621 mm × 708 mm × 362 |
| Maximum Lifting Weight | 125 lbs |
| Installed Weight | 317 lbs |
| Enclosure | Outdoor – NEMA 3R |
| IQ8D-BAT Microinverter enclosure | NEMA type 6 |
| Cooling | Natural convection |
| Altitude | Up to 3,000 meters (9,842 feet) |
| Mounting | Wall-mount or pedestal-mount (sold separately) |
Features and Compliance
| Compatibility | Compatible with IQ and M Series Microinverters, IQ Meter Collar, IQ Combiner 6C, and IQ Gateway for grid-tied and backup operations. |
| Communication | Wired control communication |
| Services | Backup, Self-Consumption, TOU, and NEM Integrity |
| Monitoring | Enphase Installer Platform and Enphase App monitoring options; API integration |
| Compliance (pending) | CA Rule 21 (UL 1741-SA), IEEE 1547:2018 (UL 1741-SB, 3rd Ed.) CAN/CSA C22.2 No. 107.1-16 UL 954013, UL 9540A14, UN 38.3, UL 1998, UL 991, NEMA Type 3R, AC156 EMI: 47 CFR, Part 15, Class B, ICES 003 Cell module: UL 1973, UN 38.3 Inverters: UL 62109‑1, IEC 62109‑2 |
