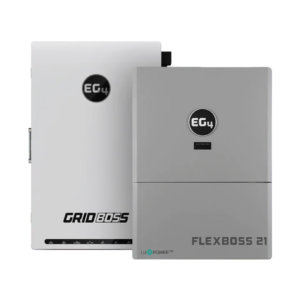

EG4 System Management Kit (Inverter & MID)
Transform your power system with the EG4 System Management Kit, featuring the FlexBOSS21 Hybrid Inverter and GridBOSS MID. This powerhouse combination delivers unmatched performance, efficiency, and simplicity for both on-grid and off-grid applications, tailored for residential and commercial systems of any size.
Why this product is a must-have:
The EG4 System Management Kit is essential for maximizing energy independence and reliability, offering seamless integration of solar energy systems while reducing installation complexity and costs.
Standout Qualities:
- High PV Input Capacity: FlexBOSS21 boasts a groundbreaking 21kW PV input capacity with 3 MPPTs, supporting multi-orientation solar arrays.
- Smart Load Management: Advanced features allow for optimized energy flow and responsive operation, ensuring safety and scalability.
- Real-Time Monitoring: In-depth remote monitoring via updated EG4 software provides unparalleled control and visibility over your power system.
- Cost-Effective Design: The GridBOSS MID consolidates multiple components into one unit, reducing installation costs and complexity.
- Reliable Performance: Capable of handling whole-home backup power, micro-grids, and sophisticated solar energy storage solutions, ensuring your energy needs are met.

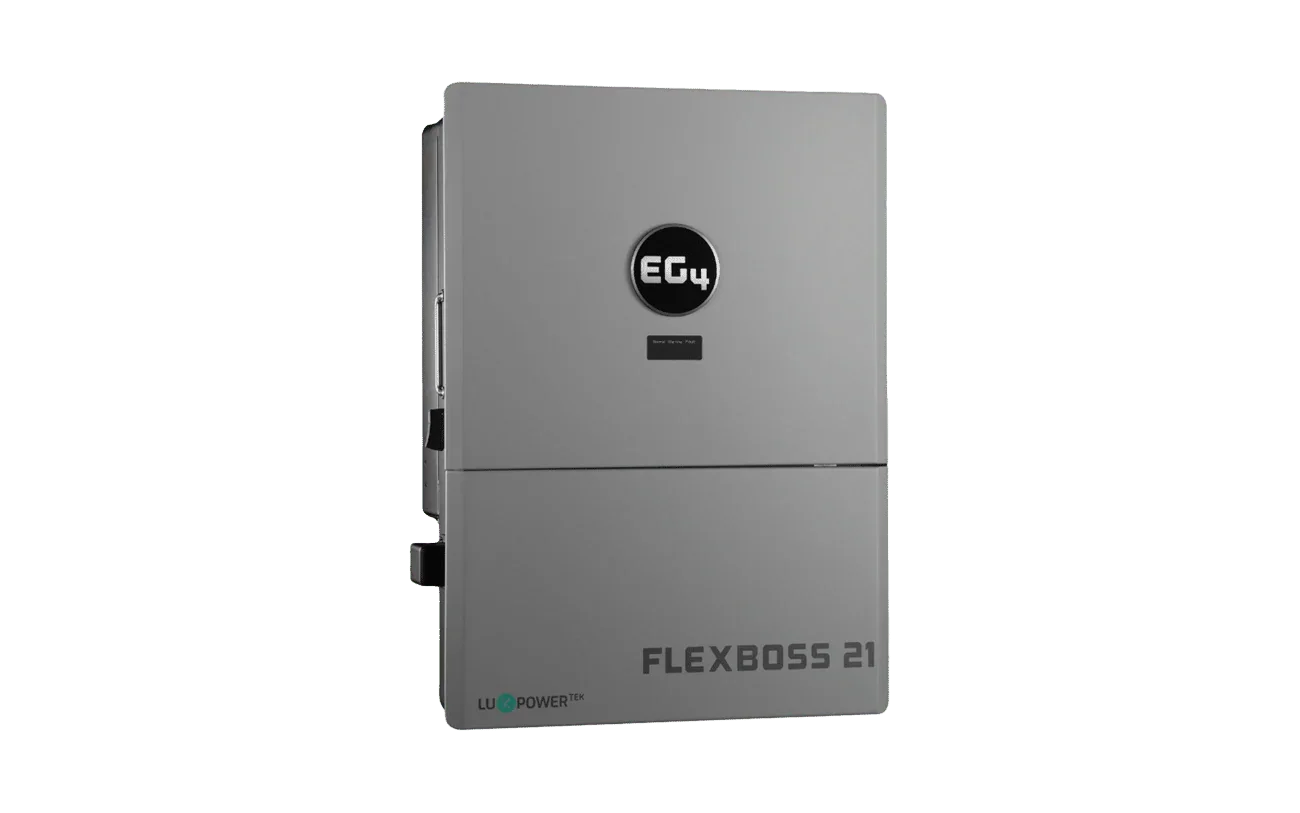

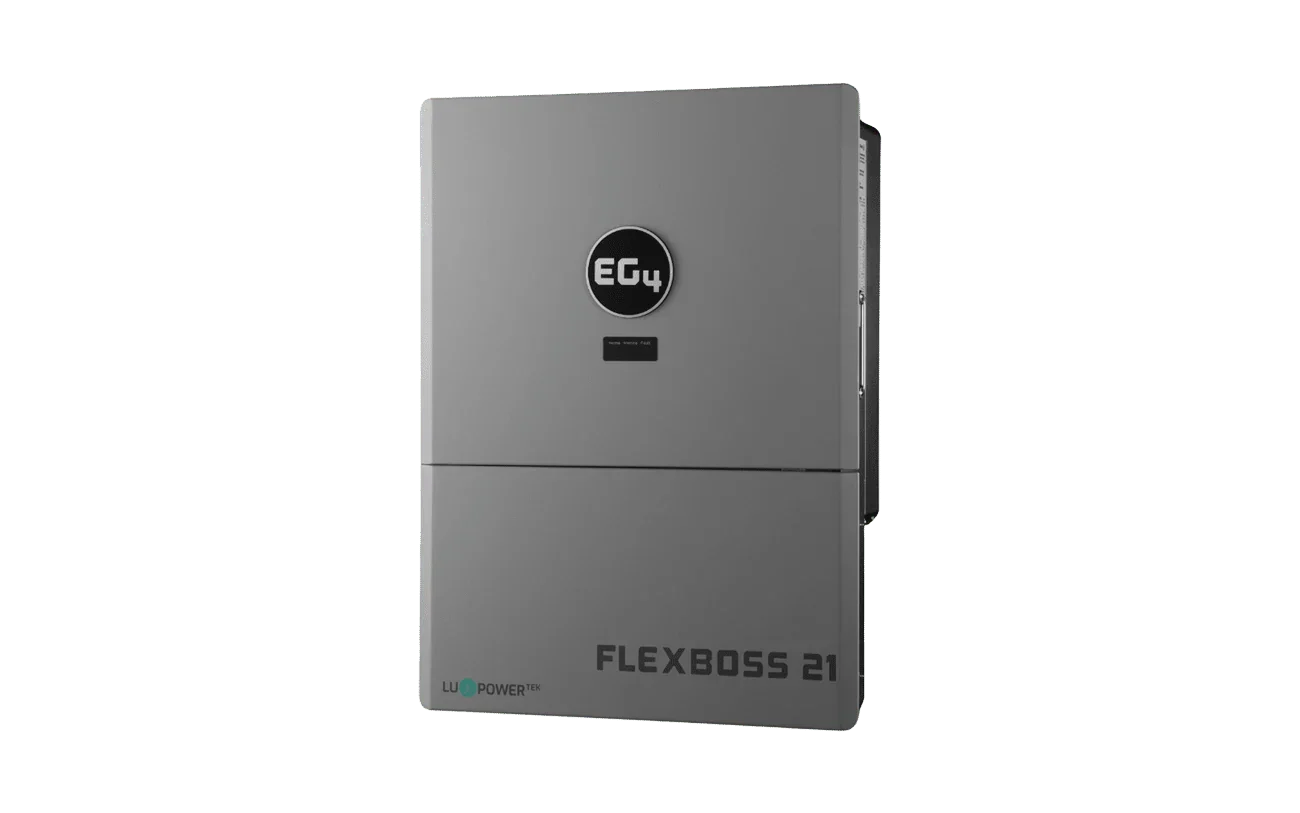

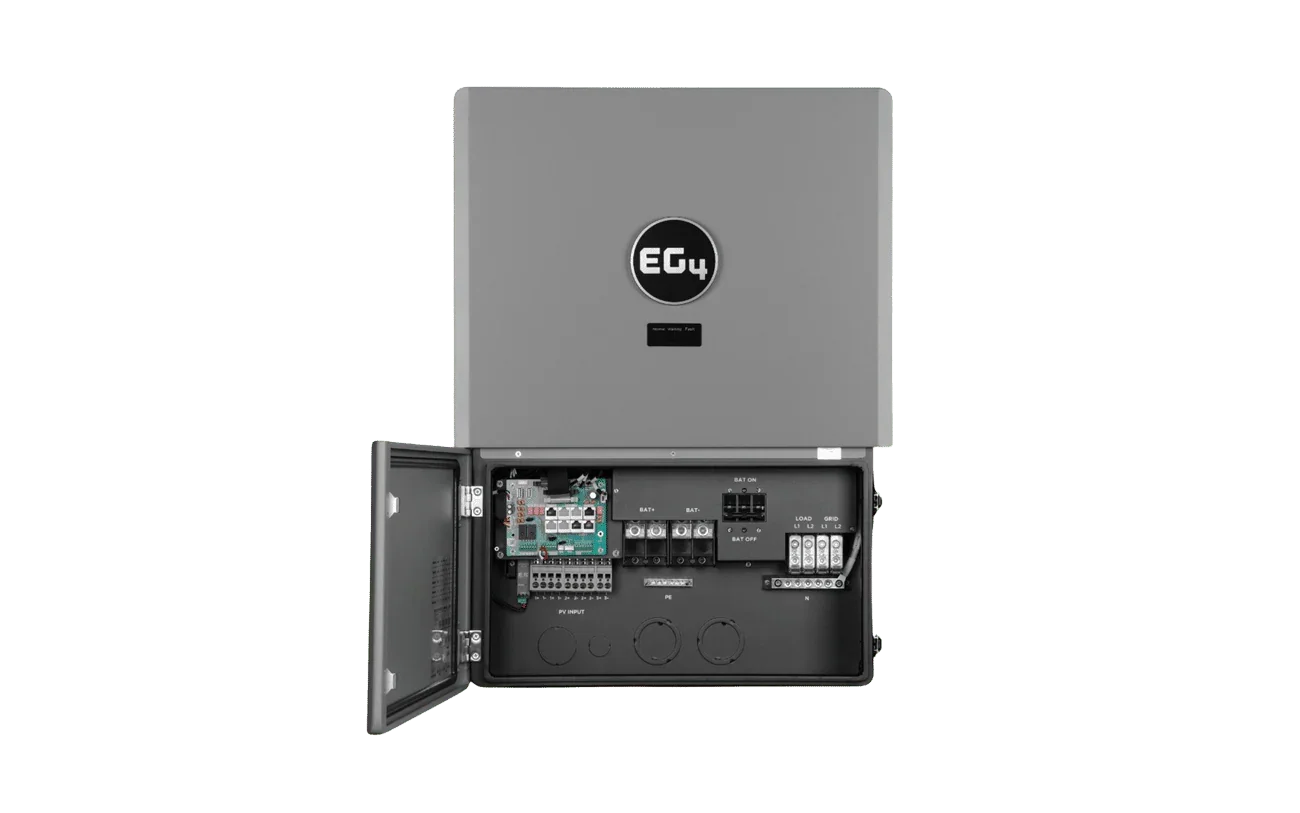

Tech Specs | FlexBOSS21
- SKU: INV027
- Max. AC Input Power: 12000W
- Output Power (with PV): 16000W @ 240V
- Max. PV Input: 25000W
- Efficiency: 94 – 97%
- Operating Environment: -13ºF to 140ºF
- Weight: 88 lbs (40 kg)
| Spec Sheet: | Click Here |
| User Manual: | Click Here |
| UL1741 Certificate: | Click Here |

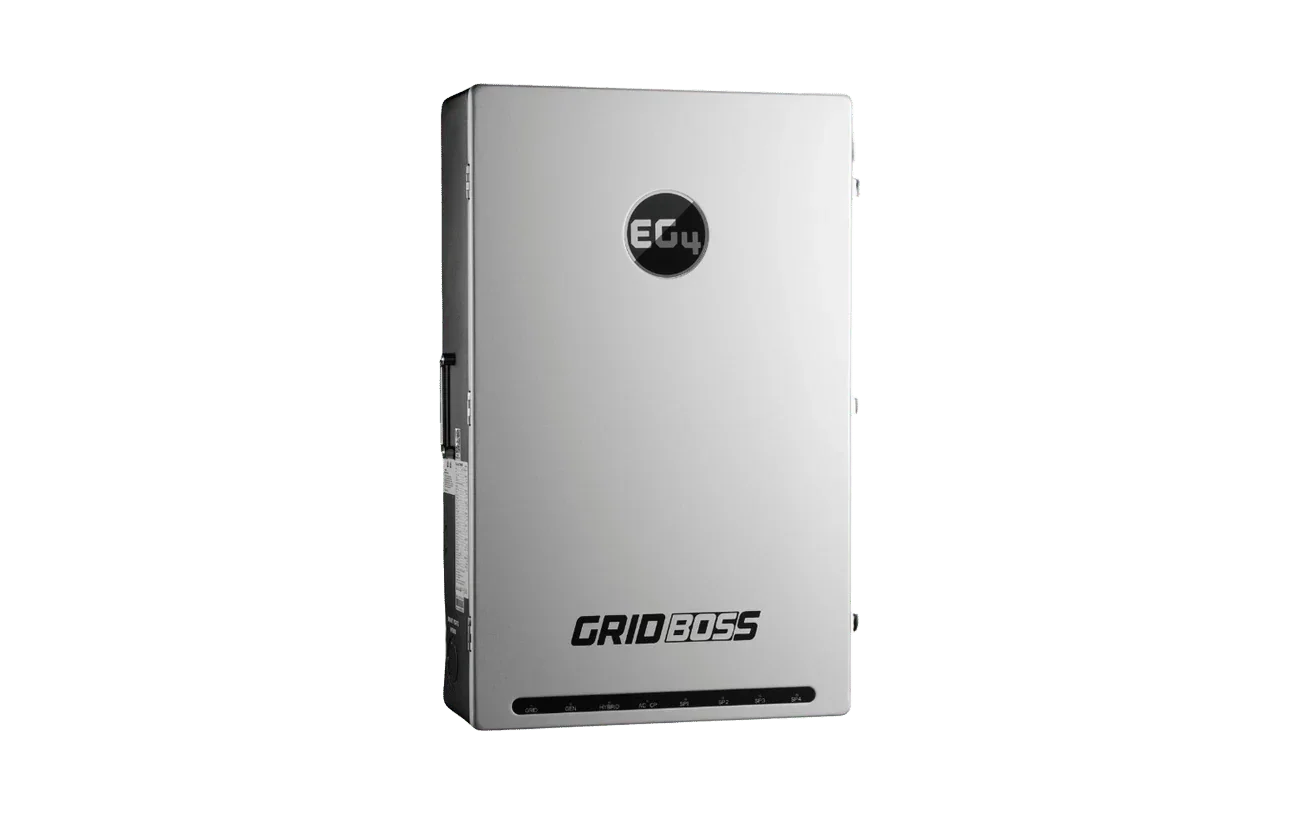

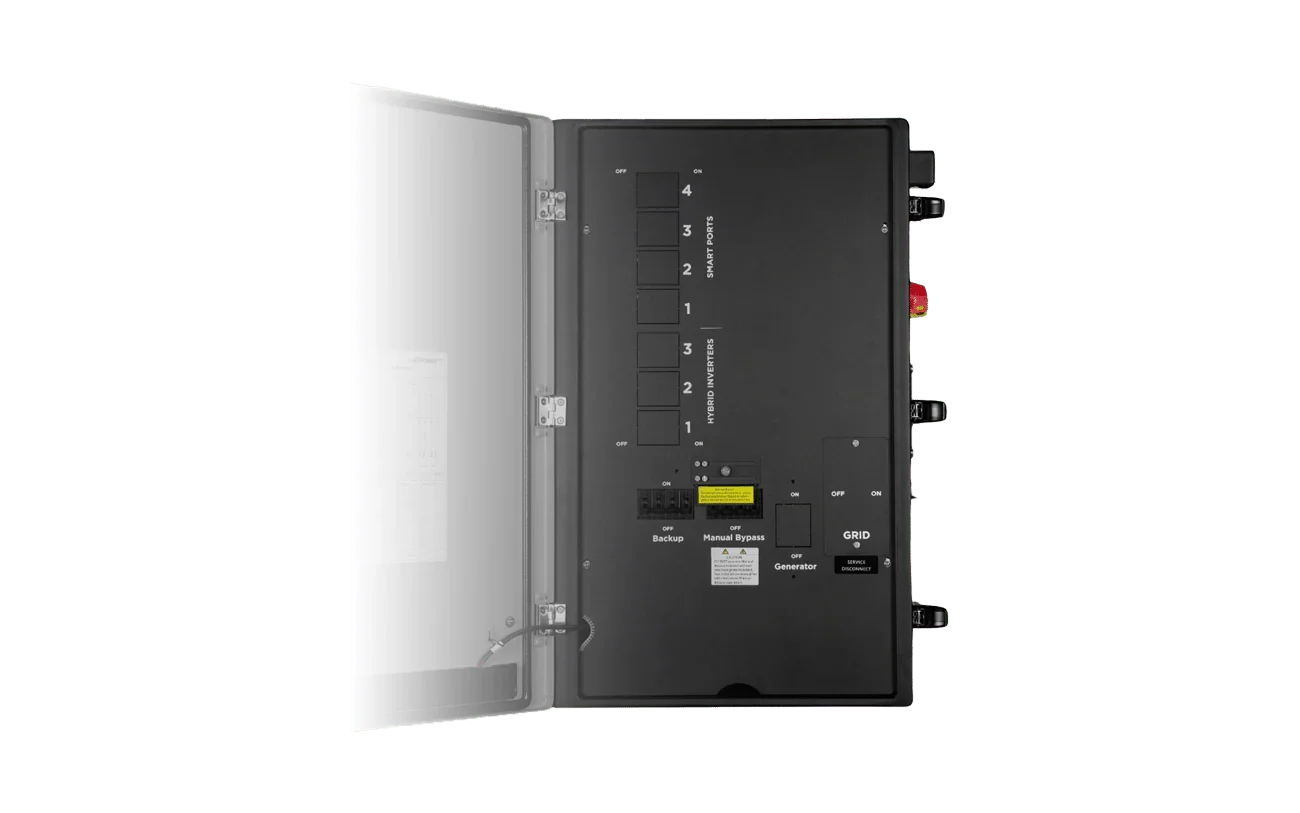

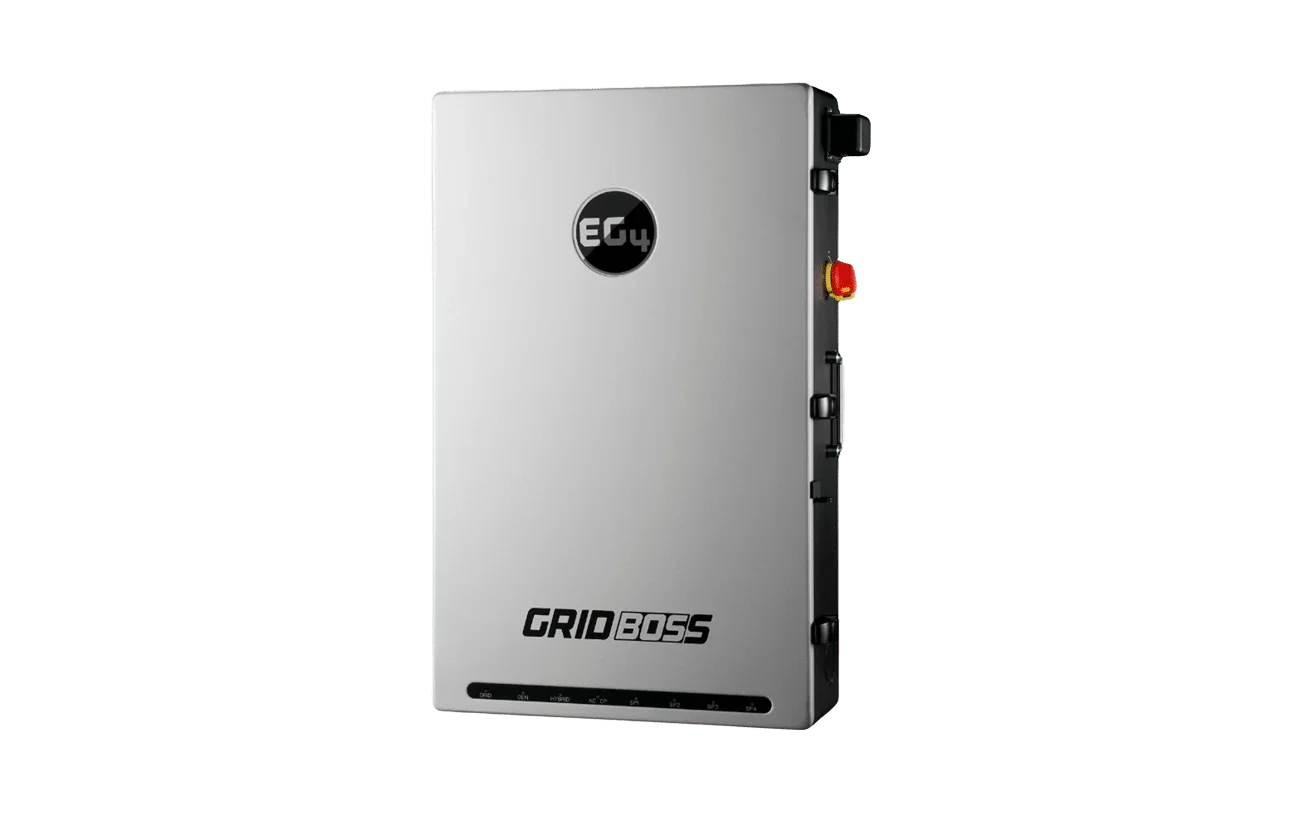

Tech Specs | GridBOSS MID
- SKU: CNT103
- Max. Continuous Current: 200A
- Supported Inverters: EG4 12kPV, 18kPV, & FlexBOSS21
- Operating Temperature Range: -40ºF to 140ºF
- Weight: 55 lbs (25 kg)
Spec Sheet: Click Here
User Manual: Click Here
System Wiring Diagrams: Click Here
What’s Included:
-
1 x EG4 FlexBOSS21 Hybrid Inverter
-
1 x EG4 GridBOSS
-
User Manuals & Any Related Certifications
-
Fast, Reliable Shipping
-
Lifetime Customer Support
Product Specifications:
| EG4 FlexBoss Specifications | |
|---|---|
| Compatible Battery Types | Lead-acid/ Lithium |
| Max. Charge/Discharge Power | 12000W |
| Nominal Voltage | 48VDC |
| Voltage Range | 40 – 60 VDC |
| Recommended Battery Capacity Per Inverter | >300Ah |
| Max Units in Parallel | 16 |
| Product Dimensions (HxWxD) | 30.43 × 22.28 × 11.22 in. (750 × 520 × 285 mm) |
| Unit Weight | 88 lbs. (52 kg) |
| Design Topology | High Frequency – Transformerless |
| Relative Humidity | 0 – 100% |
| Operating Altitude | <6561 ft (<2000 m) |
| Operating Ambient Temperature Range | -13° – 140°F (-25° – 60°C) |
| Storage Ambient Temperature Range | -13° – 140°F (-25° – 60°C) |
| Noise Emission (Typical) | <50dB @ 3 ft |
| Communication Interface | RS485/Wi-Fi/CAN |
| Standard Warranty | 10-year standard warranty* |
| Outdoor Rating | NEMA 4X |
| EG4 GridBOSS Specifications | |
|---|---|
| Communication Interface | RS485/Wi-Fi/CAN |
| Internal Bus Rating | 350A |
| Internal Fuse Rating | 315A |
| Operating Altitude | <6561 ft (<2000 m) |
| Relative Humidity | 0 – 100% |
| Outdoor Rating | NEMA 3R |
| Operating Ambient Temperature Range | -40°F – 140°F (-40°C – 60°C) |
| Product Dimensions (HxWxD) | 31.5×19.7×7 in (800×500×178 mm) |
| Unit Weight | 55 lbs. (25 kg) |
| Standard Warranty | 10-year standard warranty |
