Deepthink S3 Tri-Sensor with Thermal Imaging UAV Camera (Compatible with DJI M300/M350 RTK)

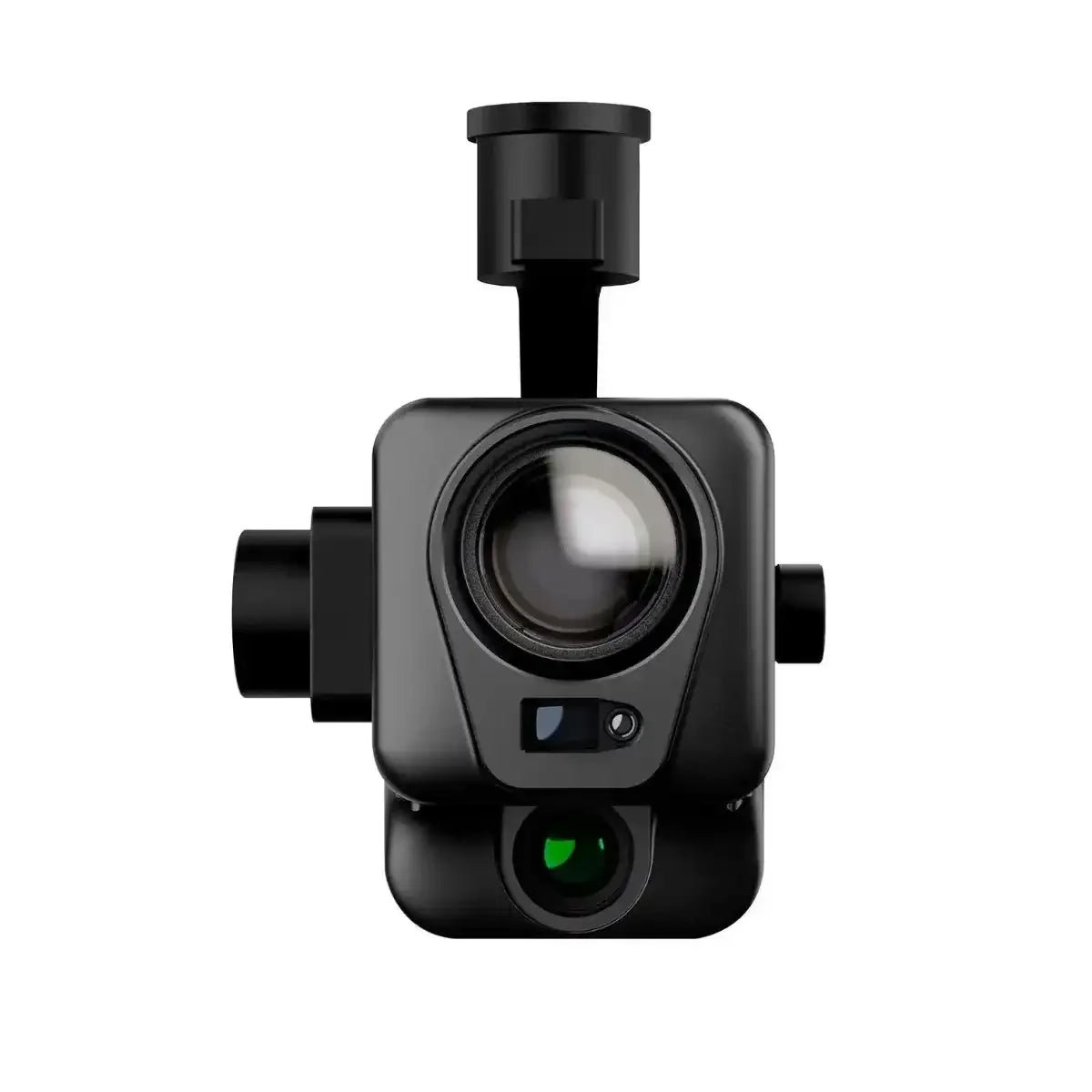

Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera

The Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera is a cutting-edge AI-powered payload engineered for mission-critical operations in ultra-low-light environments. Designed specifically for DJI Matrice 300 RTK and DJI Matrice 350 RTK drones, the S3 combines a high-performance night vision camera, thermal imaging sensor, and laser rangefinder into a single intelligent aerial solution.

Powered by Deepthink’s proprietary AI-ISP imaging technology, the S3 delivers exceptional full-color imaging in lighting conditions as low as 0.0001 lux. This advanced capability makes it an ideal tool for public safety, firefighting, search and rescue, law enforcement, critical infrastructure inspection, oil and gas operations, and aerial surveying missions where visibility is limited.

Its rugged, low-drag aluminum alloy housing enhances heat dissipation while minimizing wind resistance, ensuring dependable performance in demanding environments.

Features

• Designed for DJI Matrice 300 RTK and Matrice 350 RTK drones
• AI-powered tri-sensor payload combining night vision, thermal imaging, and laser rangefinding
• Proprietary AI-ISP algorithm for enhanced low-light imaging
• Full-color imaging at illumination levels as low as 0.0001 lux
• 30x optical zoom and 160x hybrid zoom
• Integrated laser rangefinder with up to 1,500-meter measurement range
• High-resolution thermal imaging sensor
• Real-time target positioning and altitude display
• Rugged aluminum alloy housing for efficient heat dissipation
• Low wind resistance aerodynamic design
• Ideal for public safety, inspection, rescue, and industrial operations

Advanced Night Vision Imaging

The S3 is equipped with a powerful night vision zoom camera featuring a 4MP 1/1.8-inch Super Starlight CMOS sensor. Combined with Deepthink’s AI-ISP image processing technology, the camera delivers remarkable clarity and color reproduction in near-total darkness.

Night Vision Camera Specifications

• Sensor: 1/1.8″ Super Starlight CMOS
• Resolution: 4MP
• Optical Zoom: 30x
• Integrated Zoom: 160x
• Minimum Illumination: 0.0001 Lux
• Full-Color HD Imaging in Ultra-Low Light Conditions

This capability allows operators to identify people, vehicles, infrastructure, and environmental hazards with exceptional detail during nighttime operations.

Integrated Laser Rangefinder

The built-in laser rangefinder provides accurate distance measurements and target positioning data, enhancing situational awareness during complex aerial missions.

Laser Rangefinder Specifications

• Measurement Range: 5 to 1,500 meters
• Wavelength: 905nm
• Accuracy: ±1 meter
• Real-Time Altitude Display
• Target Distance Measurement
• Enhanced Navigation and Positioning

The rangefinder is particularly valuable for search and rescue, firefighting, surveillance, and infrastructure inspections.

High-Performance Thermal Imaging

The S3 incorporates a professional-grade thermal imaging camera utilizing an uncooled Vanadium Oxide (VOx) detector for reliable thermal detection and temperature measurement.

Thermal Imaging Specifications

• Sensor Type: Uncooled VOx (Vanadium Oxide)
• Resolution: 640 × 512
• Diagonal Field of View (DFOV): 45.76°
• Temperature Measurement Range:
  • -20°C to 150°C
  • 0°C to 550°C
• High-Sensitivity Thermal Detection
• Real-Time Thermal Monitoring

The thermal sensor enables rapid identification of heat sources, hotspots, missing persons, equipment failures, and fire risks, even in complete darkness or through smoke and haze.

Built for Demanding Missions

The S3’s lightweight, low-drag design minimizes aerodynamic impact on the aircraft while maximizing operational efficiency. Its high-density aluminum alloy construction provides excellent durability and thermal management for extended mission performance.

Ideal Applications

• Firefighting and Emergency Response
• Search and Rescue Operations
• Law Enforcement and Public Safety
• Critical Infrastructure Inspection
• Oil and Gas Facility Monitoring
• Utility and Powerline Inspection
• Industrial Asset Inspection
• Environmental Monitoring
• Nighttime Surveillance
• Aerial Surveying and Mapping

Key Advantages

• True-color night vision in near-total darkness
• Long-range target identification and tracking
• Accurate laser distance measurement
• High-resolution thermal imaging capabilities
• Enhanced situational awareness through three integrated sensing technologies
• Reliable performance in challenging environmental conditions

The Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera delivers a powerful combination of advanced night vision, thermal detection, and precision ranging capabilities, making it an exceptional payload solution for professional drone operators conducting critical missions day or night.
