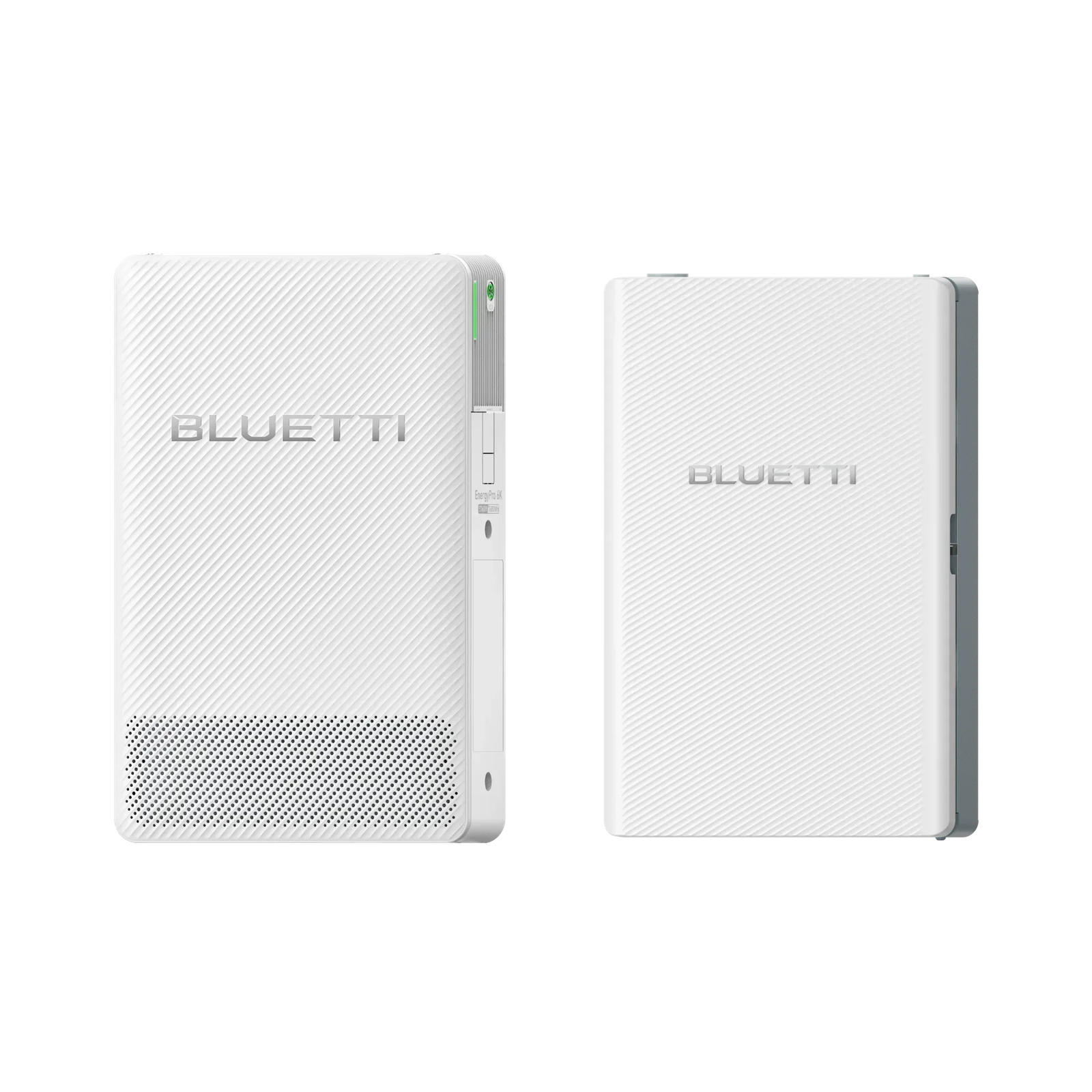

Bluetti EP6K EnergyPro 6K Smart Home Backup+ AT1 Parallel Connection Kit

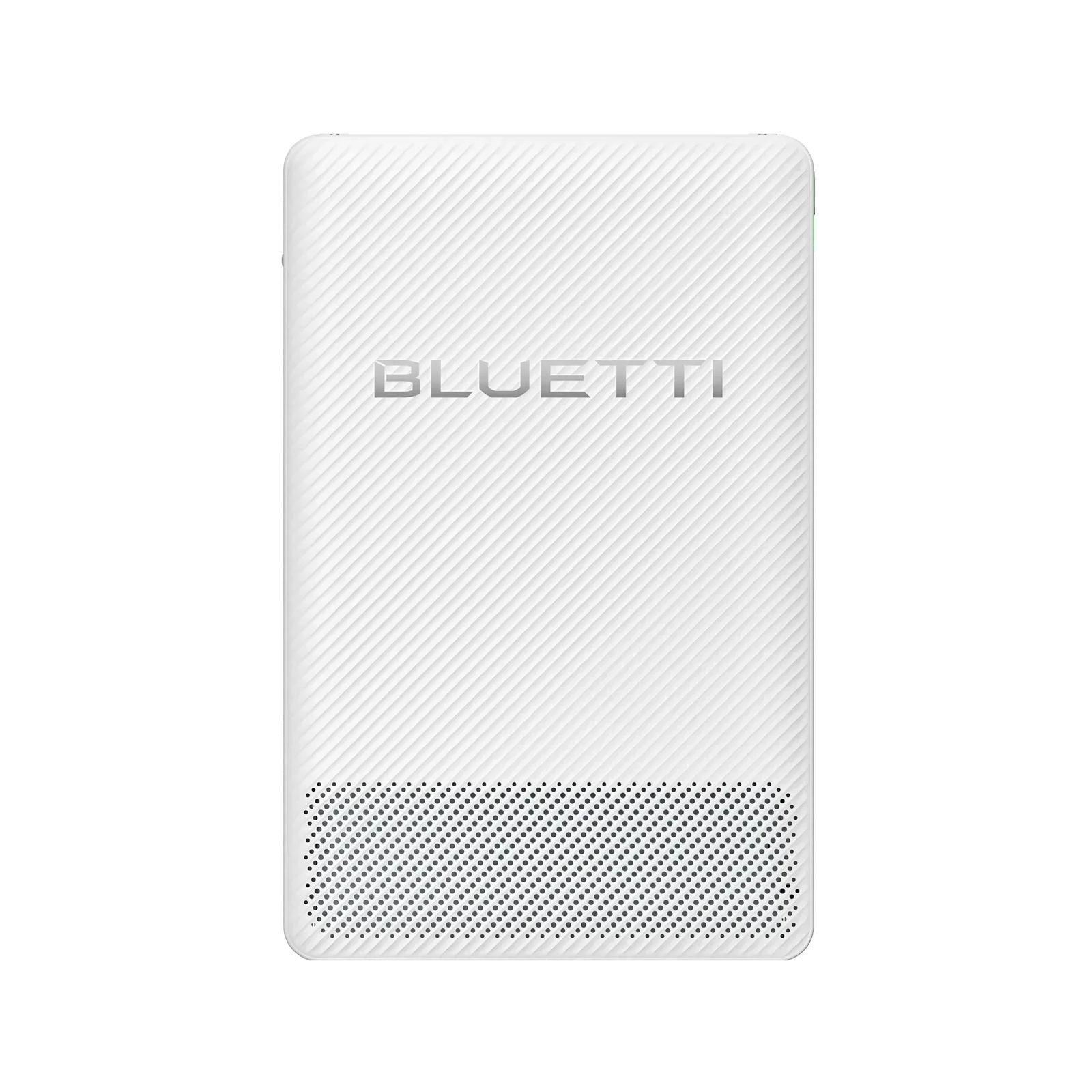

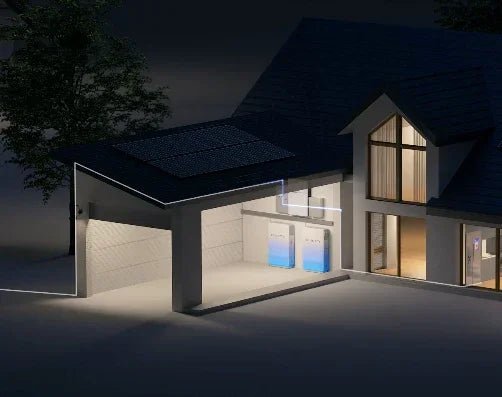

The BLUETTI EnergyPro 6K is a whole-home LFP battery + inverter that AC-couples to existing rooftop PV and parallels via the AT1 smart distribution panel. Each EP6K provides 5.76 kW backup output and 7.68 kWh usable storage (NEMA 4X/IP65, passive cooling); with the AT1 Parallel Kit you can stack up to five units for ~28.8 kW/38.4 kWh.
Key Benefits
Parallel Power & Capacity: AT1 Parallel Connection enables multi-unit EP6K stacks—scale from one unit to as many as five for larger homes.
Drop-in for Existing PV: AC-coupled design works with common rooftop inverters to create an outage-proof microgrid.
All-in-One Backup Hub: AT1 panel manages grid, generator, EV/vehicle power, PV microinverters, and smart loads with NEMA 3R construction.
High Efficiency, Quiet: 98.4% max / 97.5% CEC, passive cooling ≤31 dB.
Special Technology
AT1 Smart Distribution: Revenue-grade metering & multi-port switching (grid/backup/ESS/generator/solar/smart load) with Wi-Fi/Ethernet/4G/RS485 for control & monitoring.
EV Integration: When paired with AT1, system roadmap includes bidirectional EV energy features for extended outages.
Warranty
EP6K & AT1: 10-Year Manufacturer Warranty.
Best Uses
Whole-Home Backup & TOU Shifting: Critical loads today; expand to multi-unit stack as needs grow.
PV Retrofits: Keep your existing inverter—EP6K AC-couples for seamless backup.
Specifications Table
| Specification | Data |
|---|---|
| System | EnergyPro 6K (EP6K) + AT1 Parallel Connection Kit |
| Per-Unit Backup Output (EP6K) | 5.76 kW @ 120/240 Vac (60 Hz) · 24 A; overload 10.4 kVA (10 s) / 6.336 kVA (10 min). |
| Per-Unit Usable Energy (Battery) | 7.68 kWh LFP; DoD 90%; 63–87 V operating. |
| Scalability (with AT1) | Up to 5× EP6K in parallel → ~28.8 kW / 38.4 kWh. |
| Protection / Enclosure | EP6K: NEMA 4X / IP65 (outdoor rated) · Passive cooling ≤31 dB. |
| Dimensions / Weight (EP6K) | 23.6 × 7.3 × 36.8 in 220.46 lb |
| AT1 Panel Ratings | Grid 160 A cont (200 A max); Backup 160 A (200 A max); ESS 2×80 A (2×100 A max); Generator 64 A (80 A max); Solar (microinverters) 64 A (80 A max); Smart Load 64 A (80 A max). NEMA 3R. |
| AT1 Dimensions / Weight | 35.8 × 23.6 × 6.44 in 56.4 lb |
| Communications | Wi-Fi / Bluetooth (EP6K); AT1 adds Ethernet / 4G / RS485. : |
| Operating Temperature | EP6K & AT1: −20 °C to +50 °C (−4 °F to +122 °F). |
| Self-Consumption (EP6K) | ~28 W. |
| Compliance (examples) | UL 1741 SB / IEEE 1547.1:2020; AFCI, RSD/PVRSS when used within BLUETTI ecosystem (see datasheet). |
| Parallel Connection Kit | AT1 smart distribution panel + EP6K parallel/data cabling (model/package availability varies by region). |
| Warranty | 10 Years (EP6K & AT1). |
