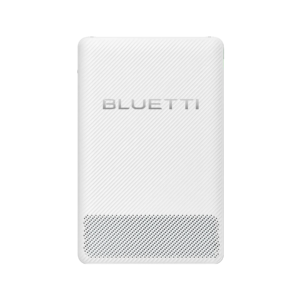

Bluetti EP6K EnergyPro 6K Smart Home Backup
The BLUETTI EP6K combines a 5.76 kW split-phase inverter with an integrated LFP battery (6.91 kWh usable) and smart distribution via the AT1 panel. Engineered for whole-home or partial backup, it supports parallel expansion (up to 5 units), outdoor-rated NEMA 4X protection, and app-based control for modes like Self-Consumption, TOU, and Backup.
Key Benefits
Whole-Home Ready: 120/240 Vac split-phase output with 5,760 W continuous and 10,400 VA surge (10 s) for robust backup.
Integrated Storage: 7.68 kWh rated / 6.912 kWh usable LFP pack with smart BMS and rapid charge/discharge management.
Outdoor-Rated & Quiet: NEMA 4X / IP65 enclosure with natural convection cooling (<31 dB).
Scalable: Parallel up to 5 units to increase power and capacity as needs grow.
Efficient Standby: Ultra-low self-consumption (8 W) to minimize idle losses.
Special Technology
AT1 Smart Distribution: Built-in EMS with smart circuits, fast transfer, and coordinated grid/generator/solar control.
Extreme Weather Alerts: Auto-switches to backup mode based on local alerts to pre-charge and prepare.
Automatic Grid Switching & Black Start: Seamless grid/off-grid transitions and app-driven recovery from deep discharge.
Warranty
10-Year Manufacturer Warranty.
Best Uses
Whole-Home or Partial Backup: Keep essential or entire home circuits powered during outages.
TOU Savings & Self-Consumption: Shift grid energy and store excess solar for nights/peaks.
Specifications Table
| Specification | Data |
|---|---|
| Model | EP6K (EnergyPro 6K) |
| Type | All-in-One Hybrid ESS (Inverter + LFP Battery + AT1 EMS) |
| AC Output (Nominal) | 5,760 W @ 120/240 Vac, 60 Hz |
| Surge / Overload | 10,400 VA (10 s); 6,336 VA (10 min) |
| Battery Chemistry | LiFePO4 (LFP) |
| Battery Capacity (Rated / Usable) | 7.68 kWh / 6.912 kWh |
| Battery Voltage | 76.8 Vdc (max charge 86.4 V; min discharge 60 V) |
| Max Charge / Discharge Current | 50 A / 100 A |
| Parallel Capability | Up to 5 units |
| Enclosure / Cooling / Noise | NEMA 4X (IP65) / Natural convection / <31 dB |
| Self-Consumption / No-Load Loss | 8 W / 28 W |
| Operating Temperature | −20°C to +50°C (output derates >45°C) |
| Dimensions (W × D × H) | 23.6 × 7.3 × 36.8 in |
| Weight | 220.46 lb |
| Protection & Compliance | UL 9540 / UL 1741 SB / IEEE 1547; NEMA 4X; FCC Part 15 Class B |
| Communications | CAN / RS485; LED indicators; app via EMS |
| Warranty | 10 Years |
