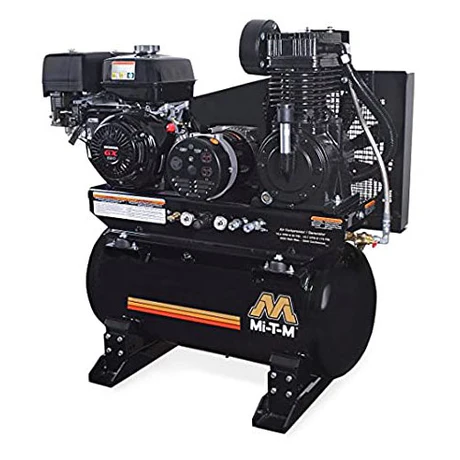

Two Stage Gasoline 30-Gallon Air Compressor/Generator/Welder Combo AGW-SM14-30M Description
Dependable high quality equipment is vital in every industry, so is working with equipment that can save both time and money. The combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations. Save room on your service truck with this versatile all-in-one solution.
Two Stage Gasoline 30-Gallon Air Compressor/Generator/Welder Combo AGW-SM14-30M Includes
- (1) Two Stage Gasoline 30-Gallon Compressor
- (2) 120V, 20A GFCI Duplex
- (1) 120V/240V, 20A Twist Lock
Two Stage Gasoline 30-Gallon Air Compressor/Generator/Welder Combo AGW-SM14-30M Features
- Splash lubricated
- Stainless-steel braided discharge hose
- Large canister intake filter
- Oil level sight indicator
- Brush-type 2 pole 120V/240V alternator
- Total harmonic distortion (THD) less than 6%
- 100% copper windings
- Amperage selection switch, 170A or 220A maximum
- Powder coated ASME coded receiver tanks
- 16-gauge powder coated belt guard
- Regulator and two gauges for tank and outlet pressure
- Manual drain valves for proper maintenance
- 16.5-inch fly wheel
- Equipped with 150-PSI maximum rated regulator
Two Stage Gasoline 30-Gallon Air Compressor/Generator/Welder Combo AGW-SM14-30M Specifications
| Rated Speed | 3600 RPM |
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI* | 15.7 |
| Compressor | Two Stage, Cast Iron |
| Tank Size | 30-Gallon Receiver Tank |
| Max. AC Output | 5000 watts |
| Rated AC Output | 4500 watts |
| Frequency/Voltage | 60Hz/120V/240V |
| Max. Amps (120V/240V) | 41.5/20.8 Off-Load |
| Cont. Amps (120V/240V) | 37.5/18.8 Off-Load |
| DC Voltage | 50-170A Working Range |
| Fuel Tank | 1.85 Gallon |
| Length | 46″ |
| Width | 22″ |
| Height | 47″ |
